特种电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 应用 | 成分 | 电阻 | 阻抗 | 容差 | 功率 (W) | 温度系数 | 工作温度 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAV-Z-R000035-V01-10.0RESISTOR - BUS BAR SHUNT WITH PI |
1,807 |
|
数据手册 |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 35 µOhms | - | ±10% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

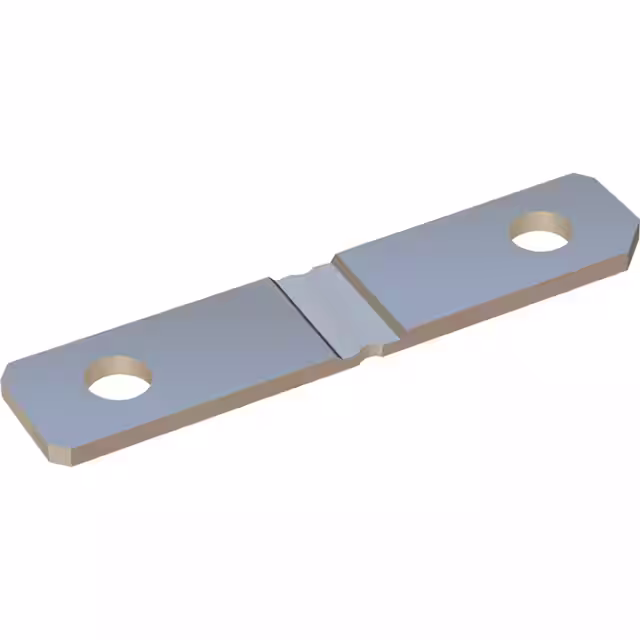

CSM2F-8518-L200J02SHUNTMETRIC 8518 L200 5% 50W TC5 |
2,057 |
|
数据手册 |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-8518-L200J00SHUNTMETRIC 8518 L200 5% 50W TC5 |
4,457 |
|
数据手册 |
CSM2F-8518 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
CSM2F-6918-L200J02SHUNTMETRIC 6918 L200 5% 50W TC5 |
2,211 |
|
数据手册 |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-6918-L200J00SHUNTMETRIC 6918 L200 5% 50W TC5 |
3,632 |
|
数据手册 |
CSM2F-6918 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 200 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-7036-L025J00SHUNTMETRIC 7036 L025 5% 36W TC5 |
100 |
|
数据手册 |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-8536-L025J02SHUNTMETRIC 8536 L025 5% 36W TC5 |
100 |
|
数据手册 |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-7036-L050J00SHUNTMETRIC 7036 L050 5% 36W TC5 |
2,958 |
|
数据手册 |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
WSBE8536L0500JKB250UOHMS 5% 50W SHUNT, BATTERY SP |
1,905 |
|
数据手册 |
WSBE | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 50W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
CSM2F-8536-L025J00SHUNTMETRIC 8536 L025 5% 36W TC5 |
4,310 |
|
数据手册 |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
BAX-Z-L005-01-5.0RESISTOR - BUS BAR SHUNT, 0.005, |
100 |
|
数据手册 |
BAX | Tray | Active | Shunt, Battery | - | - | 5 µOhms | - | ±5% | 50W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 64mm Pitch |
|
|
BAV-M-R00005-V01-5.0RESISTOR - BUS BAR SHUNT WITH PI |
1,624 |
|
数据手册 |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
KABR400 47R JMETAL CLAD BRAKING RESISTOR 400W |
4,404 |
|
数据手册 |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 47 Ohms | - | ±5% | 400W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
BAX-M-L020-01-5.0RESISTOR - BUS BAR SHUNT, 0.02, |
100 |
|
数据手册 |
BAX | Tray | Active | Shunt, Battery | - | - | 20 µOhms | - | ±5% | 40W | ±50ppm/°C | -40°C ~ 170°C | Shunt Fixture, 64mm Pitch |
|
CSM2F-7036-L100J00SHUNTMETRIC 7036 L100 5% 36W TC5 |
100 |
|
数据手册 |
CSM2F-7036 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
CSM2F-8536-L100J00SHUNTMETRIC 8536 L100 5% 36W TC5 |
100 |
|
数据手册 |
CSM2F-8536 | Bag | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | - | -40°C ~ 170°C | Surface Mount |
|
|
KABR800 100R JMETAL CLAD BRAKING RESISTOR 800W |
2,417 |
|
数据手册 |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 800W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR800 10R JMETAL CLAD BRAKING RESISTOR 800W |
2,554 |
|
数据手册 |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 10 Ohms | - | ±5% | 800W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR1000 220R JMETAL CLAD BRAKING RESISTOR 1000 |
4,636 |
|
数据手册 |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 220 Ohms | - | ±5% | 1000W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
ULV 500 100 J FL=500BRAKING RESISTOR - METAL CLAD, V |
1,898 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
