扬声器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS0361-L152SPEAKER 8OHM 2W TOP PORT 88DB Same Sky (Formerly CUI Devices) |
494 |
|
数据手册 |
CLS | Tray | Active | Magnetic | Low Profile | 360 Hz ~ 20 kHz | 450Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) |
|
GC0251KSPEAKER 8OHM 1W TOP PORT 81DB Same Sky (Formerly CUI Devices) |
3,209 |
|
数据手册 |
GC | Tray | Active | Magnetic | General Purpose | 592 Hz ~ 20 kHz | 740Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CDS-15158-SMT-TRSPEAKER 8OHM 300MW TOP PORT 87DB Same Sky (Formerly CUI Devices) |
6,590 |
|
数据手册 |
CDS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Sm2Co17 | - | Washable | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
CDS-40304-L1003SPEAKER 4OHM 2W TOP PORT 79DB Same Sky (Formerly CUI Devices) |
29,682 |
|
数据手册 |
CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-803118-28PMSPEAKER 8OHM 2W TOP PORT 100DB Same Sky (Formerly CUI Devices) |
549 |
|
数据手册 |
CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 3.150" L x 1.224" W (80.00mm x 31.10mm) |
|
CES-303206-240L40-67SPEAKER 4OHM 2W TOP PORT 101DB Same Sky (Formerly CUI Devices) |
501 |
|
数据手册 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.28 kHz ~ 20 kHz | 1.6kHz | 4 Ohms | 101.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|

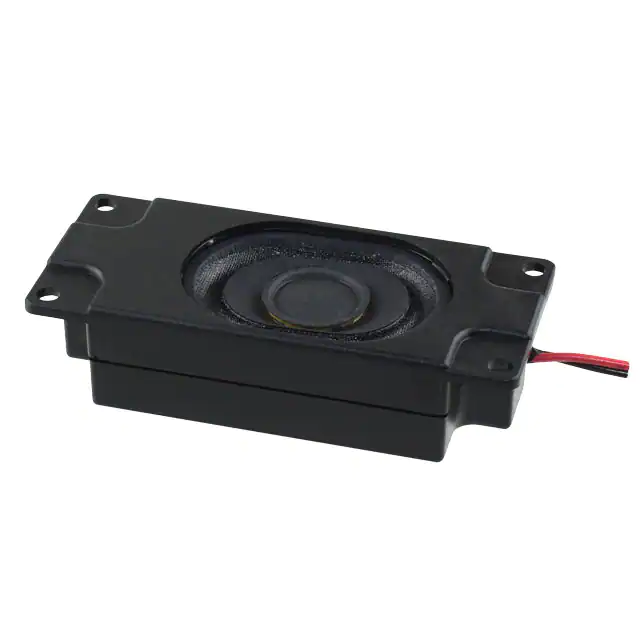

CES-703116-28PMSPEAKER 8OHM 2W TOP PORT 102DB Same Sky (Formerly CUI Devices) |
347 |
|
数据手册 |
CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 710 Hz ~ 20 kHz | 710Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.220" W (70.00mm x 31.00mm) |
|
CES-361811-18PM-67SPEAKER 8OHM 1W TOP PORT 89DB Same Sky (Formerly CUI Devices) |
297 |
|
数据手册 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.213" L x 0.622" W (30.80mm x 15.80mm) |
|

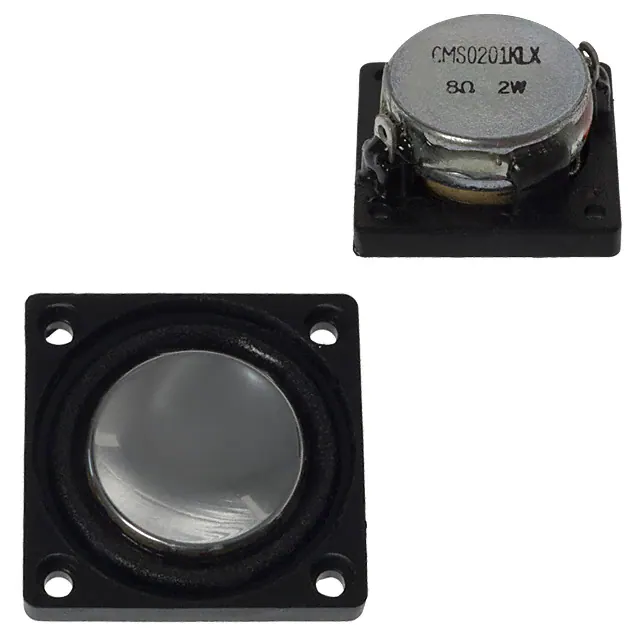

CMS0201KLXSPEAKER 8OHM 2W TOP PORT 80DB Same Sky (Formerly CUI Devices) |
285 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 424 Hz ~ 20 kHz | 530Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
CES-403015-24PM-67ENCLOSED SPEAKER, 2W, 4OHM Same Sky (Formerly CUI Devices) |
369 |
|
数据手册 |
CES | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 1kHz | 4 Ohms | 108.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Polyethylenimine (PEI) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
