电磁铁
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 占空比 | 额定电压 | 行程长度 | 功率（瓦特） | 直流电阻 (DCR) | 衬套螺纹 | 安装类型 | 端接样式 | 尺寸 / 尺寸 | 轴直径 | 轴详细信息 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1671-9F10019TUBULAR SOLE 150 PULL - 27 AWG ( Ledex Dormeyer Saia, a Division of Johnson Electric |
1,499 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 25VDC | 0.600" (15.24mm) | 17 W | 36.9Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.625" (15.88mm) | Clevis |
|
|
1671-9F30021TUBULAR SOLE 150 PULL - 24AWG (R Ledex Dormeyer Saia, a Division of Johnson Electric |
2,807 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 12.4VDC | 0.600" (15.24mm) | 17 W | 9.3Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.625" (15.88mm) | Clevis |
|
|
1671-9F60024TUBULAR SOLE 150 PUSH - 28 AWG ( Ledex Dormeyer Saia, a Division of Johnson Electric |
4,541 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 32VDC | 0.600" (15.24mm) | 7 W | 58.4Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.187" (4.75mm) | Round |
|
|
1671-9F20020TUBULAR SOLE 150 PUSH - 24 AWG ( Ledex Dormeyer Saia, a Division of Johnson Electric |
1,281 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 12.4VDC | 0.600" (15.24mm) | 17 W | 9.3Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.187" (4.75mm) | Round |
|
|
1671-9F40022TUBULAR SOLE 150 PUSH - 27 AWG ( Ledex Dormeyer Saia, a Division of Johnson Electric |
3,786 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 25VDC | 0.600" (15.24mm) | 17 W | 36.9Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.187" (4.75mm) | Round |
|
|
1671-9F50023TUBULAR SOLE 150 PULL - 28 AWG ( Ledex Dormeyer Saia, a Division of Johnson Electric |
2,086 |
|
数据手册 |
150 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 32VDC | 0.600" (15.24mm) | 7 W | 58.4Ohm | 1-27 UNF | Panel Mount | Wire Leads with Connector | 1.520" Dia x 2.560" L (38.6mm x 65.0mm) | 0.625" (15.88mm) | Clevis |
|

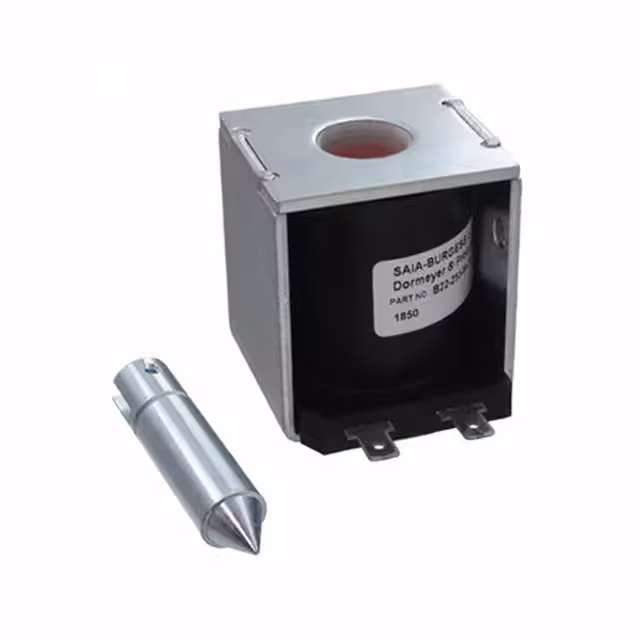

B22-255-M-36OPEN FRAME SOLENOID B22 - 12 VDC Ledex Dormeyer Saia, a Division of Johnson Electric |
4,941 |
|
数据手册 |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 12VDC | 0.500" (12.70mm) | 39.6 W | 3.6Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm) | 0.500" (12.70mm) | Clevis |
|

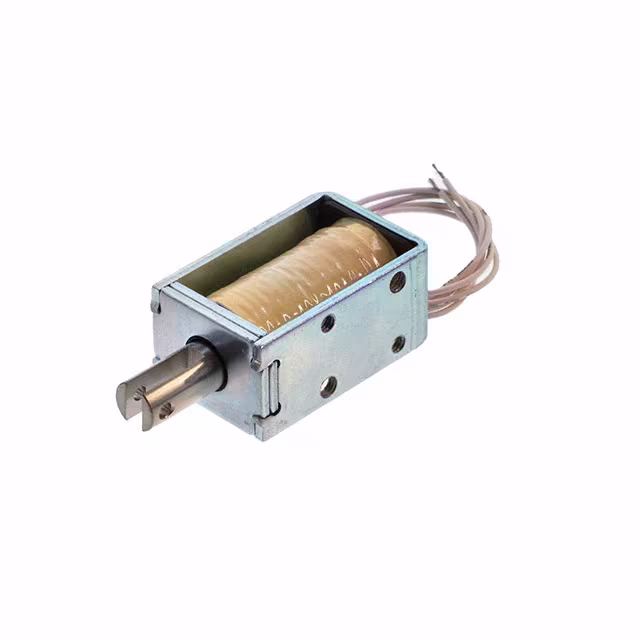

B11HD-254-B-3OPEN FRAME SOLENOID B11HD - 24 V Ledex Dormeyer Saia, a Division of Johnson Electric |
4,353 |
|
数据手册 |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | - | - | - | - | 16.7Ohm | - | Chassis Mount | Wire Leads | 2.000" L x 0.940" W x 1.250" H (50.80mm x 23.88mm x 31.75mm) | 0.437" (11.10mm) | Clevis |
|
|
B11HD-253-B-3OPEN FRAME SOLENOID B11HD - 24 V Ledex Dormeyer Saia, a Division of Johnson Electric |
1,061 |
|
数据手册 |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | Continuous | 24VDC | 0.625" (15.88mm) | 8.6 W | 67Ohm | - | Chassis Mount | Wire Leads | 2.000" L x 0.940" W x 1.250" H (50.80mm x 23.88mm x 31.75mm) | 0.437" (11.10mm) | Clevis |
|
B12-254-B-3OPEN FRAME SOLENOID B12 - 12 VDC Ledex Dormeyer Saia, a Division of Johnson Electric |
2,928 |
|
数据手册 |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | - | - | - | - | 110.8Ohm | - | Chassis Mount | Wire Leads | 0.630" L x 0.320" W x 0.400" H (16.00mm x 8.13mm x 10.16mm) | 0.157" (4.00mm) | Round |
