上传BOM单
焊接模板、模版
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0238-SHTQFP-64 (0.4 MM PITCH 7 X 7 MM |
2,732 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | HTQFP | 64 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Stainless Steel |
|
|
DC0805-SDISCRETE 0805 STAINLESS STEEL ST |
4,673 |
|
数据手册 |
Proto-Advantage DC | Bulk | Active | - | 2 | 0.079" (2.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
ST0001-SSMD SOLDERING PRACTICE KIT STENC |
4,131 |
|
数据手册 |
Proto-Advantage ST | Bulk | Active | - | - | - | 2.000" L x 2.000" W (50.80mm x 50.80mm) | - | - | Stainless Steel |
|
|
GEN-DR040-P40-SGENERIC DUAL ROW 0.4MM PITCH 40- |
2,169 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.016" (0.40mm) | - | - | - | Stainless Steel |
|
|
GEN-DR045-P40-SGENERIC DUAL ROW 0.45MM PITCH 40 |
3,826 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.018" (0.45mm) | - | - | - | Stainless Steel |
|
|
GEN-DR050-P40-SGENERIC DUAL ROW 0.5MM PITCH 40- |
3,624 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.020" (0.50mm) | - | - | - | Stainless Steel |
|
|
GEN-DR065-P40-SGENERIC DUAL ROW 0.65MM PITCH 40 |
1,643 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.026" (0.65mm) | - | - | - | Stainless Steel |
|
|
GEN-DR070-P40-SGENERIC DUAL ROW 0.7MM PITCH 40- |
4,343 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.028" (0.70mm) | - | - | - | Stainless Steel |
|

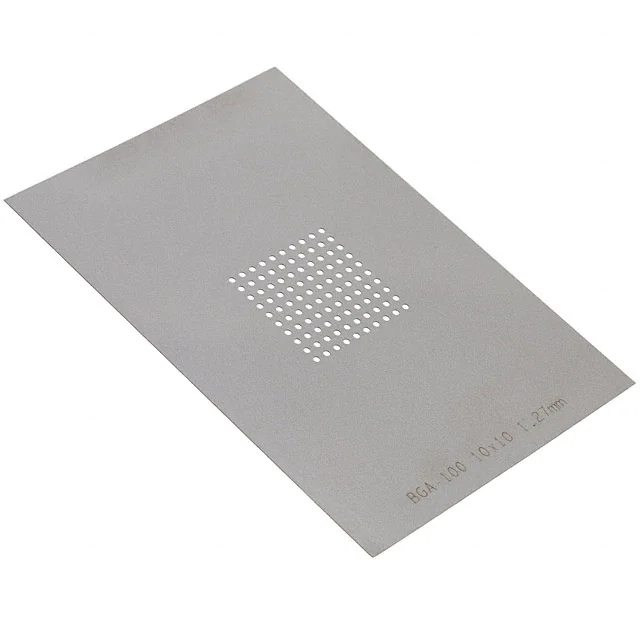

BGA0007-SSTENCIL BGA-100 1.27MM |
3,788 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 100 | 0.050" (1.27mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
BGA0011-SBGA-25 STENCIL |
4,912 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 25 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

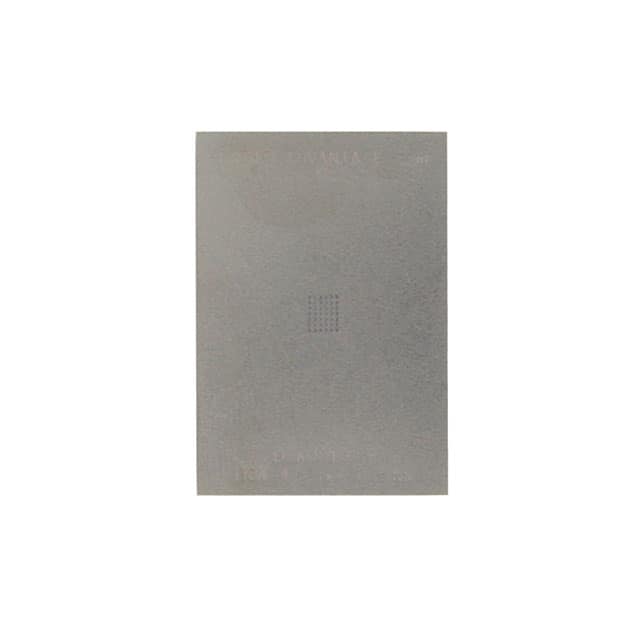

BGA0010-SBGA-42 STENCIL |
4,197 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 42 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0014-SBGA-54 STENCIL |
1,249 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 54 | 0.029" (0.75mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

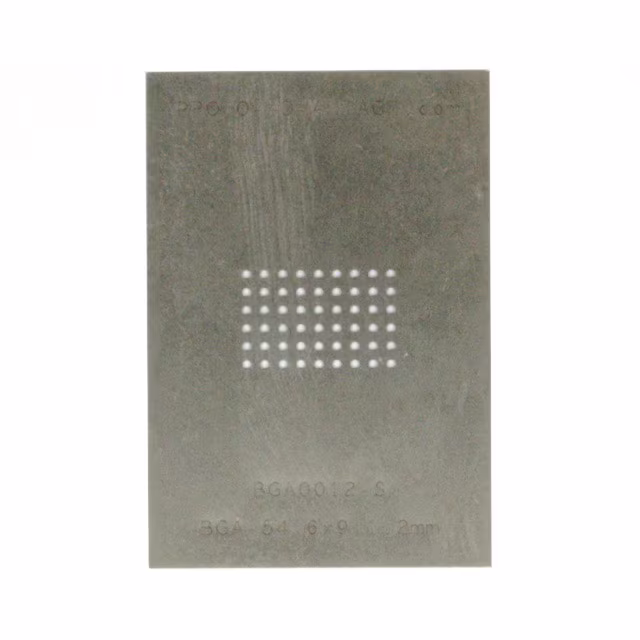

BGA0012-SBGA-54 (1.2MM PITCH) STENCIL |
4,655 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 54 | 0.047" (1.20mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
BGA0015-SBGA-100 (0.65MM PITCH) STENCIL |
2,529 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 100 | 0.026" (0.65mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
BGA0016-SBGA-25 (0.4MM PITCH) STENCIL |
1,679 |
|
数据手册 |
Proto-Advantage BGA | Bulk | Active | BGA | 25 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
GEN-DR080-P40-SGENERIC DUAL ROW 0.8MM PITCH 40- |
3,809 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.031" (0.80mm) | - | - | - | Stainless Steel |
|
|
GEN-DR100-P40-SGENERIC DUAL ROW 1.0MM PITCH 40- |
1,009 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.039" (1.00mm) | - | - | - | Stainless Steel |
|
|
GEN-DR127-P40-SGENERIC DUAL ROW 1.27MM PITCH 40 |
4,617 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.050" (1.27mm) | - | - | - | Stainless Steel |
|
|
GEN-DR200-P40-SGENERIC DUAL ROW 2.0MM PITCH 40- |
3,060 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.079" (2.00mm) | - | - | - | Stainless Steel |
|
|
GEN-DR254-P40-SGENERIC DUAL ROW 2.54MM PITCH 40 |
4,451 |
|
数据手册 |
Proto-Advantage GEN | Bulk | Active | - | 40 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
