滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G-140S-0000SWITCH SLIDE SP4T 500MA 125V CW Industries |
2,390 |
|
数据手册 |
G | Bulk | Active | SP4T | Not Specified | On-On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-126-0150SWITCH SLIDE DPDT 500MA 125V CW Industries |
4,549 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
GI-154-0056SWITCH SLIDE DP3T 500MA 125V CW Industries |
2,577 |
|
数据手册 |
GI | Bulk | Active | DP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
G-105-0001SWITCH SLIDE SPST 500MA 125V CW Industries |
2,377 |
|
数据手册 |
G | Bulk | Active | SPST | Not Specified | On-Off | 500mA (AC/DC) | 125 V | 125 V | Standard | 2.79mm | - | - | Through Hole, Right Angle | Press-Fit | - |
|
|
GF-126-0116SWITCH SLIDE DPDT 500MA 125V CW Industries |
1,246 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GI-163-0005SWITCH SLIDE DP5T 500MA 125V CW Industries |
1,576 |
|
数据手册 |
GI | Bulk | Obsolete | DP5T | Not Specified | - | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

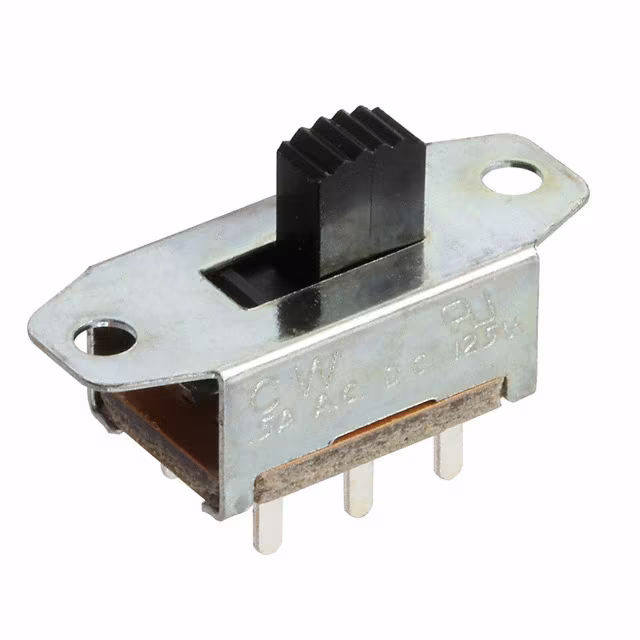

GF-126-0321SWITCH SLIDE DPDT 500MA 125V CW Industries |
1,550 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
G-127L-0001SWITCH SLIDE SP3T 500MA 125V CW Industries |
2,490 |
|
数据手册 |
G | Bulk | Active | SP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
G-632-0000SWITCH SLIDE SPDT 6A 125V CW Industries |
1,915 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GI-151-0063SWITCH SLIDE SPDT 500MA 125V CW Industries |
1,103 |
|
数据手册 |
GI | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
