滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1203A2CQEASWITCH SLIDE DPDT 5A 120V |
100 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
1203A2BQEBSWITCH SLIDE DPDT 5A 120V |
2,047 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
1201A1BREBSWITCH SLIDE DPDT 0.4VA 20V |
2,568 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Panel Mount | Solder Lug | - |
|
|
1203A4BQEBSWITCH SLIDE DPDT 5A 120V |
2,836 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.60mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
1203A1VQEASWITCH SLIDE DPDT 5A 120V |
4,527 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
1203A3BQEBSWITCH SLIDE DPDT 5A 120V |
2,956 |
|
数据手册 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

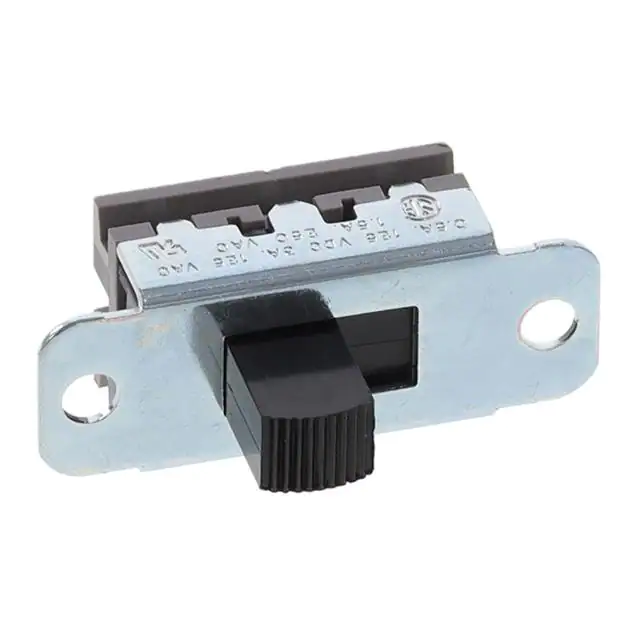

46203LEXSWITCH SLIDE SPDT 3A 125V |
2,901 |
|
数据手册 |
46200E | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
AS11BBSWITCH SLIDE SPST 0.4VA 28V |
4,808 |
|
数据手册 |
AS | Bulk | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN12AFG01SWITCH SLIDE |
2,581 |
|
数据手册 |
M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Panel Mount | Solder Lug | - |
|
|
MSN12ASW13SWITCH SLIDE |
3,815 |
|
数据手册 |
M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSN22AFW01SWITCH SLIDE |
4,236 |
|
数据手册 |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
MSN22BNW03SWITCH SLIDE |
1,841 |
|
数据手册 |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|

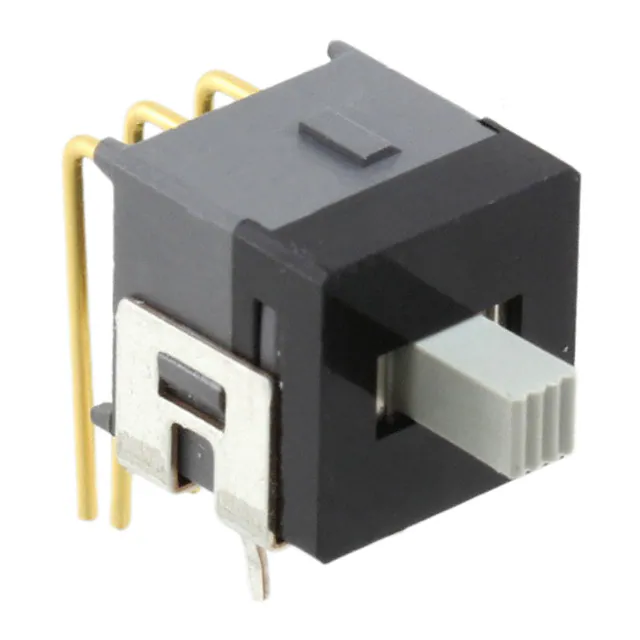

AS23CHSWITCH SLIDE DPDT 0.4VA 28V |
1,284 |
|
数据手册 |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSN22AFG01SWITCH SLIDE |
1,390 |
|
数据手册 |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Panel Mount | Solder Lug | - |
|
|
MSN12ASW40SWITCH SLIDE |
2,792 |
|
数据手册 |
M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSN12ASG40SWITCH SLIDE |
3,486 |
|
数据手册 |
M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
MSN22ANG03SWITCH SLIDE |
1,164 |
|
数据手册 |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
MSN22BNG03SWITCH SLIDE |
2,666 |
|
数据手册 |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|

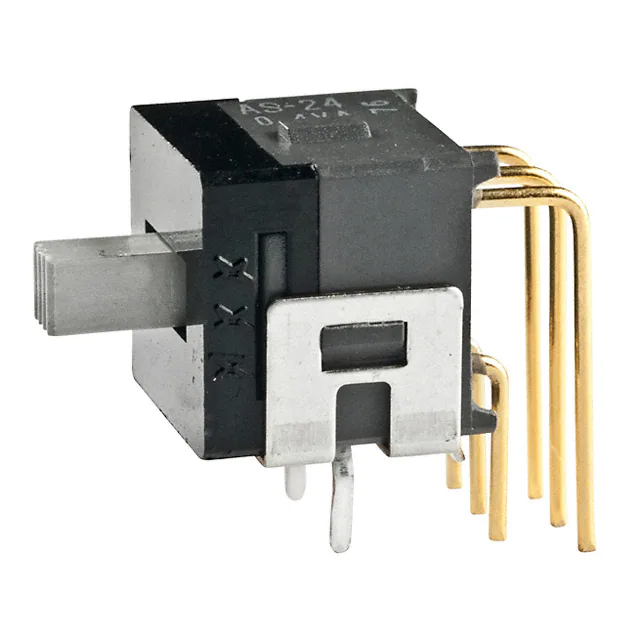

AS24CHSWITCH SLIDE SP3T 0.4VA 28V |
3,339 |
|
数据手册 |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Jumper needed to achieve triple throw |
|
|
MSN24BNW03SWITCH SLIDE |
4,441 |
|
数据手册 |
M | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
