滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825081-1SWITCH SLIDE SPDT 500MA 125V TE Connectivity ALCOSWITCH Switches |
3,250 |
|
数据手册 |
SLSA | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 3.20mm | Copper Alloy | Silver | Panel Mount | Solder Turret | Epoxy Sealed Terminals |
|
|
1825087-1SWITCH SLIDE DPDT 500MA 125V TE Connectivity ALCOSWITCH Switches |
1,633 |
|
数据手册 |
SLSA | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.80mm | Copper Alloy | Silver | Through Hole | Solder Turret | Epoxy Sealed Terminals |
|

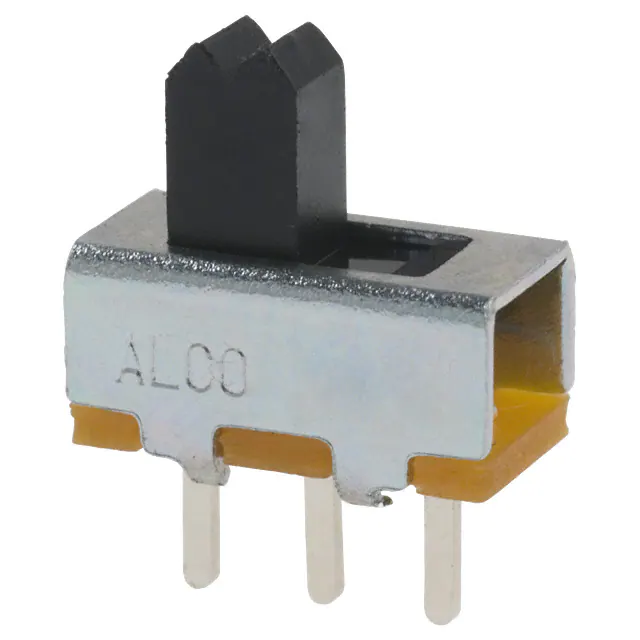

1825115-1SWITCH SLIDE SPDT 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,414 |
|
数据手册 |
SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

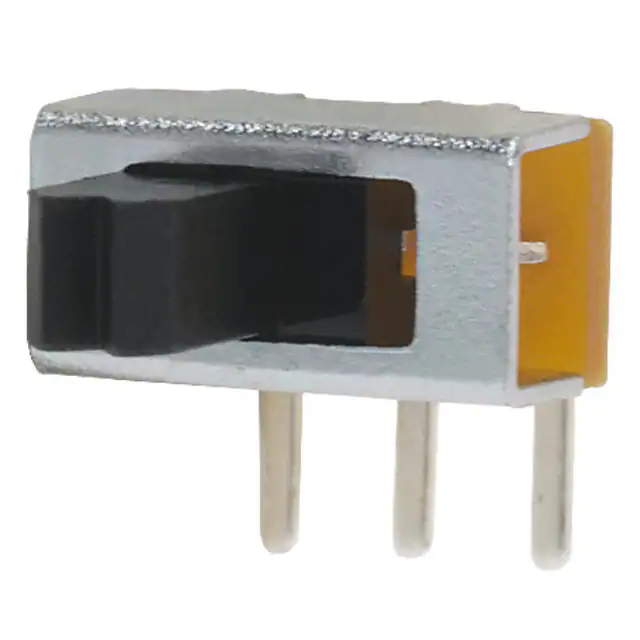

1825116-1SWITCH SLIDE SPDT 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,171 |
|
数据手册 |
SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825117-1SWITCH SLIDE SP3T 250MA 125V TE Connectivity ALCOSWITCH Switches |
4,615 |
|
数据手册 |
SLS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825118-1SWITCH SLIDE SP3T 250MA 125V TE Connectivity ALCOSWITCH Switches |
2,560 |
|
数据手册 |
SLS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825119-1SWITCH SLIDE SP4T 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,959 |
|
数据手册 |
SLS | Bulk | Active | SP4T | Non-Shorting (BBM) | On-On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825120-1SWITCH SLIDE SP4T 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,113 |
|
数据手册 |
SLS | Bulk | Active | SP4T | Non-Shorting (BBM) | On-On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

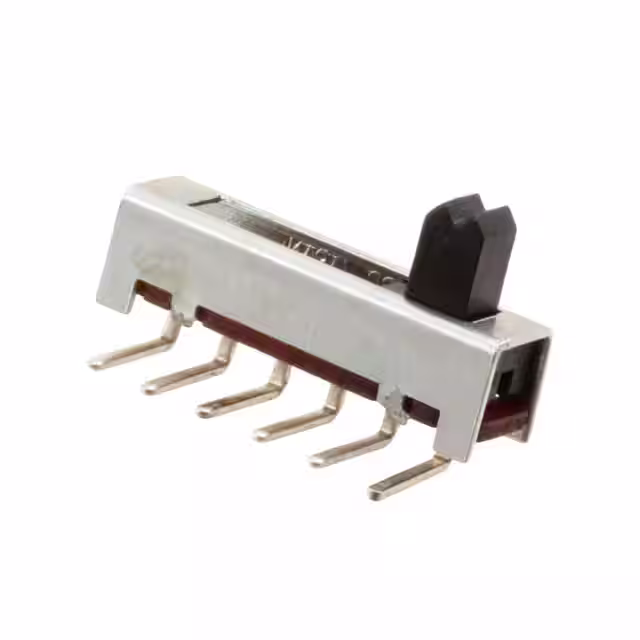

1825122-1SWITCH SLIDE SP5T 250MA 125V TE Connectivity ALCOSWITCH Switches |
2,690 |
|
数据手册 |
SLS | Bulk | Obsolete | SP5T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

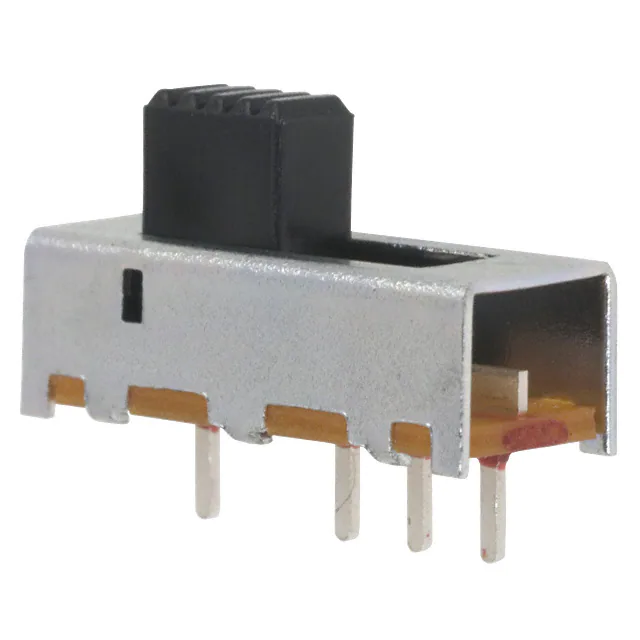

1825161-1SWITCH SLIDE SP3T 300MA 125V TE Connectivity ALCOSWITCH Switches |
1,110 |
|
数据手册 |
STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
