滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG39Y000050SLIDE SWITCH TG PCB MOUNT |
2,515 |
|
数据手册 |
TG | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
ASE22RGSWITCH SLIDE DPDT 0.4VA 20V |
3,682 |
|
数据手册 |
ASE | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.67mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
1201M2S3V4BE2SWITCH SLIDE DPDT 0.4VA 20V |
1,866 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
S202031SS03GESWITCH SLIDE DPDT 0.4VA 20V |
1,283 |
|
数据手册 |
S | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 8.51mm | Copper | Gold | Panel Mount, Snap-In | Solder Lug | - |
|
1825011-2SWITCH SLIDE DPDT 0.4VA 20V |
3,818 |
|
数据手册 |
ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
|
TG36Y010050SWITCH SLIDE SPDT 500MA 48V |
2,241 |
|
数据手册 |
TG | Tray | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | Washable |
|
1108M2S4V3QE2SWITCH SLIDE SPDT 6A 120V |
3,987 |
|
数据手册 |
1000 | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1201M2S4V3BE2SWITCH SLIDE DPDT 0.4VA 20V |
2,752 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.88mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1571982-2SWITCH SLIDE SPDT 0.4VA 20V |
2,038 |
|
数据手册 |
TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
S602121MS04GSWITCH SLIDE DPDT 12A 125V |
4,934 |
|
数据手册 |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 12A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Gold | Through Hole | PC Pin | 115V-230V Marking |
|
|
MPS101TACT SWITCH |
1,556 |
|
数据手册 |
MPS | Bulk | Active | SP3T | Not Specified | On-Off-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 4.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|

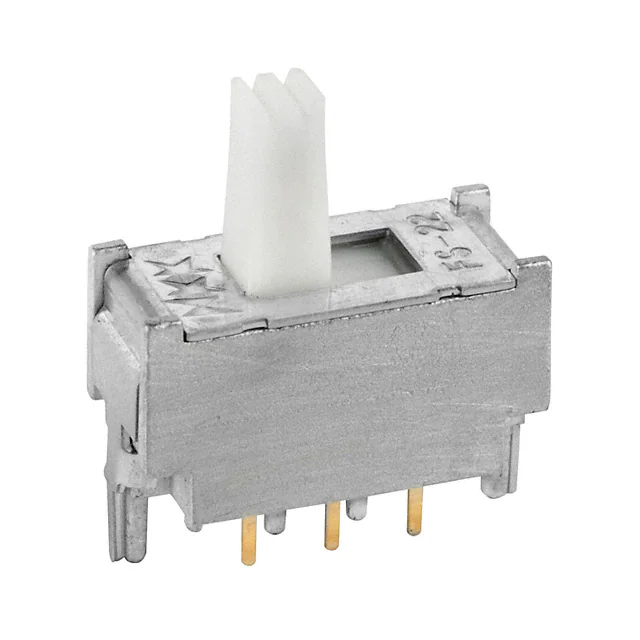

FS22AAPSWITCH SLIDE DPDT 0.4VA 28V |
3,978 |
|
数据手册 |
FS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 7.40mm | - | - | Through Hole | PC Pin | High Frequency |
|
TS03AQESWITCH SLIDE SPDT 1A 120V |
2,224 |
|
数据手册 |
TS | Bulk | Active | SPDT | Not Specified | On-Off-On | 1A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
S602031SS03GESWITCH SLIDE DPDT 12A 125V |
2,185 |
|
数据手册 |
S | Bulk | Active | DPDT | Not Specified | On-On | 12A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
1825031-3SWITCH SLIDE DPDT 0.4VA 20V |
3,253 |
|
数据手册 |
SE | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
|
|
TG36WS81065SLIDE SWITCH TG PCB MOUNT |
4,713 |
|
数据手册 |
TG | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Brass | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
AS22CPSWITCH SLIDE DPDT 0.4VA 28V |
4,807 |
|
数据手册 |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1201M2S6ABE2SWITCH SLIDE DPDT 0.4VA 20V |
4,894 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 11.96mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1825011-8SWITCH SLIDE DPDT 300MA 115V |
1,049 |
|
数据手册 |
ASF | Tape & Reel (TR) | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | Tape Seal |
|
|
1201M1S1ZBE2SWITCH SLIDE DPDT 0.4VA 20V |
1,564 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.02mm | Copper | Gold | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
