信号继电器（最大2安培）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 认证机构 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OUAZ-SS-105D,900RELAY TELECOM SPDT 1A 5V |
3,679 |
|
数据手册 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.25 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - | |
|
|
OUAZ-SS-109D,900RELAY TELECOM SPDT 1A 9V |
1,529 |
|
数据手册 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - | |
|
|
OUAZ-SH-105L,900RELAY TELECOM SPDT 1A 5V |
3,611 |
|
数据手册 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - | |
|
|
OUAZ-SH-106L,900RELAY TELECOM SPDT 1A 6V |
4,468 |
|
数据手册 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - | |
|
|
OUAZ-SS-106L,900RELAY TELECOM SPDT 1A 6V |
2,507 |
|
数据手册 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.6 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - | |
|
C93406RELAY TELECOM DPDT 2A 4.5V |
2,132 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 3.2 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93412RELAY TELECOM DPDT 2A 12V |
2,138 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 25 mA | Non Latching | - | PC Pin | - | - | 8.25 VDC | 1.2 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93417RELAY TELECOM DPDT 2A 9V |
3,296 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | - | - | 5.9 VDC | 0.9 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93420RELAY TELECOM DPDT 2A 48V |
1,065 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93421RELAY TELECOM DPDT 2A 4.5V |
2,437 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 88.9 mA | Non Latching | - | PC Pin | - | - | 2.9 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93423RELAY TELECOM DPDT 2A 9V |
3,991 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 44.4 mA | Non Latching | - | PC Pin | - | - | 5.9 VDC | 0.9 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93426RELAY TELECOM DPDT 2A 48V |
3,646 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93427RELAY TELECOM DPDT 2A 6V |
1,255 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 25 mA | Non Latching | - | PC Pin | - | - | 4.3 VDC | 0.6 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93428RELAY TELECOM DPDT 2A 6V |
2,338 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 3.9 VDC | 0.6 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93433RELAY TELECOM DPDT 2A 4.5V |
2,925 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | - | - | 3.1 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93434RELAY TELECOM DPDT 2A 5V |
2,612 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Non Latching | - | PC Pin | - | - | 3.4 VDC | 0.5 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93435RELAY TELECOM DPDT 2A 24V |
3,287 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 12.5 mA | Non Latching | - | PC Pin | - | - | 16.5 VDC | 2.4 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93436RELAY TELECOM DPDT 2A 48V |
3,597 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 6.3 mA | Non Latching | - | PC Pin | - | - | 32.5 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|
|
C93438RELAY TELECOM DPDT 2A 4.5V |
3,128 |
|
数据手册 |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 122 mA | Non Latching | - | PC Pin | - | - | 2.9 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - | |
|

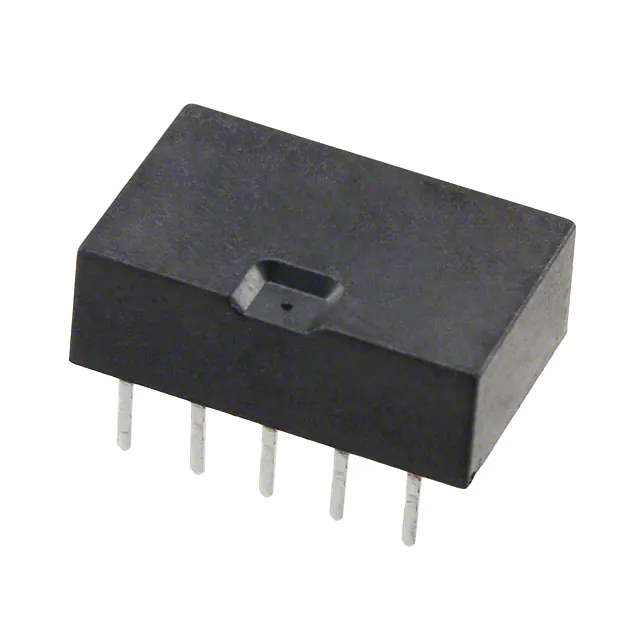

D3004RELAY TELECOM DPDT 2A 4.5V |
3,846 |
|
数据手册 |
FP2, AXICOM | Bulk | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.45 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
