信号继电器（最大2安培）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6AK-274P-ST-US DC9RELAY GENERAL PURPOSE DPDT 2A 9V Omron Electronics Inc-EMC Div |
1,011 |
|
数据手册 |
G6A | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Dual Coil | - | PC Pin | - | - | 6.3 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6A-274P-ST-US-DC4.5RELAY GEN PURPOSE DPDT 2A 4.5V Omron Electronics Inc-EMC Div |
2,994 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 44.4 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.45 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-ST-US DC9RELAY GENERAL PURPOSE DPDT 2A 9V Omron Electronics Inc-EMC Div |
3,735 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

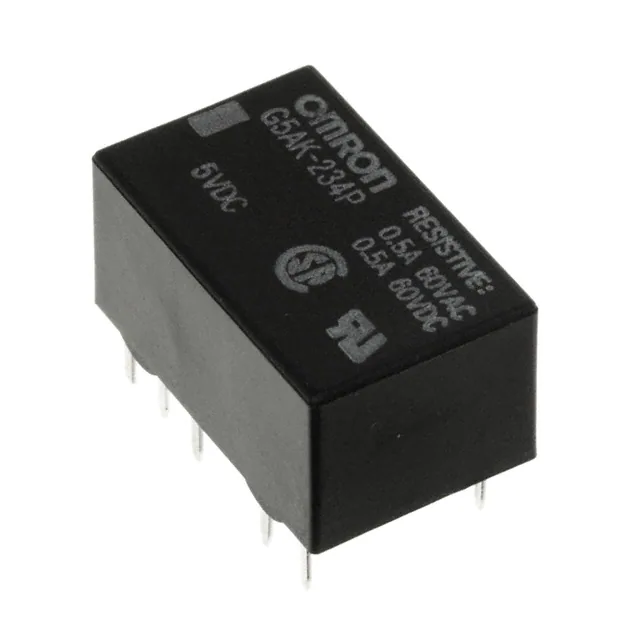

G5AK-234P-DC5RELAY GENERAL PURPOSE DPDT 1A 5V Omron Electronics Inc-EMC Div |
4,061 |
|
数据手册 |
G5A | Box | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6A-234P-ST10-US DC24RELAY GEN PURPOSE DPDT 1A 24V Omron Electronics Inc-EMC Div |
4,639 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6A-274P-ST-US DC48RELAY GEN PURPOSE DPDT 2A 48V Omron Electronics Inc-EMC Div |
3,727 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.9 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6A-234P-ST15-US-DC48RELAY GEN PURPOSE DPDT 1A 48V Omron Electronics Inc-EMC Div |
2,542 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 3.2 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-234P-ST40-US DC24RELAY GEN PURPOSE DPDT 1A 24V Omron Electronics Inc-EMC Div |
2,543 |
|
数据手册 |
G6A | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 15 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AU-274P-ST-US DC48RELAY GEN PURPOSE DPDT 2A 48V Omron Electronics Inc-EMC Div |
1,150 |
|
数据手册 |
G6A | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 2.5 mA | Latching, Single Coil | - | PC Pin | - | - | 33.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6EK-134PL-ST-US DC6RELAY GENERAL PURPOSE SPDT 2A 6V Omron Electronics Inc-EMC Div |
1,216 |
|
数据手册 |
G6E | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
