信号继电器（最大2安培）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6HK-2-100-DC3RELAY TELECOM DPDT 1A 3V Omron Electronics Inc-EMC Div |
3,303 |
|
数据手册 |
G6H | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6HK-2-100-DC5RELAY TELECOM DPDT 1A 5V Omron Electronics Inc-EMC Div |
1,146 |
|
数据手册 |
G6H | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6S-2F DC48RELAY TELECOM DPDT 2A 48V Omron Electronics Inc-EMC Div |
3,659 |
|
数据手册 |
G6S | Tube | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6H-2F-TR DC24RELAY TELECOM DPDT 1A 24V Omron Electronics Inc-EMC Div |
3,245 |
|
数据手册 |
G6H | Tape & Reel (TR) | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 3 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6K-2F-Y DC6RELAY TELECOM DPDT 1A 6V Omron Electronics Inc-EMC Div |
4,443 |
|
数据手册 |
G6K | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 17.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6JU-2FS-Y-TR DC12RELAY TELECOM DPDT 1A 12V Omron Electronics Inc-EMC Div |
2,848 |
|
数据手册 |
G6J-Y | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6J-2FL-Y-TR DC9RELAY TELECOM DPDT 1A 9V Omron Electronics Inc-EMC Div |
3,007 |
|
数据手册 |
G6J-Y | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | - | Non Latching | - | Gull Wing | Sealed - Fully | - | - | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6KU-2F-Y DC9RELAY TELECOM DPDT 1A 9V Omron Electronics Inc-EMC Div |
1,492 |
|
数据手册 |
G6K | Tray | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 11.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6KU-2P-Y DC4.5RELAY TELECOM DPDT 1A 4.5V Omron Electronics Inc-EMC Div |
1,440 |
|
数据手册 |
G6K | Tray | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 23.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|

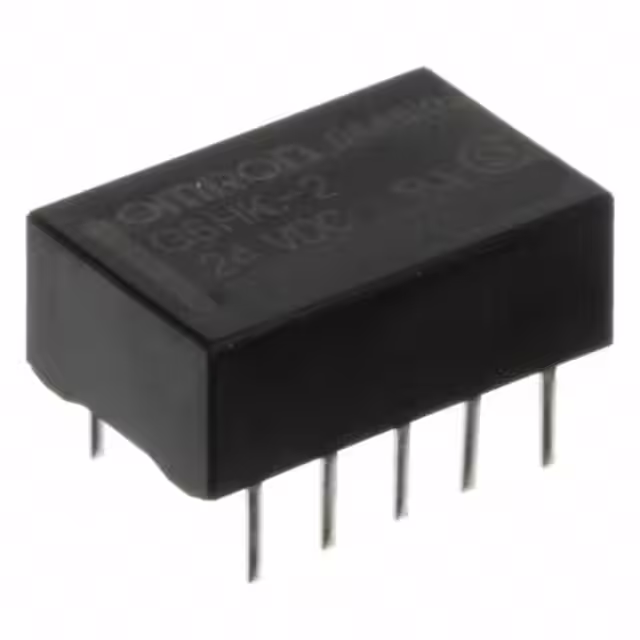

G6HK-2-DC24RELAY TELECOM DPDT 1A 24V Omron Electronics Inc-EMC Div |
1,726 |
|
数据手册 |
G6H | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
