选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W22S3-HW-10/01SWITCH SELECT 3POS DPST 10A 72V c3controls |
188 |
|
数据手册 |
22 | Bag | Active | Standard | DPST-NO/NC | 3 | On-Off-Off, On-On-Off | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
W22S3-HW-10/10SWITCH SELECT 3POS DPST 10A 72V c3controls |
155 |
|
数据手册 |
22 | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
W22S2-HW-20SWITCH SELECT 2POS DPST 10A 72V c3controls |
138 |
|
数据手册 |
22 | Bag | Active | Standard | DPST-NO | 2 | Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|

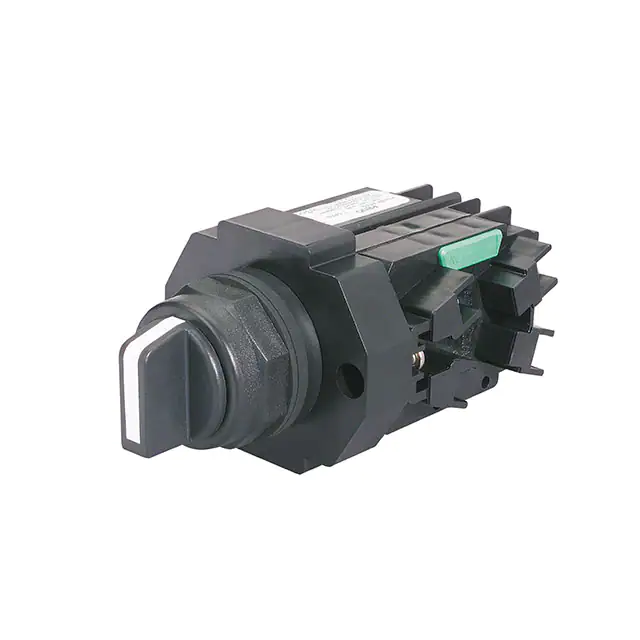

HSSO2-SHWE-CBFSR30MM HAZ 2POS SS FCTRY SLD NO/NC c3controls |
3,241 |
|
数据手册 |
- | Box | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
HSSO3-SHWE-CBFSR/CBFSRSWITCH SELECT 3POS 4PST 10A 72V c3controls |
194 |
|
数据手册 |
- | Box | Active | Standard | 4PST-2NO/2NC | 3 | On-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
W22S2-HW-10SWITCH SELECT 2POS SPST 10A 72V c3controls |
4,415 |
|
数据手册 |
22 | Bag | Active | Standard | SPST-NO | 2 | Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
W22S2-HW-10/01SWITCH SELECT 2POS DPST 10A 72V c3controls |
1,584 |
|
数据手册 |
22 | Bag | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|

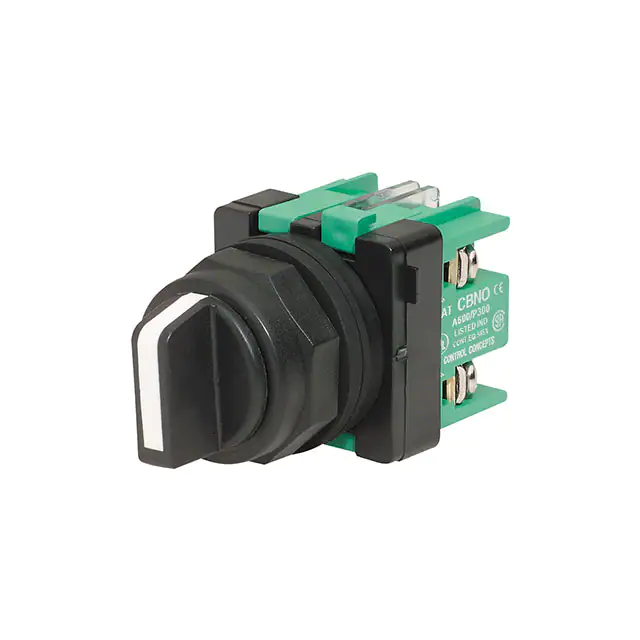

SSO2-SHWE-NOSWITCH SELECT 2POS SPST 10A 72V c3controls |
2,602 |
|
数据手册 |
- | Bag | Active | Standard | SPST-NO | 2 | Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
|
SSO3-SHWE-NO/NOSWITCH SELECT 3POS DPST 10A 72V c3controls |
4,514 |
|
数据手册 |
- | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|

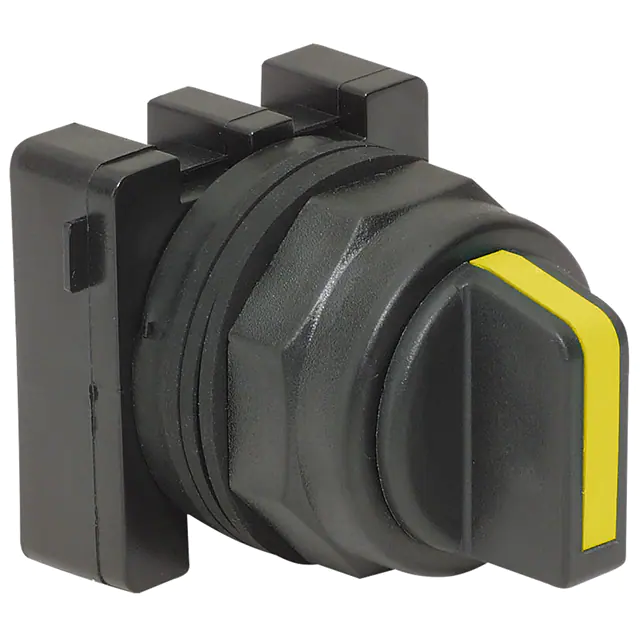

SSO3-SLYW-NO/NOSWITCH SELECT 3POS DPST 10A 72V c3controls |
1,844 |
|
数据手册 |
- | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
