选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K1142884SWITCH SELECT 2POS SPST 250A 80V TE Connectivity Deutsch Connectors |
2,050 |
|
数据手册 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (DC) | - | 80 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
35-221-100-RSWITCH SELECT 2POS DPST 200A 20V TE Connectivity Deutsch Connectors |
2,830 |
|
数据手册 |
35 | Box | Active | Battery Disconnect | DPST | 2 | On-Off | 200A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
35-514-231-R-901SWITCH SELECT 2POS SPST 500A 20V TE Connectivity Deutsch Connectors |
3,189 |
|
数据手册 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 500A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
35-210-041-SSWITCH SELECT 2POS SPST 250A 20V TE Connectivity Deutsch Connectors |
4,816 |
|
数据手册 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|

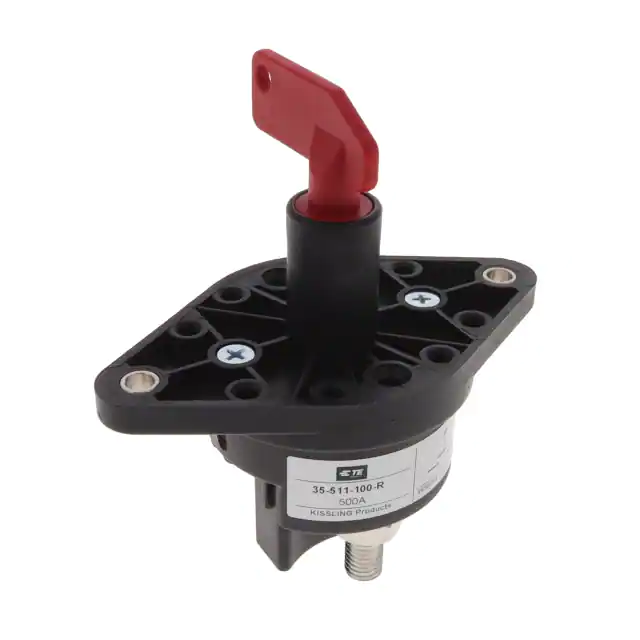

35-511-100-RSWITCH SELECT 2POS SPST 500A 20V TE Connectivity Deutsch Connectors |
3,229 |
|
数据手册 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 500A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
35-314-131-S-902SWITCH SELECT 2POS SPST 300A 20V TE Connectivity Deutsch Connectors |
1,963 |
|
数据手册 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 300A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
K1060504SWITCH SELECT 2POS SPST 500A 32V TE Connectivity Deutsch Connectors |
1,923 |
|
数据手册 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 500A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
K1126755SWITCH SELECT 2POS SPST 400A 32V TE Connectivity Deutsch Connectors |
2,791 |
|
数据手册 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
K5000061SWITCH SELECT 2POS SPST 300A 32V TE Connectivity Deutsch Connectors |
2,006 |
|
数据手册 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 300A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
K1128688SWITCH SELECT 2POS SPST 400A 32V TE Connectivity Deutsch Connectors |
3,343 |
|
数据手册 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
