选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDB6-1A-3-R4SWITCH SELECT 2POS SPST 300A 24V Switch Components |
174 |
|
数据手册 |
HDB6 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 24 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 30.00mm Dia | - | - | - |
|

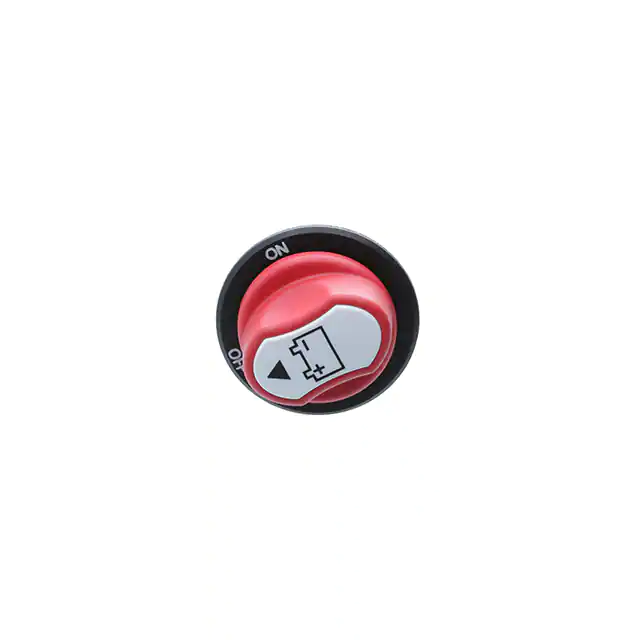

BC2-DCSWITCH SELECT 2POS SPST 100A 32V Switch Components |
4,494 |
|
数据手册 |
BC | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 100A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 29.00mm Dia | IP56 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
|
HDB6-1A-3-TSWITCH SELECT 2POS SPST 500A 12V Switch Components |
2,335 |
|
数据手册 |
HDB6 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 500A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
|
HDB6-1A-3-T4SWITCH SELECT 2POS SPST 500A 12V Switch Components |
3,415 |
|
数据手册 |
HDB6 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 500A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
|
HDB6-1A-3-T3SWITCH SELECT 2POS SPST 500A 12V Switch Components |
1,994 |
|
数据手册 |
HDB6 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 500A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
BC1-DCMINI BATTERY DISCONNECT - M22 Switch Components |
3,833 |
|
数据手册 |
BC | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 50A (DC) | - | 50 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 22.20mm Dia | - | - | -20°C ~ 85°C |
|
BB2-DCMINI BATTERY SELECT OFF/1/2/1&2 Switch Components |
3,165 |
|
数据手册 |
BB | Bulk | Active | Battery Disconnect | SP3T | 4 | Off-On-On-On | 100A (DC) | - | 50 V | Non-Illuminated | - | - | Chassis Mount | Stud | - | IP68 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
BD-DCBATTERY DISCONNECT-REMOVABLE KEY Switch Components |
3,328 |
|
数据手册 |
BD | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 100A (DC) | - | 50 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | -20°C ~ 85°C |
