选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0033.3814SWITCH SELECT 6P SERIES 10A 250V SCHURTER Inc. |
2,957 |
|
数据手册 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | No Marking | -40°C ~ 85°C |
|
0033.3522SWITCH SELECT 6P SERIES 10A 250V SCHURTER Inc. |
3,188 |
|
数据手册 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 30.00mm Dia | IP40 | Marking: 110-220 | -40°C ~ 85°C |
|

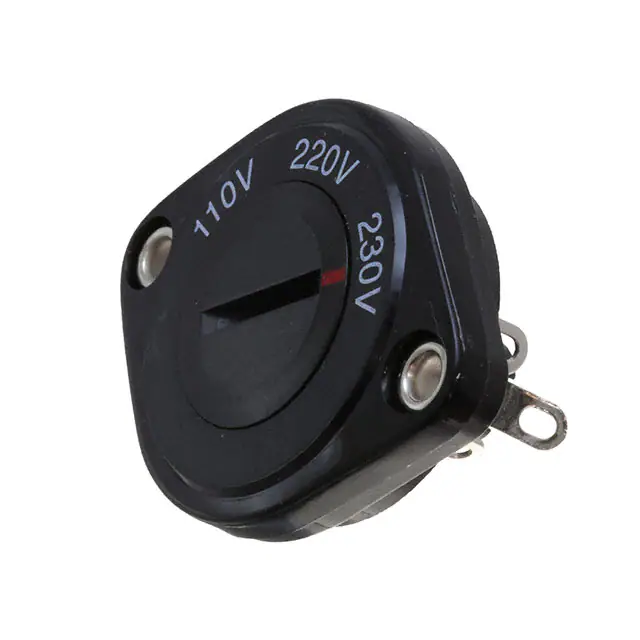

0033.1134SWITCH SELECT 6POS SP6T 10A 250V SCHURTER Inc. |
1,060 |
|
数据手册 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 110V-220V-230V | -40°C ~ 85°C |
|
|
0033.1110SWITCH SELECT 6POS SP6T 10A 250V SCHURTER Inc. |
100 |
|
数据手册 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-115V-200V-220V-230V-240V | -40°C ~ 85°C |
|
|
0033.1119SWITCH SELECT 6POS SP6T 10A 250V SCHURTER Inc. |
4,904 |
|
数据手册 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-110V-120V-200V-220V-240V | -40°C ~ 85°C |
|
|
0033.1125SWITCH SELECT 6POS SP6T 10A 250V SCHURTER Inc. |
3,022 |
|
数据手册 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 110V-115V-130V-200V-230V | -40°C ~ 85°C |
|

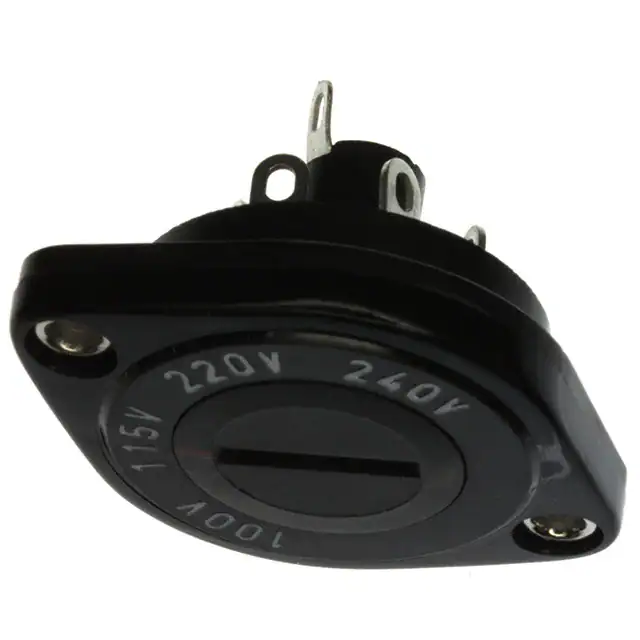

0033.1118SWITCH SELECT 6POS SP6T 10A 250V SCHURTER Inc. |
3,871 |
|
数据手册 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-115V-220V-240V | -40°C ~ 85°C |
|
0033.4508SWITCH SELECT 2P SER 6.3A 250V SCHURTER Inc. |
100 |
|
数据手册 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 50Hz-60Hz | -40°C ~ 85°C |
|
|
0033.4603SWITCH SELECT 2P SER 6.3A 250V SCHURTER Inc. |
4,082 |
|
数据手册 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | Marking: 120-240 | -40°C ~ 85°C |
|

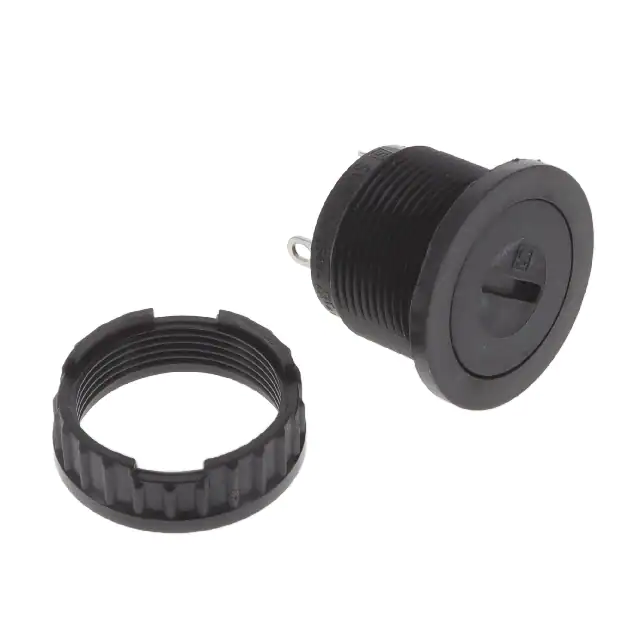

0033.4014SWITCH SELECT 3POS SP3T 10A 250V SCHURTER Inc. |
3,330 |
|
数据手册 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | No Marking | -40°C ~ 85°C |
