选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7S-2T5SWITCH SELECT 2POS SPDT 5A 125V IDEC |
1,430 |
|
数据手册 |
LBW | Box | Active | Standard | SPDT | 2 | On-On | 5A (AC/DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 60°C |
|

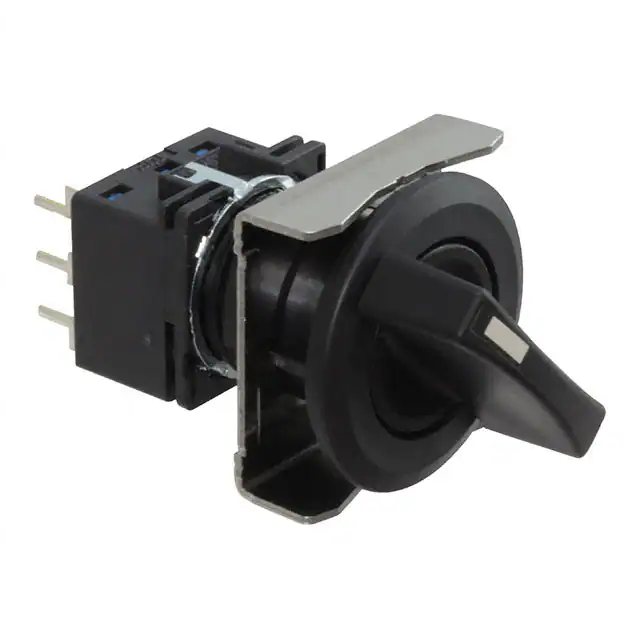

LBW6S-2T1VSWITCH SELECT 2P SPDT 100MA 125V IDEC |
2,521 |
|
数据手册 |
LBW | Box | Active | Standard | SPDT | 2 | On-On | 100mA (AC/DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | PC Pin | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 60°C |
|
|
LA3F-2C27V-ASWITCH SELECT 2P DPDT 100MA 125V IDEC |
3,318 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 100mA (AC/DC) | 125 V | 30 V | Illuminated | Incandescent, Amber | 24 VAC/DC | Panel Mount | PC Pin | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA3F-2C26V-GSWITCH SELECT 2P DPDT 100MA 125V IDEC |
4,027 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 100mA (AC/DC) | 125 V | 30 V | Illuminated | Incandescent, Green | 12 VAC/DC | Panel Mount | PC Pin | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA3F-2C25V-GSWITCH SELECT 2P DPDT 100MA 125V IDEC |
1,179 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 100mA (AC/DC) | 125 V | 30 V | Illuminated | Incandescent, Green | 6 VAC/DC | Panel Mount | PC Pin | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA1F-2C66-WSWITCH SELECT 2POS DPDT 5A 125V IDEC |
4,816 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | Incandescent, White | 12 VAC/DC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA1F-2C67-ASWITCH SELECT 2POS DPDT 5A 125V IDEC |
3,545 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | Incandescent, Amber | 24 VAC/DC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA1F-2C67-GSWITCH SELECT 2POS DPDT 5A 125V IDEC |
2,277 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | Incandescent, Green | 24 VAC/DC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA3F-2C27V-WSWITCH SELECT 2P DPDT 100MA 125V IDEC |
3,748 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 2 | On-On | 100mA (AC/DC) | 125 V | 30 V | Illuminated | Incandescent, White | 24 VAC/DC | Panel Mount | PC Pin | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
LA1F-31C27V-WSWITCH SELECT 3P DPDT 100MA 125V IDEC |
2,911 |
|
数据手册 |
L6 | Bulk | Active | Standard | DPDT | 3 | On-Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Illuminated | Incandescent, White | 24 VAC/DC | Panel Mount | PC Pin | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
