安全继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 特性 | 端接样式 | 必须动作电压 | 必须释放电压 | 工作温度 | 触点材料 | 动作时间 | 释放时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.12.9.012.5000RELAY WITH FORCIBLY GUIDED CONTA |
2,958 |
|
数据手册 |
50 | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | Sealed - Flux Protection | PC Pin | 9 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
SFS3-DC24VRELAY SAFETY 4PST 6A 24V |
1,372 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
-D2xx.jpg)
|
RF1V-3A1BL-D24RELAY GEN PURPOSE 4PST 6A 24V |
4,700 |
|
数据手册 |
RF1V | Bulk | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
56.OW69.1000SRELAY SAFETY DPDT 8A 10V |
4,157 |
|
数据手册 |
OW | Bulk | Active | Through Hole | 10VDC | DPDT (2 Form C) | 8 A | 400VAC, 250VDC - Max | Sealed - Fully | PC Pin | 8 VDC | - | 15 ms | 12 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
RF1V-4A2BL-D24RELAY GEN PURPOSE 6PST 6A 24V |
2,349 |
|
数据手册 |
RF1V | Bulk | Active | Through Hole | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
RF1V-3A1BLD1-D24RELAY GEN PURPOSE 4PST 6A 24V |
2,385 |
|
数据手册 |
RF1V | Bulk | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
RF1V-2A2BLD1-D24RELAY GEN PURPOSE 4PST 6A 24V |
4,341 |
|
数据手册 |
RF1V | Bulk | Active | Through Hole | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
1218390000RCIKITZ 24VDC 2CO LED FG |
1,350 |
|
数据手册 |
- | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Spring Terminal | 18 VDC | 2.4 VDC | 12 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
1480226SAFE COUPLING RELAY WITH FORCE-G |
3,405 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | - | - | Screw Terminal | 21.6 VDC | - | 70 ms | 50 ms | -20°C ~ 60°C | Silver Nickel (AgNi) |
|

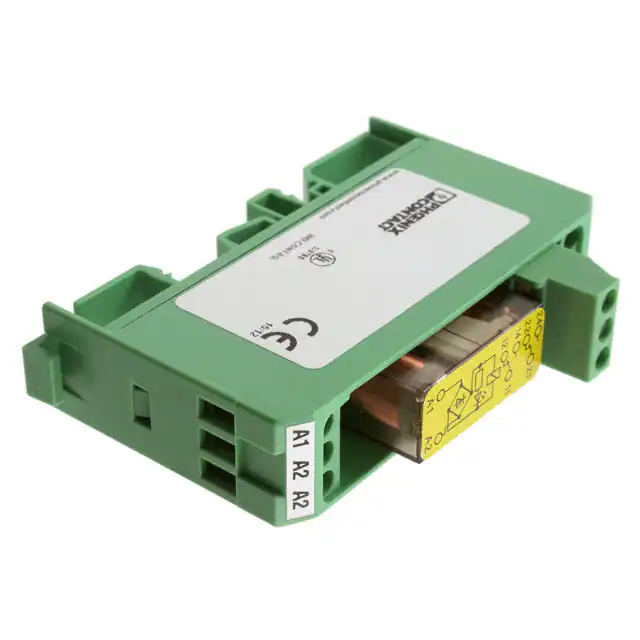

2981376UNIVERSAL SAFETY RELAY 2PDT 120V |
3,147 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | Screw Terminal | - | - | 10 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) |
|

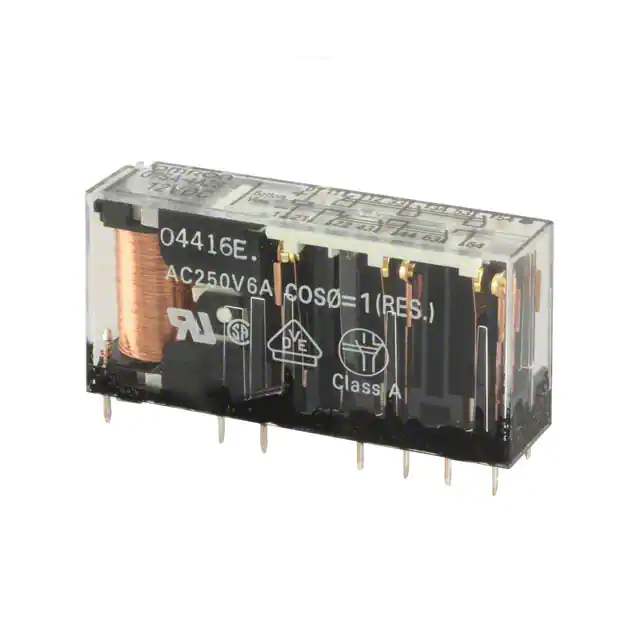

G7SA-4A2B DC12RELAY SAFETY 6PST 6A 12V |
3,454 |
|
数据手册 |
G7SA | Tube | Active | Socketable, Through Hole | 12VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin, Plug In | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) |
|
|
2702192PSR-MS21-1NO-1DO-24DC-SC |
2,327 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Screw Terminal | 19.2 VDC | - | 150 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

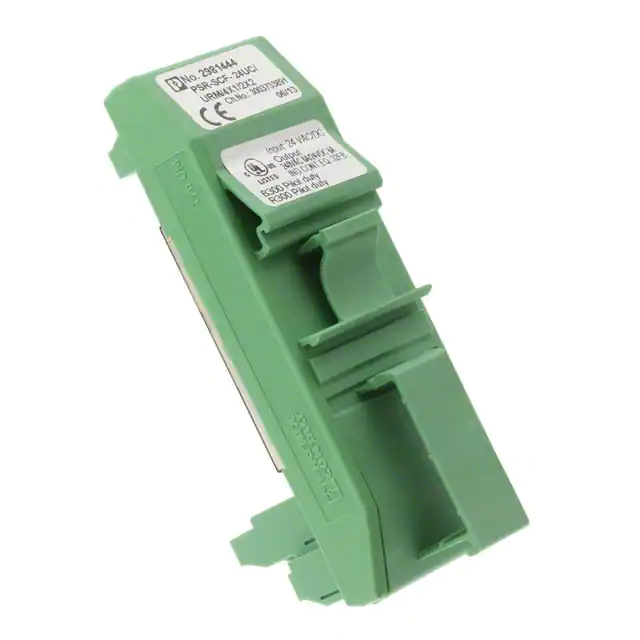

2981444RELAY SAFETY 6PST 6A 24V |
4,441 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VAC/DC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 250VDC - Max | - | Screw Terminal | - | - | 10 ms | 10 ms | -20°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
|
2904953PSR-MS35-1NO-24DC-SC |
4,699 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | - | - | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

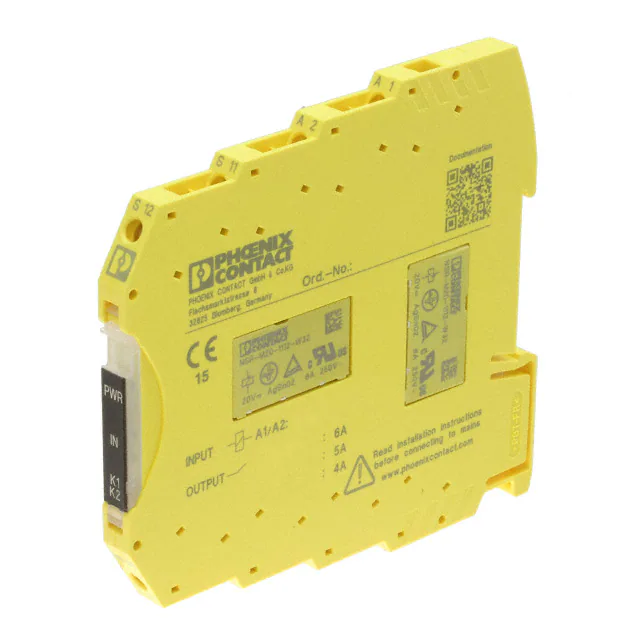

2904952PSR-MS30-1NO-24DC-SC |
3,682 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | 250 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
2904954PSR-MS40-1NO-1DO-24DC-SC |
4,091 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | 250 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
2702382PSR-MC82-5NO-1NC-1DO-24DC-SC |
2,951 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Screw Terminal | 19.2 VDC | - | 50 ms | 25 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
2702663COUPLING RELAY 1NO-1NC-24VDC |
3,355 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | 19.2 VDC | - | 70 ms | 30 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
2702383PSR-MC82-5NO-1NC-1DO-24DC-SP |
1,347 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Spring Terminal | 19.2 VDC | - | 50 ms | 25 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
2700466RELAY SAFETY 3PST 6A 24V |
4,997 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | 250 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
