安全继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 特性 | 端接样式 | 必须动作电压 | 必须释放电压 | 工作温度 | 触点材料 | 动作时间 | 释放时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

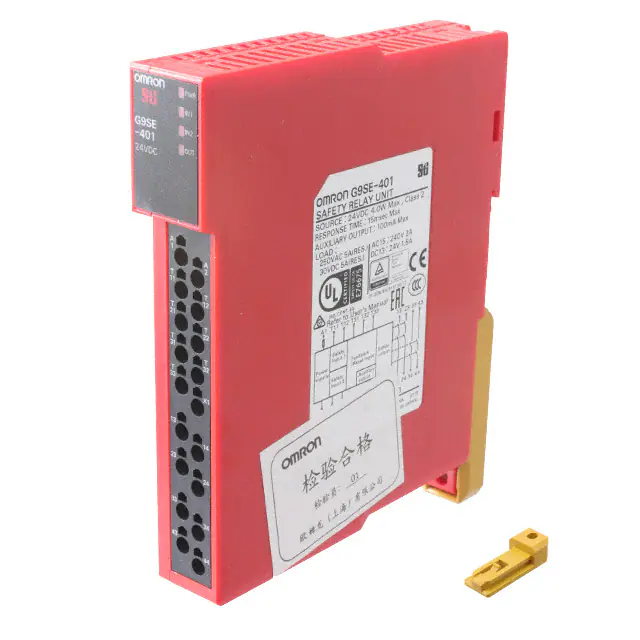

G9SE-401SAFETY UNIT 4+1 O/P |
680 |
|
数据手册 |
G9SE | Bulk | Active | DIN Rail | 24VDC | 4PST-NO (4 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 100 ms | 15 ms | -10°C ~ 55°C | - |
|

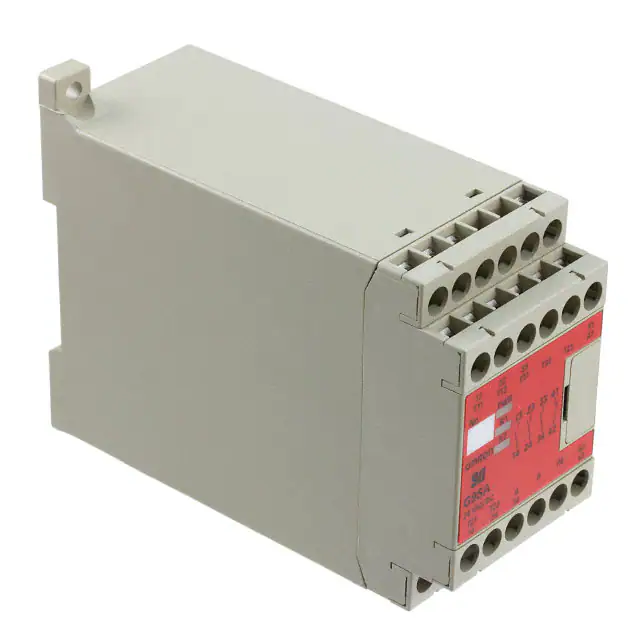

G9SA-301 AC/DC24RELAY SAFETY 3P 24V |
231 |
|
数据手册 |
G9SA | Bulk | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 30 ms | 10 ms | -25°C ~ 55°C | - |
|
ES-FA-9AASAFETY MODULE E-STOP/INTERLOCK |
4,481 |
|
数据手册 |
ES | Box | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | 25 ms | - | 0°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) |
|

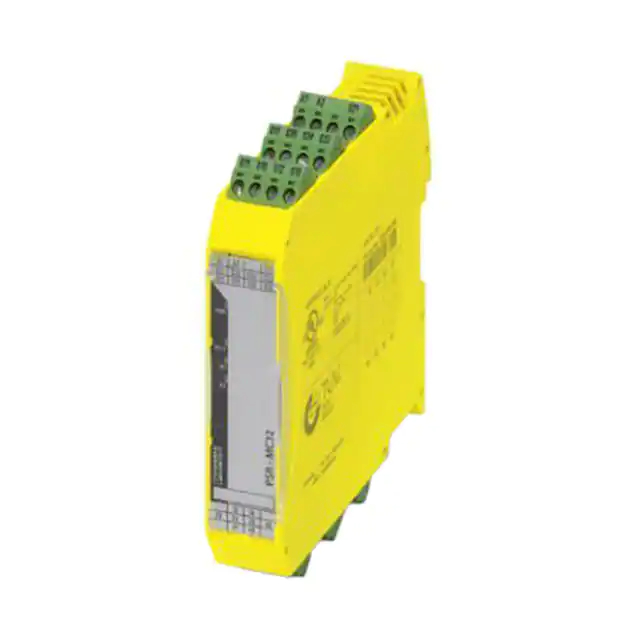

2700524RELAY SAFETY 3PST 6A 24V |
3,823 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | - | Screw Terminal | - | - | 150 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
UM-FA-9ASAFETY RELAY MODULE |
108 |
|
数据手册 |
UM | Box | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | 25 ms | - | 0°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) |
|
G9SE-221-T05SAFETY UNIT 2+2+1 INST+TD O/P |
389 |
|
数据手册 |
G9SE | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 100 ms | 15 ms | -10°C ~ 55°C | - |
|
G9SA-321-T15 AC/DC24RELAY SAFETY 3P 24V |
3,273 |
|
数据手册 |
G9SA | - | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 30 ms | 10 ms | -25°C ~ 55°C | - |
|
G9SB-3012-A AC/DC24RELAY SAFETY 3PST 5A 24V |
116 |
|
数据手册 |
G9SB | Bulk | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 30 ms | 10 ms | -25°C ~ 55°C | - |
|

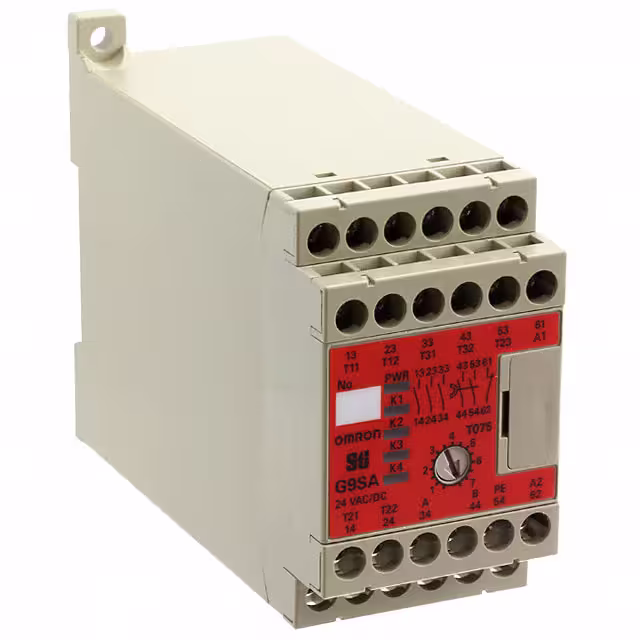

G9SA-321-T075 AC/DC24RELAY SAFETY 3P 24V |
1,290 |
|
数据手册 |
G9SA | Bulk | Active | DIN Rail | 24VAC/DC | 3PST-NO (3 Form A) | 5 A | 250VAC, 30VDC - Max | - | Screw Terminal | - | - | 30 ms | 10 ms | -25°C ~ 55°C | - |
|

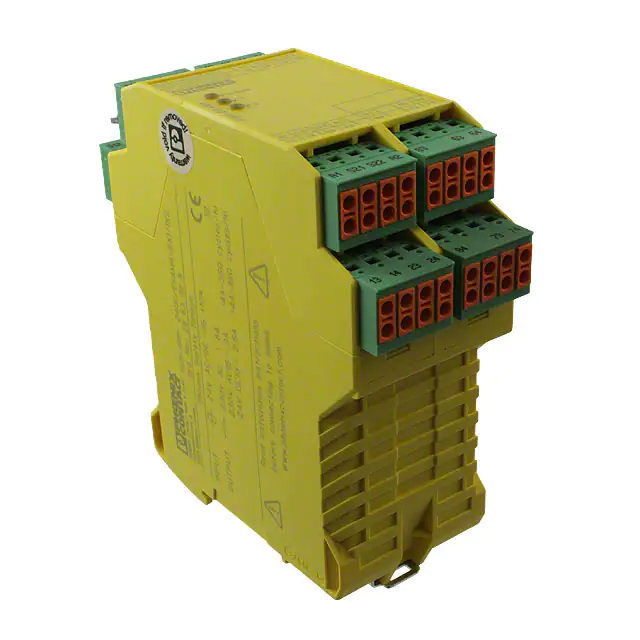

2963996RELAY SAFETY 8PST 6A 24V |
4,858 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VAC/DC | 8PST-NO (8 Form A) | 6 A | 250VAC, 250VDC - Max | - | Spring Terminal | - | - | 60 ms | 20 ms | -20°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
V23047-A1048-A501RELAY SAFETY DPDT 6A 48V |
1,922 |
|
数据手册 |
SR2M, SCHRACK | Box | Active | Through Hole | 48VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 36 VDC | 4.8 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047A1005A501RELAY SAFETY DPDT 6A 5V |
5,821 |
|
数据手册 |
SR2M, SCHRACK | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 3.8 VDC | 0.5 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047-A1110-A511RELAY SAFETY DPST 6A 110V |
267 |
|
数据手册 |
SR2M, SCHRACK | Tube | Active | Through Hole | 110VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 82.5 VDC | 11 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23047-A1110-A501RELAY SAFETY DPDT 6A 110V |
684 |
|
数据手册 |
SR2M, SCHRACK | Tube | Active | Through Hole | 110VDC | DPDT (2 Form C) | 6 A | 400VAC - Max | Sealed - Fully | PC Pin | 82.5 VDC | 11 VDC | - | - | -25°C ~ 70°C | Silver Nickel (AgNi) |
|
SFS6-DC24VRELAY SAFETY 6PST 6A 24V |
799 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
SFS2-L-DC24VRELAY SAFETY 4PST 6A 24V |
778 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
SFS3-L-DC24V-DRELAY SAFETY 4PST 6A 24V |
607 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
SFS4-DC24VRELAY SAFETY 6PST 6A 24V |
110 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
SR6M4024RELAY SAFETY 4PST 8A 24V |
795 |
|
数据手册 |
SR6 D/M, SCHRACK | Tube | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | - | PC Pin | 18 VDC | 2.4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
SFS2-L-DC12V-DRELAY SAFETY 4PST 6A 12V |
204 |
|
数据手册 |
SFS | Bulk | Active | Through Hole | 12VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | Diode, Lighted Indicator | PC Pin | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
