安全继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 特性 | 端接样式 | 必须动作电压 | 必须释放电压 | 工作温度 | 触点材料 | 动作时间 | 释放时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFY4-DC18VRELAY SAFETY 6PST 6A 18V |
1,011 |
|
数据手册 |
SF-Y | Tube | Active | Through Hole | 18VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 13.5 VDC | 2.7 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
SFY4-DC12VRELAY SAFETY 6PST 6A 12V |
2,967 |
|
数据手册 |
SF-Y | Tube | Active | Through Hole | 12VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 9 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
SFY4-DC24VRELAY SAFETY 6PST 6A 24V |
2,800 |
|
数据手册 |
SF-Y | Tube | Active | Through Hole | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 18 VDC | 3.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
ASFM0055SRELAY SAFETY DPST NO/NC 6A/3A 5V |
1,804 |
|
数据手册 |
SF-M | Tube | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Fully | PC Pin | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
2700578PSR-PC20-1NO-1NC-24DC-SP |
1,036 |
|
数据手册 |
- | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Spring Terminal | - | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
2981981RELAY SAFETY DPST 5A 24V |
2,081 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 250VDC - Max | - | Spring Terminal | - | - | 50 ms | 50 ms | -20°C ~ 55°C | Silver Copper Nickel (AgCuNi) |
|

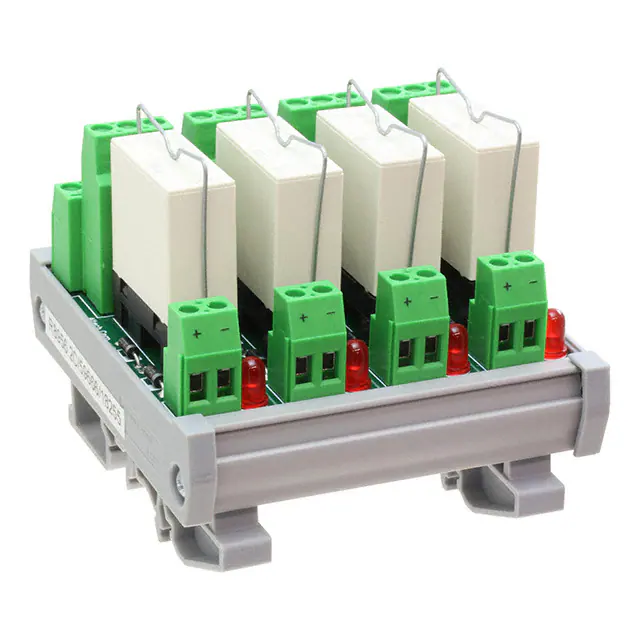

8956.2CRM2G4 4 CHANNEL SAFETY RELAY MOD |
2,296 |
|
数据手册 |
RM2 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 400VAC, 250VDC - Max | - | Screw Terminal | 19.2 VDC | - | 15 ms | 12 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|

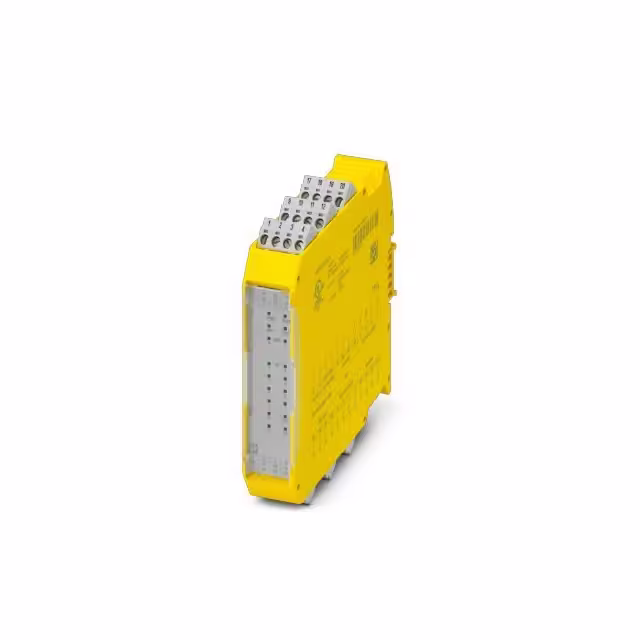

1104885SAFE EXTENSION MODULE WITH 12 SA |
4,236 |
|
数据手册 |
PSR | Box | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 800 mA | 24VDC - Nom | Diode, Lighted Indicator | Screw Terminal | - | - | - | - | -10°C ~ 55°C | - |
|
1105014SAFE EXTENSION MODULE FOR MONITO |
1,293 |
|
数据手册 |
PSR | Box | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | - | - | Diode, Lighted Indicator | Screw Terminal | - | - | - | - | -10°C ~ 55°C | - |
|

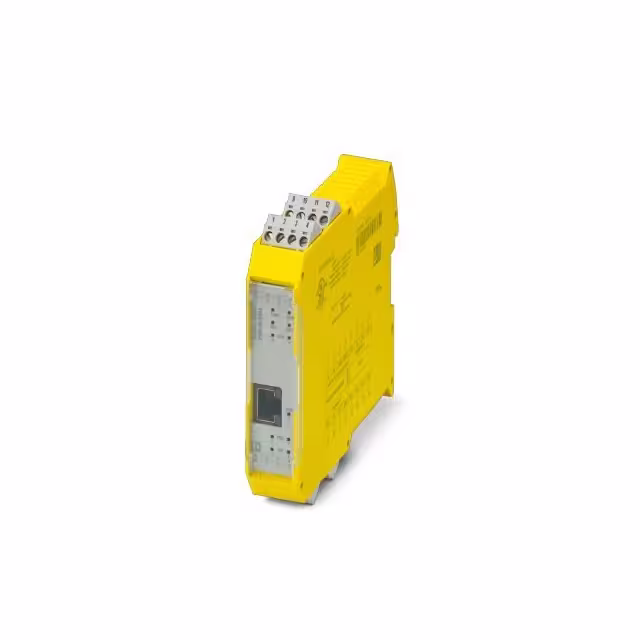

1105011SAFE EXTENSION MODULE FOR MONITO |
4,759 |
|
数据手册 |
PSR | Box | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | - | - | Diode, Lighted Indicator | Screw Terminal | - | - | - | - | -10°C ~ 55°C | - |
|
|
2700398PSR-PS40-1NO-1DO-24DC-SC |
2,917 |
|
数据手册 |
- | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
3RQ10001GB00COUPLING RELAY IM |
4,102 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 2 A | 250VAC, 24VDC - Max | - | Screw Terminal | 19.2 VDC | - | 15 ms | 35 ms | -25°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) |
|
|
2700553PSR-MC50-3NO-1DO-24DC-SC |
3,308 |
|
数据手册 |
- | Bulk | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Screw Terminal | - | - | - | - | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
|
2700564PSR-MC50-3NO-1DO-24DC-SP |
2,789 |
|
数据手册 |
- | Bulk | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 6 A | 250VAC, 250VDC - Max | Lighted Indicator | Spring Terminal | - | - | - | - | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
|
3RQ10002HW00COUPLING RELAY IM |
3,110 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24 ~ 240VAC/DC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 1.5 A | 250VAC - Max | - | Spring Terminal | - | - | 50 ms | 60 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
3RQ10001LW00COUPLING RELAY IM |
2,242 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24 ~ 240VAC/DC | 5PST-4NO/1NC (4 Form A, 1 Form B) | 1.5 A | 250VAC - Max | - | Screw Terminal | - | - | 50 ms | 60 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
XPSUAB11CCSAFETY MODULE UAB CAT.2 24V SPRI |
4,884 |
|
数据手册 |
Harmony XPS | Box | Active | DIN Rail | 24VAC/DC | - | 3 A | - | Lighted Indicator | Spring Terminal | - | - | - | - | -25°C ~ 55°C | - |
|
|
2702096PSR-MC72-2NO-1DO-24DC-SC |
3,020 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC - Max | Diode, Lighted Indicator | Screw Terminal | 19.2 VDC | - | 35 ms | 25 ms | -35°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
2702412PSR-MC37-3NO-1NC-24DC-SP |
1,736 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Spring Terminal | 19.2 VDC | - | 100 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
SRS4-2NOLIGHT CURTAIN |
2,618 |
|
数据手册 |
SRS | Box | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 125VDC - Max | Lighted Indicator | Screw Terminal | - | - | 20 ms | - | -30°C ~ 55°C | - |
