安全继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 特性 | 端接样式 | 必须动作电压 | 必须释放电压 | 工作温度 | 触点材料 | 动作时间 | 释放时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SK11111AW20SAFETY RELAY,3NO,1NC,110-230VAC, |
3,676 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 110 ~ 240VAC/DC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 5 A | 230VAC, 24VDC - Max | - | Screw Terminal | - | - | - | - | -25°C ~ 60°C | - |
|
|
3SK11112AB30SAFETY RELAY,3NO,1NC,24V AC/DC,S |
2,412 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VAC/DC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 5 A | 230VAC, 24VDC - Max | - | Spring Terminal | 20.4 VAC/DC | - | - | - | -25°C ~ 60°C | - |
|
|
1100696RELY |
4,098 |
|
数据手册 |
ReLy | Bulk | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 6 A | 230VAC, 230VDC - Max | Lighted Indicator | Spring Terminal | 16.8 VDC | - | 79 ms | - | -25°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
3SK11211AB40SAFETY RELAY,3NO+1NC,24VDC,SCREW |
4,032 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 5 A | 230VAC, 24VDC - Max | - | Screw Terminal | 19.2 VDC | - | - | - | -25°C ~ 60°C | - |
|
|
1100692RELY |
1,679 |
|
数据手册 |
ReLy | Bulk | Active | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 6 A | 230VAC, 230VDC - Max | Lighted Indicator | Spring Terminal | 16.8 VDC | - | - | - | -25°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
3SK11211CB42SAFETY RELAY ADV,2INS NO+2D NO,2 |
3,924 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 3 A | 230VAC, 24VDC - Max | - | Screw Terminal | 19.2 VDC | - | - | - | -25°C ~ 60°C | - |
|
|
3SK11211CB41SIRIUS SAFETY RELAY ADV REL 2NO+ |
2,526 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 3 A | 230VAC, 24VDC - Max | - | Screw Terminal | 19.2 VDC | - | - | - | -25°C ~ 60°C | - |
|
|
3SK11212CB41SAFETY RELAY ADV,2INS NO+2D NO,2 |
3,859 |
|
数据手册 |
SIRIUS | Box | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 3 A | 230VAC, 24VDC - Max | - | Spring Terminal | 19.2 VDC | - | - | - | -25°C ~ 60°C | - |
|

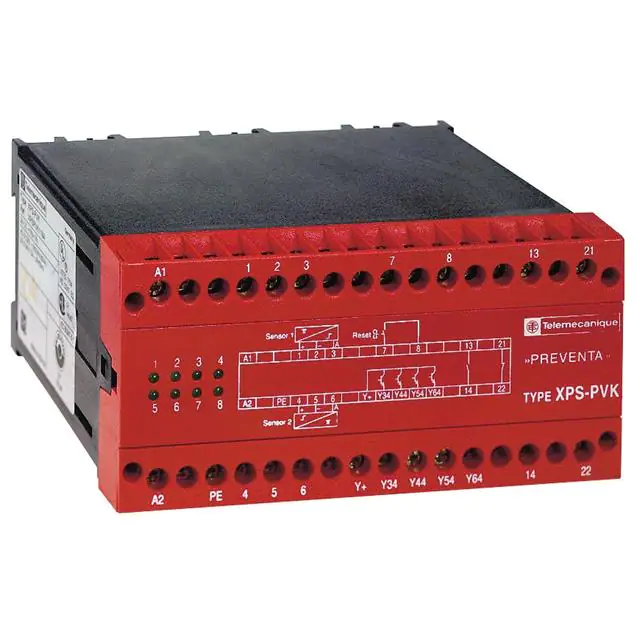

XPSPVK1184MODULE XPSPV - DOUBLE-BODIED SOL |
2,716 |
|
数据手册 |
Preventa | Box | Active | DIN Rail | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | - | - | Lighted Indicator | Screw Terminal | - | - | - | - | -10°C ~ 55°C | - |
|
|
2702357PSR-MM30-2NO-2DO-24DC-SC |
4,217 |
|
数据手册 |
PSR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | Diode, Lighted Indicator | Screw Terminal | 20.4 VDC | - | 200 ms | - | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
XPSOT3444MODULE XPSOT - STOP AT TOP DEAD |
1,006 |
|
数据手册 |
Preventa | Box | Active | DIN Rail | 115VAC | 3PST-2NO/1NC (2 Form A, 1 Form B) | - | - | Lighted Indicator | Screw Terminal | - | - | - | - | -10°C ~ 55°C | - |
|
|
56.5669.REDIODE MODULE FOR DIN RAIL SOCKET |
1,679 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V23050-A1021-A533RELAY SAFETY 6PST 8A 21V |
4,811 |
|
数据手册 |
SR6, SCHRACK | Bulk | Discontinued at Digi-Key | Through Hole | 21VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 400VAC - Max | - | PC Pin | 15.8 VDC | 2.1 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
50.14.9.024.4310RELAY WITH FORCIBLY GUIDED CONTA |
2,899 |
|
数据手册 |
50 | Bulk | Active | Through Hole | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | Sealed - Flux Protection | PC Pin | 18 VDC | 2.4 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
V23050A1040A542RELAY SAFETY |
2,921 |
|
数据手册 |
- | Bulk | Active | Through Hole | 40VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | - | PC Pin | 30 VDC | 4 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
ASFM0212SRELAY SAFETY DPST NONC 6A/3A 21V |
2,889 |
|
数据手册 |
SF-M | Tube | Active | Through Hole | 21VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC, 125VDC - Max | Sealed - Flux Protection | PC Pin | 15.75 VDC | 2.1 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
SFY5-DC5VRELAY SAFETY 6PST 6A 5V |
3,173 |
|
数据手册 |
SF-Y | Bulk | Active | Through Hole | 5VDC | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6 A | 250VAC, 30VDC - Max | - | PC Pin | 3.75 VDC | 0.75 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|

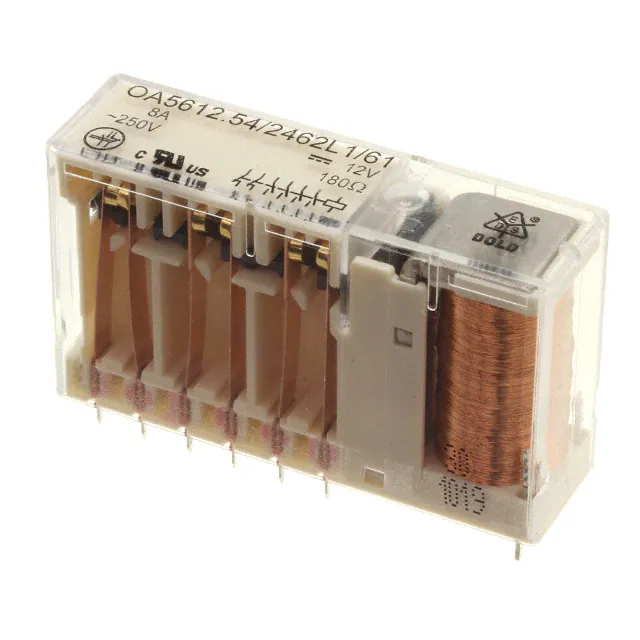

56.OA12.1242COA561212V 4NO/2NC AGSN02+02UMAU |
3,104 |
|
数据手册 |
OA | Bulk | Active | Through Hole | 12VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC, 250VDC - Max | - | PC Pin | 8.4 VDC | - | 20 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|

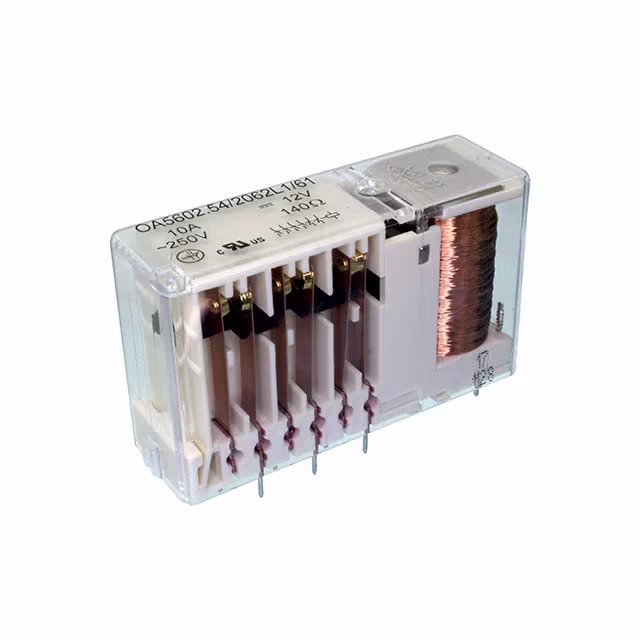

56.OA02.1242COA560212V 4NO/2NC AGSN02+02UMAU |
3,603 |
|
数据手册 |
OA | Bulk | Active | Through Hole | 12VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 10 A | 400VAC, 250VDC - Max | - | PC Pin | 8.4 VDC | - | 27 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
56.OA03.1253COA560312V 5NO/3NC AGSN02+02UMAU |
3,199 |
|
数据手册 |
OA | Bulk | Active | Through Hole | 12VDC | 8PST-5NO/3NC (5 Form A, 3 Form B) | 10 A | 400VAC, 250VDC - Max | - | PC Pin | 8.4 VDC | - | 27 ms | 5 ms | -40°C ~ 75°C | Silver Tin Oxide (AgSnO), Gold (Au) |
