旋转开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 位置数量 | 索引停止点 | 甲板数量 | 每甲板的极数 | 每甲板的电路 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 面板后深度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

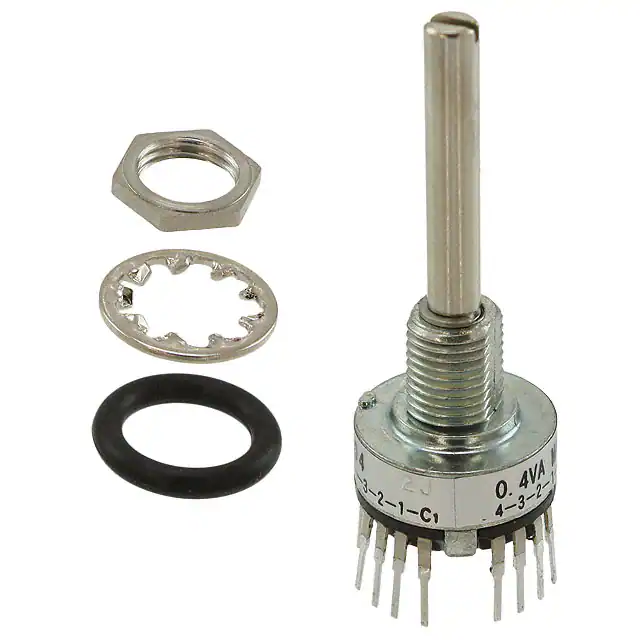

MRJE3404SWITCH ROTARY 4POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
279 |
|
数据手册 |
MRJ | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 8.13mm |
|

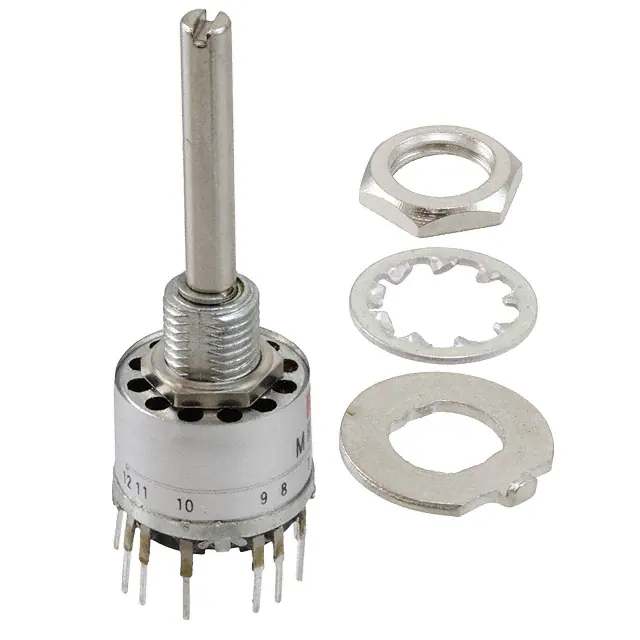

MRJ11204SWITCH ROTARY 2-12POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
440 |
|
数据手册 |
MRJ | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 11.20mm |
|
MRJ3404SWITCH ROTARY 2-4POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,195 |
|
数据手册 |
MRJ | Bulk | Obsolete | 2 ~ 4 | - | 1 | 3 | 3P4T | - | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia) | - | 30° | - | - | Panel Mount, Through Hole | PC Pin | - | - |
|

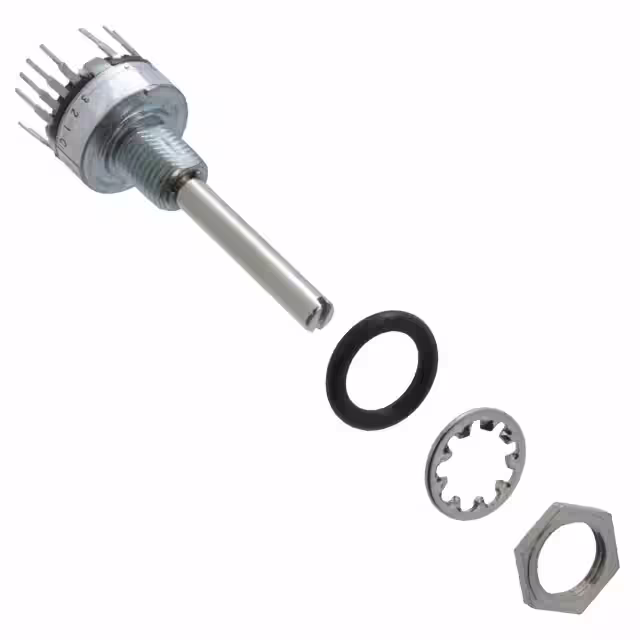

MRJE2604SWITCH ROTARY 6POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,461 |
|
数据手册 |
MRJ | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 8.13mm |
|
436022-1SWITCH ROTARY 10POS 125MA 115V TE Connectivity ALCOSWITCH Switches |
1,753 |
|
数据手册 |
3100 | Bulk | Active | 10 | Continuous | 1 | - | BCD Complement | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 36° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|

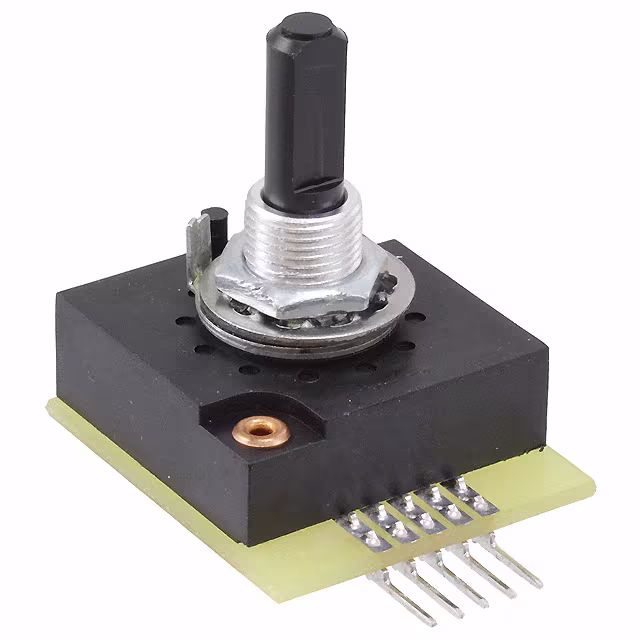

436037-1SWITCH ROTARY 12POS 125MA 115V TE Connectivity ALCOSWITCH Switches |
2,367 |
|
数据手册 |
3100 | Bulk | Active | 12 | Continuous | 1 | - | BCD | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
447615-1SWITCH ROTARY 20/36POS TE Connectivity ALCOSWITCH Switches |
3,101 |
|
数据手册 |
3510 | Bulk | Discontinued at Digi-Key | 20, 36 | Fixed | 6 | - | - | Not Specified | - | - | - | Concentric (3.17mm Dia, 6.35mm Dia) | 84.10mm | 18° | - | - | Panel Mount, Through Hole | PC Pin | - | - |
|
|
MRJB112SWITCH ROTARY 12POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,430 |
|
数据手册 |
MRJ | Bulk | Obsolete | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | 1.02mm | 30° | Nickel | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals | 7.62mm |
|
|
MRJ112SWITCH ROTARY 2-12POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,540 |
|
数据手册 |
MRJ | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 11.20mm |
|
|
MRJ34SWITCH ROTARY 2-4POS 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,679 |
|
数据手册 |
MRJ | Bulk | Obsolete | 2 ~ 4 | Adjustable | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 11.20mm |
