旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB5041S28POT 500K OHM 2W CARBON R-LOG |
4,835 |
|
数据手册 |
K | Bulk | Active | 500k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KB1051S28POT 1M OHM 2W CARBON R-LOG |
4,719 |
|
数据手册 |
K | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
KKA2531S28POT 25K OHM 2W CARBON LOG |
4,091 |
|
数据手册 |
KK | Bulk | Active | 25k | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKA5031S28POT 50K OHM 2W CARBON LOG |
1,300 |
|
数据手册 |
KK | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKA1041S28POT 100K OHM 2W CARBON LOG |
1,225 |
|
数据手册 |
KK | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKA2541S28POT 250K OHM 2W CARBON LOG |
1,226 |
|
数据手册 |
KK | Bulk | Active | 250k | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKA5041S28POT 500K OHM 2W CARBON LOG |
1,454 |
|
数据手册 |
KK | Bulk | Active | 500k | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKA1051S28POT 1M OHM 2W CARBON LOGARITHMIC |
2,595 |
|
数据手册 |
KK | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKB5031S28POT 50K OHM 2W CARBON R-LOG |
3,613 |
|
数据手册 |
KK | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKB1041S28POT 100K OHM 2W CARBON R-LOG |
1,282 |
|
数据手册 |
KK | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKB2541S28POT 250K OHM 2W CARBON R-LOG |
2,569 |
|
数据手册 |
KK | Bulk | Active | 250k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKB5041S28POT 500K OHM 2W CARBON R-LOG |
4,001 |
|
数据手册 |
KK | Bulk | Active | 500k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
KKB1051S28POT 1M OHM 2W CARBON R-LOG |
3,298 |
|
数据手册 |
KK | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 2 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

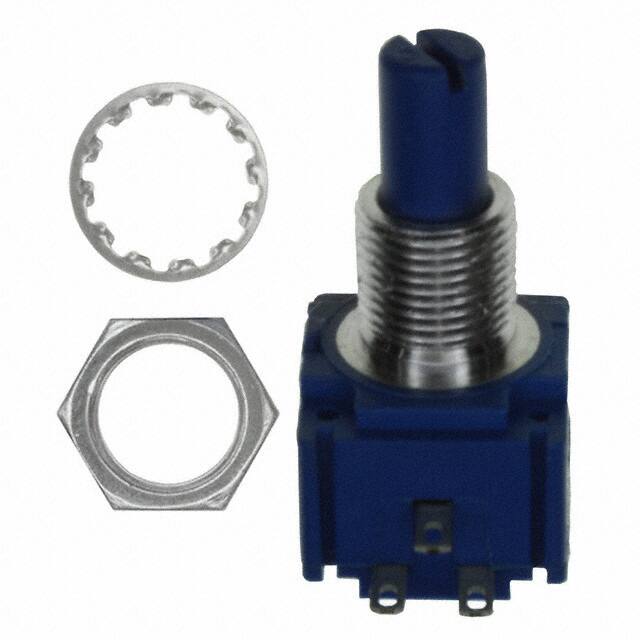

95A1A-B24-A15POT 10K OHM 2W CERMET LINEAR |
3,487 |
|
数据手册 |
95 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAA-B24-B20POT 100K OHM 1/2W PLASTIC LINEAR |
2,543 |
|
数据手册 |
Pro Audio 51 | Bulk | Obsolete | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

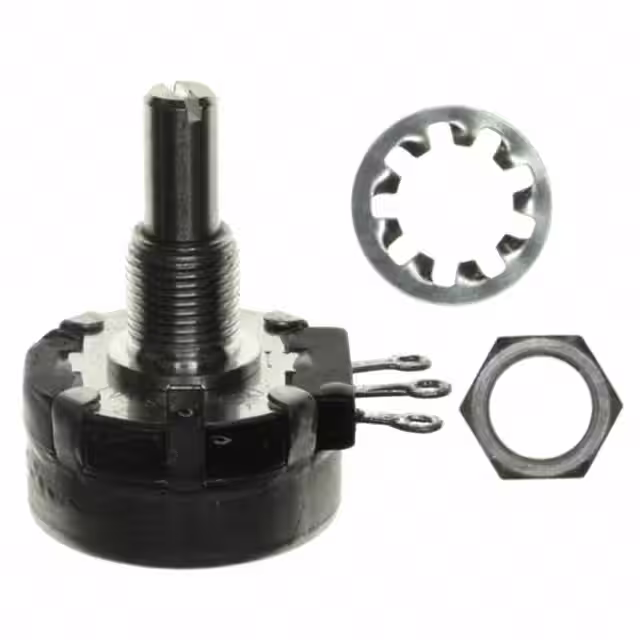

385500M1246POT 250K OHM 2W PLASTIC LOG |
1,255 |
|
数据手册 |
RV4 | Bulk | Obsolete | 250k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RV4NAYSJ503APOT 50K OHM 2W CARBON LINEAR |
1,647 |
|
数据手册 |
RV4 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P9A1R100FISX1102MAPOT 1K OHM 1/10W PLASTIC LINEAR |
3,468 |
|
数据手册 |
P9 | Bulk | Obsolete | 1k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P9A1R100FISX1103MAPOT 10K OHM 1/10W PLASTIC LINEAR |
3,403 |
|
数据手册 |
P9 | Bulk | Obsolete | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P9A2R100FISX1102MAPOT 1K OHM 1/20W PLASTIC LINEAR |
1,608 |
|
数据手册 |
P9 | Bulk | Obsolete | 1k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
