旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

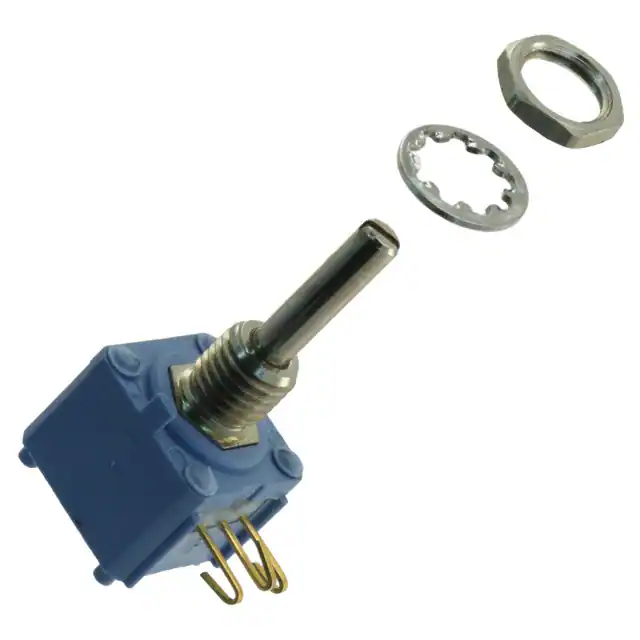

308N500POT 500 OHM 1/2W PLASTIC LINEAR |
2,394 |
|
数据手册 |
308N | Bulk | Obsolete | 500 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Conductive Plastic | Solder Hook | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
308N5KPOT 5K OHM 1/2W PLASTIC LINEAR |
2,959 |
|
数据手册 |
308N | Bulk | Obsolete | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Conductive Plastic | Solder Hook | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
308NPC10KPOT 10K OHM 1/2W PLASTIC LINEAR |
2,613 |
|
数据手册 |
308NPC | Bulk | Obsolete | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
308NPC250POT 250 OHM 1/2W PLASTIC LINEAR |
3,189 |
|
数据手册 |
308NPC | Bulk | Obsolete | 250 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
308NPC2500POT 2.5K OHM 1/2W PLASTIC LINEAR |
3,108 |
|
数据手册 |
308NPC | Bulk | Obsolete | 2.5k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
308NPC25KPOT 25K OHM 1/2W PLASTIC LINEAR |
4,974 |
|
数据手册 |
308NPC | Bulk | Obsolete | 25k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
309NPC1KPOT 1K OHM 1W CERMET LINEAR |
2,544 |
|
数据手册 |
309NPC | Bulk | Obsolete | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
309NPC2.5MEGPOT 2.5M OHM 1W CERMET LINEAR |
4,800 |
|
数据手册 |
309NPC | Bulk | Obsolete | 2.5M | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

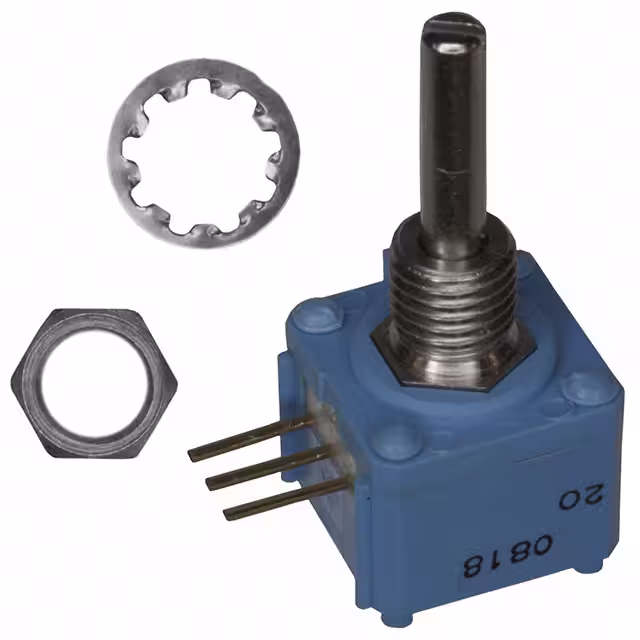

309NPC5KPOT 5K OHM 1W CERMET LINEAR |
3,368 |
|
数据手册 |
309NPC | Bulk | Obsolete | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
53C32KPOT 2K OHM 2W PLASTIC LINEAR |
1,440 |
|
数据手册 |
53C | Bulk | Obsolete | 2k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3310C-001-202POT 2K OHM 1/4W PLASTIC LINEAR |
4,098 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 2k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-502POT 5K OHM 1/4W PLASTIC LINEAR |
3,168 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-103POT 10K OHM 1/4W PLASTIC LINEAR |
2,549 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-203POT 20K OHM 1/4W PLASTIC LINEAR |
2,241 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 20k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-503POT 50K OHM 1/4W PLASTIC LINEAR |
2,559 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 50k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-104POT 100K OHM 1/4W PLASTIC LINEAR |
1,071 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-204POT 200K OHM 1/4W PLASTIC LINEAR |
4,677 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 200k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310C-001-504POT 500K OHM 1/4W PLASTIC LINEAR |
3,175 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 500k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3310Y-001-102POT 1K OHM 1/4W PLASTIC LINEAR |
4,845 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 1k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310Y-001-202POT 2K OHM 1/4W PLASTIC LINEAR |
1,700 |
|
数据手册 |
Pro Audio 3310 | Bulk | Obsolete | 2k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
