旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P160KNP-0EC15A1MEGPOT 1M OHM 1/10W PLASTIC LOG |
3,230 |
|
数据手册 |
P160 | Tray | Active | 1M | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KNP-0QD20B100KPOT 100K OHM 1/5W PLASTIC LINEAR |
3,084 |
|
数据手册 |
P160 | Tray | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KNP-0QC15B10KPOT 10K OHM 1/5W PLASTIC LINEAR |
2,992 |
|
数据手册 |
P160 | Tray | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KN-0QC15B100KPOT 100K OHM 1/5W PLASTIC LINEAR |
2,905 |
|
数据手册 |
P160 | Tray | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KN-0QD15B1KPOT 1K OHM 1/5W PLASTIC LINEAR |
2,431 |
|
数据手册 |
P160 | Tray | Active | 1k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KN-0QC15A1MEGPOT 1M OHM 1/10W PLASTIC LOG |
1,903 |
|
数据手册 |
P160 | Tray | Active | 1M | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KN-0QD15B1MEGPOT 1M OHM 1/5W PLASTIC LINEAR |
1,771 |
|
数据手册 |
P160 | Tray | Active | 1M | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|

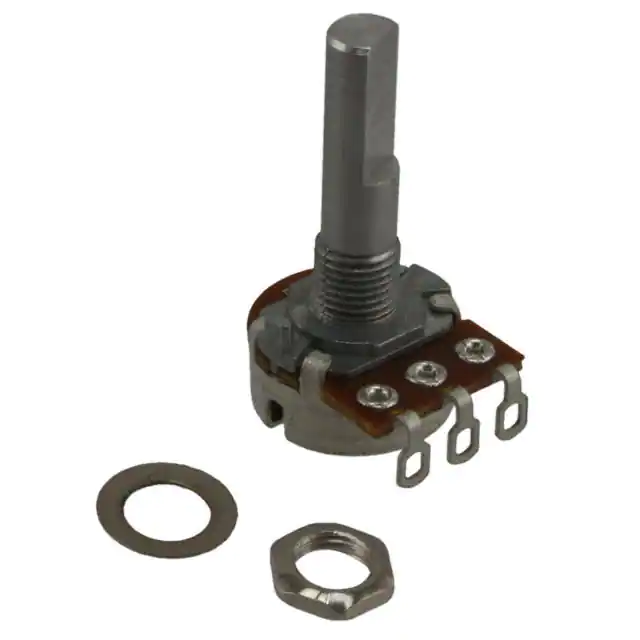

P160KNP-0FC25B5KPOT 5K OHM 1/5W PLASTIC LINEAR |
1,417 |
|
数据手册 |
P160 | Tray | Active | 5k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
P160KNP-0EC15C100KPOT 100K OHM 1/10W PLASTIC R-LOG |
1,214 |
|
数据手册 |
P160 | Tray | Active | 100k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
P160KN-0QC15C100KPOT 100K OHM 1/10W PLASTIC R-LOG |
1,201 |
|
数据手册 |
P160 | Tray | Active | 100k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Reverse Logarithmic | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
P160KNP-0EC15A10KPOT 10K OHM 1/10W PLASTIC LOG |
1,047 |
|
数据手册 |
P160 | Tray | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
P160KNP-0EC15A500KPOT 500K OHM 1/10W PLASTIC LOG |
942 |
|
数据手册 |
P160 | Tray | Active | 500k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|

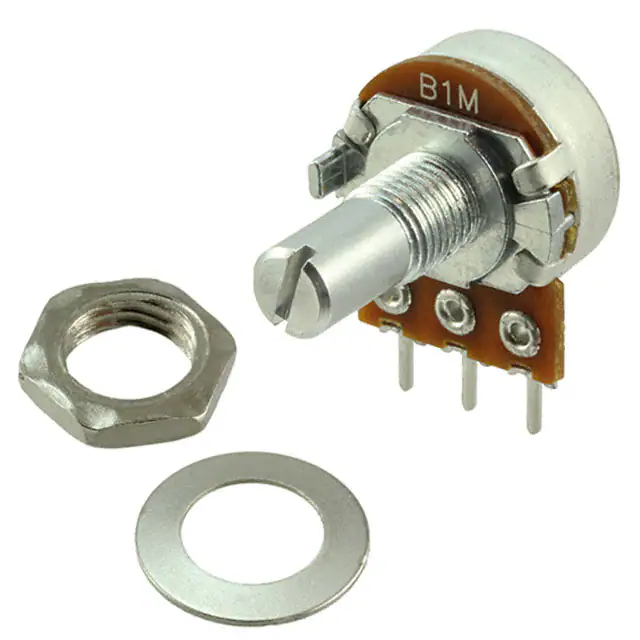

P160KN-0EC15B1MEGPOT 1M OHM 1/5W PLASTIC LINEAR |
745 |
|
数据手册 |
P160 | Tray | Active | 1M | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Conductive Plastic | PC Pins | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
P160KNP-0EC15B2KPOT 2K OHM 1/5W PLASTIC LINEAR |
657 |
|
数据手册 |
P160 | Tray | Active | 2k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
RK09D1130C1BPOT 10K OHM 1/20W LINEAR |
391 |
|
数据手册 |
RK09D | Bulk | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | - | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|

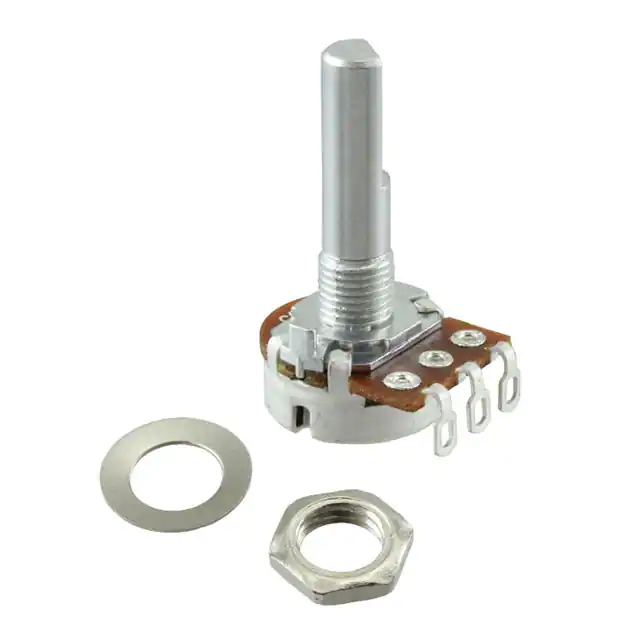

P160KNP-0FC25C10KPOT 10K OHM 1/10W PLASTIC R-LOG |
346 |
|
数据手册 |
P160 | Tray | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
RK09D117000CPOT 10K OHM 1/20W LOGARITHMIC |
326 |
|
数据手册 |
RK09D | Bulk | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 300° | - | PC Pins, Board Locks | Flatted | 1.181" (30.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PTN16-A20115K1B2POT 20K OHM 1/8W CARBON LINEAR |
973 |
|
数据手册 |
PTN16 | Tray | Active | 20k | ±20% | 0.125W, 1/8W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 305° | Carbon | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Through Hole |
|
|
PTN16-A10220K1B2POT 10K OHM 1/8W CARBON LINEAR |
955 |
|
数据手册 |
PTN16 | Tray | Active | 10k | ±20% | 0.125W, 1/8W | Detent | 1.0 | - | Linear | 2 | Side Adjustment | - | 305° | Carbon | PC Pins | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Through Hole |
|
PDB182-GTRB1-504MNPOT 500K OHM 0.06W CARBON LINEAR |
924 |
|
数据手册 |
Pro Audio PDB182-GTRB | Bulk | Active | 500k | ±20% | 0.06W | Detent | 1.0 | - | Linear | 2 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
