摇臂开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 颜色 - 执行器/帽 | 执行器标记 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 防护等级 | 特性 | 面板开孔尺寸 | 工作温度 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2019TZG13SWITCH ROCKER SPDT 0.4VA 28V |
4,894 |
|
数据手册 |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TZW23/UCSWITCH ROCKER SPDT 6A 125V |
1,510 |
|
数据手册 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

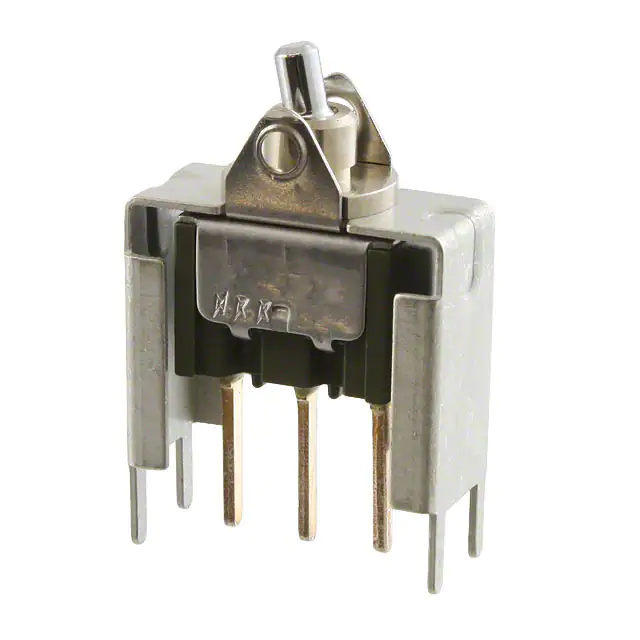

M2012TXW25SWITCH ROCKER SPDT 6A 125V |
4,604 |
|
数据手册 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
D103J12S205QASWITCH ROCKER SPDT 4A 125V |
3,892 |
|
数据手册 |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
JWM11RHHSWITCH ROCKER SPST 10A 125V |
4,771 |
|
数据手册 |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

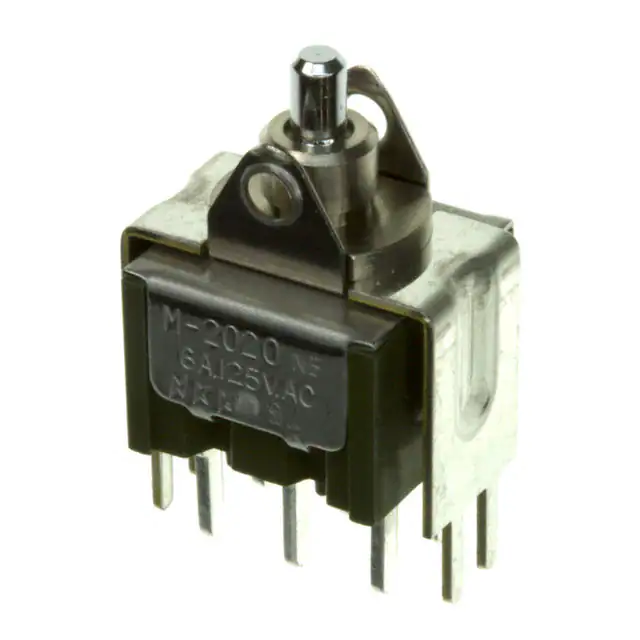

M2024TXW13SWITCH ROCKER SP3T 6A 125V |
3,161 |
|
数据手册 |
M | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
47BWSP4J1M6QTSWITCH ROCKER SPDT 5A 125V |
4,404 |
|
数据手册 |
47B | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
TJW01-GA-1A.jpg)
|
M2026TJW01-GA-1ASWITCH ROCKER SP3T 6A 125V |
1,883 |
|
数据手册 |
M | Tray | Obsolete | Panel Mount, Snap-In | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
AS38S010010SWITCH ROCKER SPDT 4A 125V |
1,050 |
|
数据手册 |
AS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 4A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.65mm x 8.90mm | -40°C ~ 85°C | UL |
|
|
A19KB-CASWITCH ROCKER SPDT 0.4VA 28V |
2,706 |
|
数据手册 |
A | Tray | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A19KB1-CASWITCH ROCKER SPDT 0.4VA 28V |
3,321 |
|
数据手册 |
A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A19KB-CESWITCH ROCKER SPDT 0.4VA 28V |
3,487 |
|
数据手册 |
A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

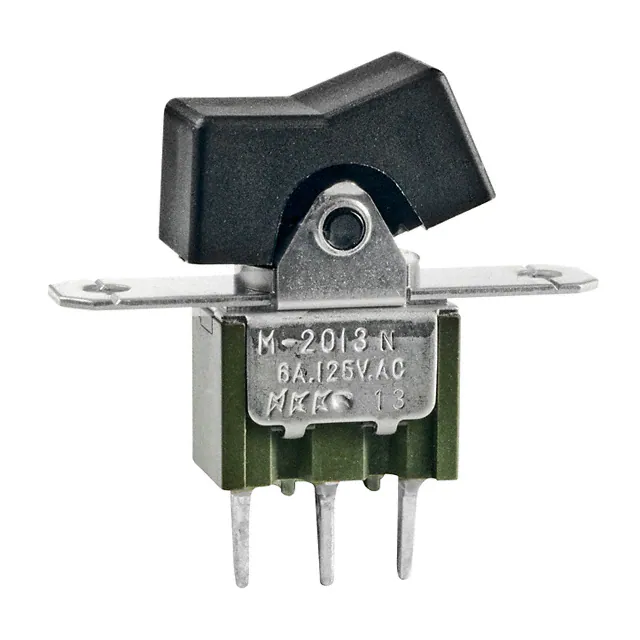

M2013TNW03-DASWITCH ROCKER SPDT 6A 125V |
3,909 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
A23K1WSWITCH ROCKER DPDT 0.4VA 28V |
2,471 |
|
数据手册 |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A19K1B1-EASWITCH ROCKER SPDT 0.4VA 28V |
4,894 |
|
数据手册 |
A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
7101J50V6BE3SWITCH ROCKER SPDT 0.4VA 20V |
2,373 |
|
数据手册 |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
SW3006A/CSWITCH ROCKER DPDT 20A 125V |
4,058 |
|
数据手册 |
SW | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | Dust Proof | - | - | -10°C ~ 70°C | CSA, UL |
|

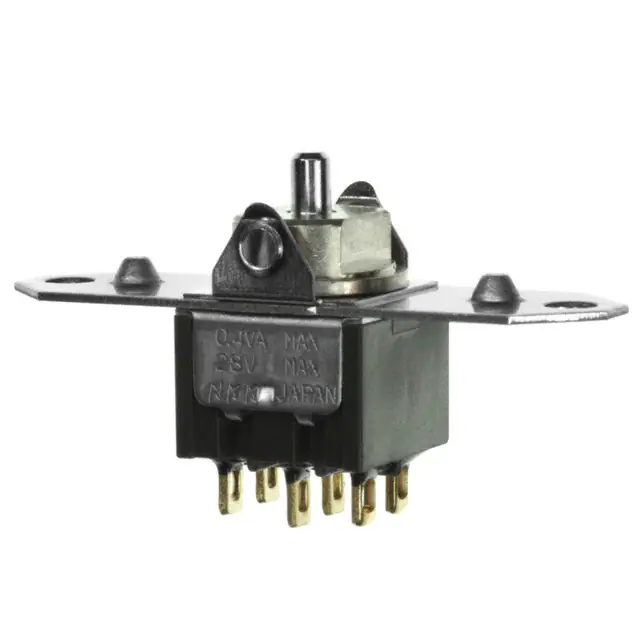

M2023TYG01SWITCH ROCKER DPDT 0.4VA 28V |
3,701 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|

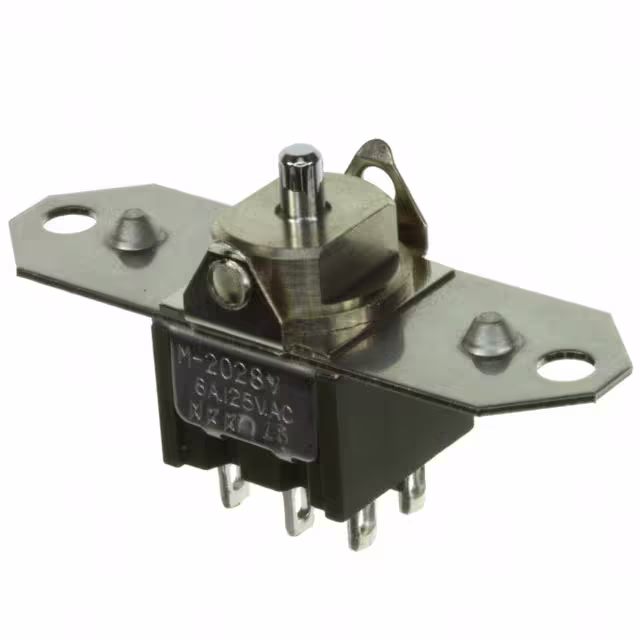

M2028TYW01SWITCH ROCKER DPDT 6A 125V |
4,611 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
JWS21RCASWITCH ROCKER DPST 6A 125V |
1,880 |
|
数据手册 |
JWS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
