射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWPR028-7WR-28 Waveguide Probe Antenna Op |
4,141 |
|
数据手册 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.5 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 2.800" (71.12mm) | General Purpose |
|
|
PEWAN062-15ELNFWR62 GAIN HRN 12.4-18GHZ 15DBI |
4,840 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15ELSFWR62 GAIN HRN 12.4-18GHZ 15DBI |
2,775 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15SMWR62 GAIN HRN 12.4-18GHZ 15DBI |
2,356 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.2 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15SFWR62 GAIN HRN 12.4-18GHZ 15DBI |
2,457 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15NFWR62 GAIN HRN 12.4-18GHZ 15DBI |
4,218 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN112-20ELSFWR112 GAIN HRN 7.05-10GHZ 20DBI |
4,717 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN090-10ELSFWR42 GAIN HRN 8.2-12.4GHZ 10DBI |
1,931 |
|
数据手册 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.630" (41.40mm) | General Purpose |
|
|
PEWAN051-15ELSFWR51 GAIN HRN 15-22GHZ 15DBI |
2,508 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.994" (25.25mm) | General Purpose |
|

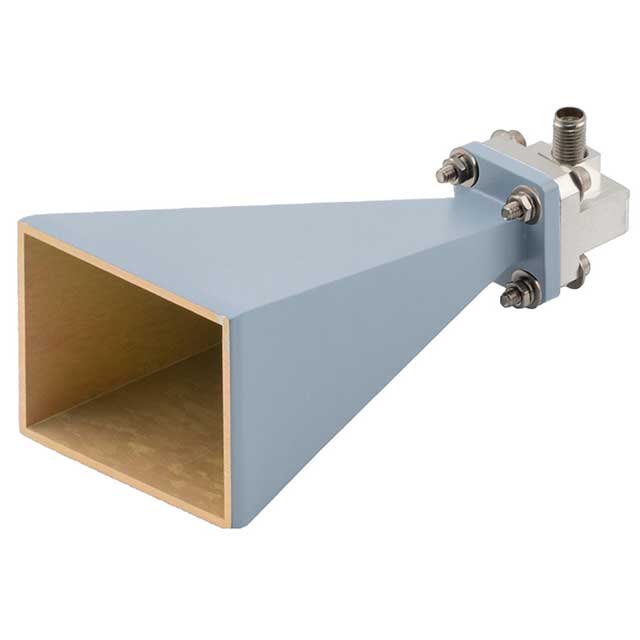

PEWAN034-20KFWR34 GAIN HORN 22-33GHZ 20DBI |
1,745 |
|
数据手册 |
- | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 20dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 4.721" (119.91mm) | - |
|
|
PEWAN042-15KFWR42 GAIN HRN 18-26.5GHZ 15DBI |
4,200 |
|
数据手册 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PEWAN042-15SFWR42 GAIN HRN 18-26.5GHZ 15DBI |
2,769 |
|
数据手册 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PE9861B-10-CPRGWR-187 Waveguide Standard Gain H |
4,243 |
|
数据手册 |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 5.280" (134.11mm) | General Purpose |
|
|
PE9860B-20-CPRGWR-159 Waveguide Standard Gain H |
3,910 |
|
数据手册 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 15.050" (382.27mm) | General Purpose |
|
|
PEWAN042-20SFWR42 GAIN HRN 18-26.5GHZ 20DBI |
1,823 |
|
数据手册 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.524" (38.70mm) | General Purpose |
|
|
PEWAN051-20ELSFWR51 GAIN HRN 15-22GHZ 20DBI |
4,383 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.850" (47.00mm) | General Purpose |
|
|
PE9859B-20-CPRGWR-137 Waveguide Standard Gain H |
3,449 |
|
数据手册 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 12.060" (306.32mm) | General Purpose |
|

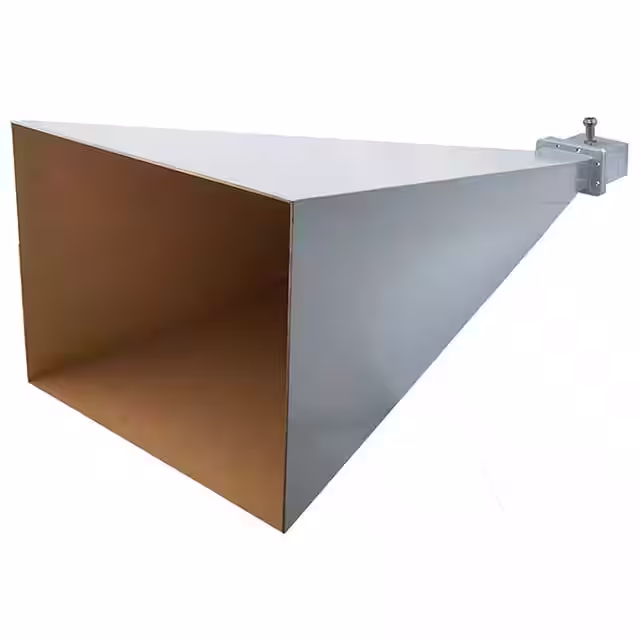

PEWAN229-20NFWR229 GAIN HRN 3.3-4.9GHZ 20DBI |
3,094 |
|
数据手册 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 25.369" (644.37mm) | - |
|
|
PEWAN042-15ELKFWR42 GAIN HRN 18-26.5GHZ 15DBI |
4,123 |
|
数据手册 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PE1WAN034-10WR-34 Waveguide Antenna, 22 GHz |
2,336 |
|
数据手册 |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.23 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 2.756" (70.00mm) | General Purpose |
