射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

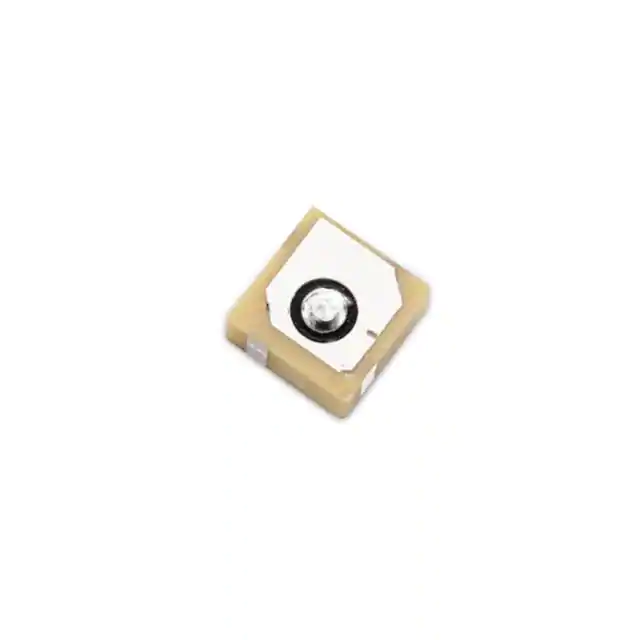

ANT1020RF ANT 1572MHZ CERAMIC PATCH PI |
4,783 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 2 | -10dB | -1.2dBi, -3dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GPS |
|
PE51143Paddle Portable Dual Band Band A |
2,696 |
|
数据手册 |
- | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 3.5dBi, 6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.920" (124.97mm) | General Purpose |
|
|
YMA8-456ALPWA/LTE Terminal Mount /4 Anten |
4,255 |
|
数据手册 |
- | Retail Package | Active | 802.15.4, Cellular | Wide Band | - | - | Omni-Directional | - | - | - | - | - | - | Solder | - | - | - | Through Hole | 0.197" (5.00mm) | 2G, 3G, 4G, Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|

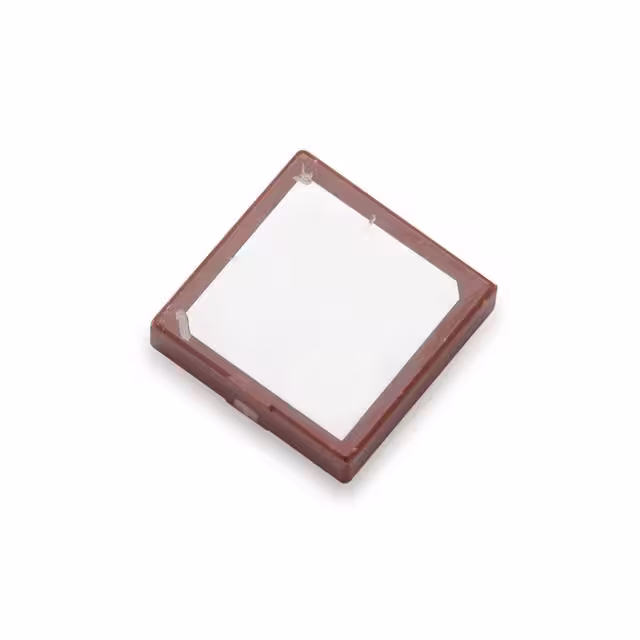

ANT1038RF ANT 1584MHZ CERAMIC PATCH PI |
1,926 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.8 | -10dB | -1dBi, 0dBi | - | - | Solder | - | - | - | Adhesive | 0.079" (2.00mm) | GLONASS, GPS |
|
|
ANT1040RF ANT 1586MHZ CERAMIC PATCH PI |
3,868 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.586GHz | 1.583GHz ~ 1.589GHz | Ceramic Patch | 1 | 1.8 | -10dB | 1.7dBi | - | - | Solder | - | - | - | Adhesive | 0.138" (3.50mm) | GPS |
|
|
MEA-868-01-SMA/100-00201-01868 MHz ISM Connector Mount |
4,560 |
|
数据手册 |
- | Tape & Box (TB) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 2.1 | -8.6dB | 2.5dBi | 25 W | - | SMA Male | IP56 | - | - | Magnetic | 1.890" (48.00mm) | ISM |
|
|
ANT1021RF ANT 1604MHZ CERAMIC PATCH PI |
2,196 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 2 | -10dB | -9.8dBi, -5.3dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ANT1022RF ANT 1581MHZ CERAMIC PATCH PI |
4,300 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 2 | -10dB | -5dBi, -4.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GPS |
|
|
MEA-433-01-SMA/100-00229-01433 MHz ISM connector |
4,542 |
|
数据手册 |
- | Tape & Box (TB) | Active | General ISM | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Whip, Straight | 1 | 1.4 | -15dB | -0.6dBi | 25 W | - | SMA Male | IP56 | - | - | Connector Mount | 1.890" (48.00mm) | ISM |
|
|
MPA-184-C/189-00082-01GPS PASSIVE PATCH ANTENNA 18MM |
3,165 |
|
数据手册 |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.85GHz | 1.573GHz ~ 1.585GHz | Ceramic Patch | 1 | 1.1 | -29.2dB | 2.5dBi | - | - | Pin | - | - | - | Adhesive | 0.168" (4.26mm) | GPS, M2M |
|
|
MPA-124-C/189-00079-01GPS PASSIVE PATCH ANTENNA 12MM |
1,537 |
|
数据手册 |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.604GHz | 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.2 | -20dB | -0.3dBic, -0.3dBic | - | - | Pin | - | - | - | - | 0.224" (5.70mm) | GPS |
|
|
MPA-1618/189-00032-01GLOBALSTAR PASSIVE ANTENNA 25M |
1,189 |
|
数据手册 |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.618GHz | - | Ceramic Patch | 1 | - | - | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Globalstar |
|
|
MPA-154-C/189-00081-01GPS PASSIVE PATCH ANTENNA 15MM |
4,338 |
|
数据手册 |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2.4 | -7.5dB | -1dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS, M2M |
|
|
MEA-2410-CM/100-00235-012.4 GHz ISM Ultra-Wideband anten |
3,531 |
|
数据手册 |
- | Tape & Box (TB) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.41GHz ~ 2.49GHz | Whip, Right Angle | 1 | 1.9 | -10dB | 1.5dBi | 25 W | - | SMA Male | IP67 | - | - | Connector Mount | 4.449" (113.00mm) | ISM |
|
|
MEA-2410-FAKRA/100-00277-012.4/5.0 GHz ISM Connector Mount |
3,027 |
|
数据手册 |
- | Tape & Box (TB) | Active | General ISM | Wide Band | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Dome | 2 | 1.3, 3.8 | -17.6dB, -5.4dB | 2.6dBi | 25 W | - | Fakra | IP67 | - | - | Connector Mount | 0.882" (22.40mm) | ISM |
|
|
ANT1007RF ANT 5827MHZ CERAMIC PATCH PI |
1,914 |
|
数据手册 |
- | Tray | Active | WiFi | SHF (f > 4GHz) | 5.827GHz | 5.75GHz ~ 5.85GHz | Ceramic Patch | 1 | 2 | -10dB | 5dBi | - | - | Solder | - | - | - | Adhesive | 0.138" (3.50mm) | WLAN |
|
|
MPA-1516/189-00044-01GPS GLONASS Passive patch Antenn |
3,671 |
|
数据手册 |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 1.5 | - | 5dBic, 5dBic | - | - | Pin | - | - | - | - | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT1029RF ANT 1584MHZ CERAMIC PATCH PI |
3,614 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.8 | -10dB | 3dBi, 4.5dBi | - | - | Solder | - | - | - | Adhesive | 0.118" (3.00mm) | GLONASS, GPS |
|
|
ANT1030RF ANT 1594MHZ CERAMIC PATCH PI |
2,056 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1597GHz ~ 1.607GHz | Ceramic Patch | 3 | 1.5 | -10dB | 5.2dBi, 3.7dBi, 4.9dBi | - | - | Solder | - | - | - | Adhesive | 0.236" (6.00mm) | Beidou, GLONASS, GPS |
|
|
NW-51M2616Coax Type-F Surge Protector |
1,485 |
|
数据手册 |
* | Bulk | Active | VHF, UHF, P25 | - | - | - | - | - | - | - | - | - | Filter | F Type | - | - | - | - | - | - |
