射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCANOM1071698-2700 MHZ OMNI ANTENNA 6.5 DB |
1,529 |
|
数据手册 |
LCAN | Bulk | Active | General ISM | Wide Band | 1.699GHz | 698MHz ~ 2.7GHz | Whip, Straight | 1 | 1.5 | - | 6.5dBi | 100 W | Cable - 4.49m | SMA Male | - | - | - | Connector Mount | 41.460" (105.31cm) | General Purpose |
|
|
LCANOM1070477 MHZ OMNI ANTENNA 6.5 DBI, VE |
2,490 |
|
数据手册 |
LCAN | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 477MHz | 472MHz ~ 482MHz | Whip, Straight | 1 | 2 | - | 6.5dBi | 100 W | Cable - 4.49m | FME Male | - | - | - | Connector Mount | 43.480" (110.44cm) | General Purpose |
|
|
PDQ24496-FNFPANEL,ARTMNT,FIXED,NF 2400-5950M |
2,864 |
|
数据手册 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Panel | 2 | 2 | - | 6.4dBi, 4.8dBi | 1 W | - | N Type Female | IP67 | - | - | Bracket Mount | 1.600" (40.64mm) | 802.11n/ac, Wi-Fi |
|
|
33-7872-07-0000ANTENNA |
1,850 |
|
数据手册 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.237GHz, 1.5815GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 3.8dBic, 4.5dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|
33-HC860-28DUAL BAND, ACTIVE IRIDIUM |
3,658 |
|
数据手册 |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.236GHz, 1.59275GHz | 1.217GHz ~ 1.255GHz, 1.559GHz ~ 1.6265GHz | Helical | 2 | 2 | - | 2.1dBic, 2.2dBic, 2.4dBic, 2.6dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Base Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
33-HC882E-28ANTENNA |
3,739 |
|
数据手册 |
HC600E | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Helical | 1 | - | - | 3.7dBic | - | LNA | MCX Female | - | - | - | Bracket Mount | 1.524" (38.70mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
|
|
33-HC882E-35ANTENNA |
2,725 |
|
数据手册 |
HC600E | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Helical | 1 | - | - | 3.7dBic | - | LNA | MCX Female | - | - | - | Bracket Mount | 1.524" (38.70mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
|
|
33-7882-07ANTENNA |
1,405 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-7882-00-3000ANTENNA |
1,852 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCANGPS1006GNSS PASSIVE ANTENNA LINEAR POLA |
4,044 |
|
数据手册 |
LCAN | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.602GHz | 1.597GHz ~ 1.607GHz | Whip, Straight | 1 | 2.5 | - | -3dBic | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | IP67 | - | - | Connector Mount | 1.750" (44.45mm) | Galileo, GLONASS, GNSS, GPS |
|

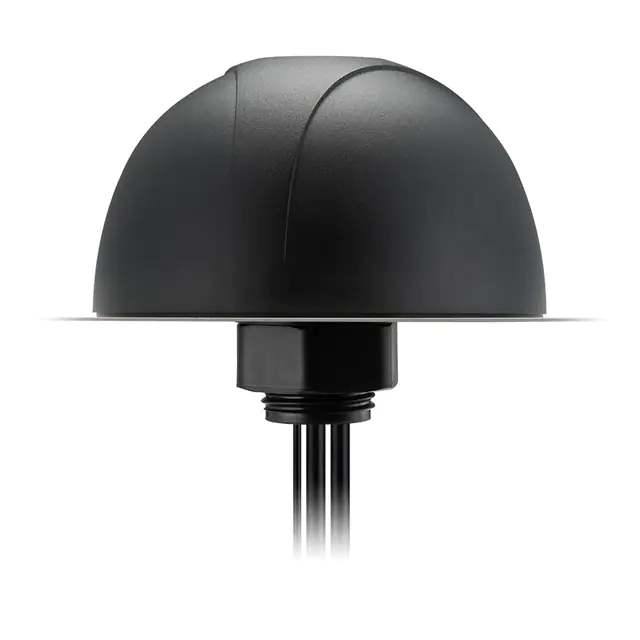

MA705.A.ABC.001PANTHEON MA705 3-IN-1 PERMANENT |
1,666 |
|
数据手册 |
Pantheon | Box | Active | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 750MHz, 860MHz, 1.048GHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.45GHz, 4.85GHz, 5.2GHz, 5.65GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 12 | 1.7, 2 | - | 2.1dBi, 2.5dBi, 3.1dBi, 4dBi, 2.3dBi, 1.6dBi, 2.3dBi, 1.8dBi, 3.9dBi, 5.9dBi, 5.4dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | Beidou, Galileo, GLONASS, LTE, Wi-Fi |
|
|
PAS69278P-30NFPANEL,LOW PIM,NF 698-2700MHZ,8DB |
3,197 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-HC882E-GG33-HC882E-GG |
1,989 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-5352-7-10-05-PCOANTENNA |
3,356 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EAN0920NX890-940 MHZ 5.15 DBI OPEN COIL 1 |
1,293 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EAN0910NB890-940 MHZ 5.15 DBI OPEN COIL 1 |
1,810 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EAN0910SB890-940 MHZ 5.15 DBI OPEN COIL 1 |
1,985 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1324.17.01121324.17.0112 |
3,496 |
|
数据手册 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.35GHz, 2.45GHz, 2.55GHz, 2.65GHz | 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.6GHz, 2.6GHz ~ 2.7GHz | Module | 4 | 1.7 | - | 15.5dBi, 17dBi, 17.5dBi, 18dBi | - | - | N Type Female | IP67 | - | - | Chassis Mount | 12.008" (305.00mm) | 802.11b/g, LTE, WLAN |
|
|
GPS-TMG-HR-40NMSCL-AGPS TIMING ANT, 40DB, HR, WIDE C |
2,525 |
|
数据手册 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Bracket Mount | 5.000" (127.00mm) | GPS |
|
|
FMANKIT1019ANTENNA KIT 8 DBI 20 FT LOW LOSS |
1,136 |
|
数据手册 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 63.500" (161.29cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
