射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S9028PCRJ96RTNPANEL,RHCP,96IN,RTNM |
2,231 |
|
数据手册 |
S9028PCx | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBic | 10 W | Cable - 2.438m | TNC Male | IP54 | - | - | Wall Mount | 1.320" (33.53mm) | General Purpose |
|
|
HG2409MGU-RSPANTMAGMNT 2.4GHZ 8.5DBI |
3,214 |
|
数据手册 |
HG | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.43GHz | 2.36GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8.5dBi | 100 W | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 21.000" (533.40mm) | 802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
RE09U-RTPREANTOMNI 2.4GHZ 8DBI MAGMNT |
4,380 |
|
数据手册 |
RE | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.36GHz, 2.4GHz | - | Whip, Straight | 2 | - | - | 9dBi, 9dBi | - | Cable - 1.2192m | RP-TNC | - | - | - | Connector Mount | 20.410" (518.41mm) | 802.11b/g/n, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
LCANKIT1005ANTOMNI 900MHZ 6DBI CARP-SMA M/N |
3,257 |
|
数据手册 |
LCAN | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | - | - | 6dBi | - | Cable - 3.05m | N Type Male, RP-SMA Male | - | - | - | Bracket Mount | - | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
VLQ24593BN4N-518BRF ANT 2.4GHZ/5.4GHZ PUCK PNL MT |
2,148 |
|
数据手册 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Puck | 2 | 2 | - | 2.2dBi, 3.5dBi | 10 W | Cable - 5.18m | RP-SMA Male (4) | IP67 | - | - | Panel Mount | 1.520" (38.61mm) | Wi-Fi |
|
|
LCANKIT1033HG906U-PRO ANTOMNI 800MHZ 6DBI, |
3,966 |
|
数据手册 |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 40.000" (101.60cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
LCANKIT1003ANTOMNI 900MHZ 3DBI CARP-SMA M/N |
4,388 |
|
数据手册 |
LCAN | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | - | - | 3dBi | - | Cable - 6.096m | RP-SMA Male | - | - | - | Bracket Mount | - | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
KG2/70CXPLANT ONGLS 2.4-4.5DB144-148-442 |
1,043 |
|
数据手册 |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 146MHz, 445MHz | 144MHz ~ 148MHz, 442MHz ~ 448MHz | Whip, Straight | 2 | - | -10dB | 2dBi, 2dBi | 100 W | Cable - 355.6mm | PL-259 | - | - | - | Magnetic | 32.750" (831.85mm) | - |
|
|
HG2438-18XP-4NF2400-2500 / 3450-3800 MHZ, 16 / |
3,051 |
|
数据手册 |
HG | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 3.625GHz | 2.4GHz ~ 2.5GHz, 3.45GHz ~ 3.8GHz | Panel | 2 | 2 | - | 15.5dBi, 18dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (4) | - | - | - | Mast Mount | 1.380" (35.05mm) | CBRS, LTE, Wi-Fi, WISP, WLAN |
|
|
YS1503WRF ANT 162MHZ YAGI N FEM BRKT MT |
3,125 |
|
数据手册 |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 3-Element | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 41.500" (105.41cm) | - |
|

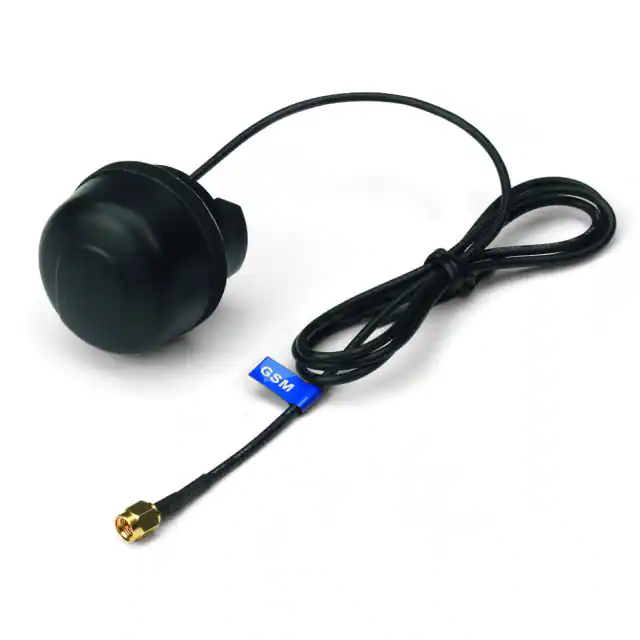

758-962THEFT-PROOF ANTENNA; WITH 1M CAB |
1,472 |
|
数据手册 |
- | Box | Obsolete | Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1800MHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Dome | 6 | - | - | - | - | Cable - 1m | SMA | - | - | - | Magnetic | - | Bluetooth, GSM, UMTS, WLAN |
|
ARM52211MMRF ANT 829MHZ/1.582GHZ MOD MAGNT |
4,988 |
|
数据手册 |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2, 2.5 | - | 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Magnetic | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
ARM52212MMRF ANT 829MHZ/1.582GHZ MOD MAGNT |
3,523 |
|
数据手册 |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2, 2.5 | - | 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Magnetic | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
|
PLC1346NRF ANT 138MHZ YAGI N FEM BRK 72" |
1,653 |
|
数据手册 |
PLC | Bulk | Obsolete | - | VHF (f < 300MHz) | 138MHz | 134MHz ~ 142MHz | Yagi, 6-Element | 1 | - | - | 7.1dBi | 400 W | - | N Type Female | - | - | - | Bracket Mount | 72.008" (182.90cm) | - |
|
|
PLC1666NRF ANT 170MHZ YAGI N FEM BRK 64" |
4,694 |
|
数据手册 |
PLC | Bulk | Obsolete | - | VHF (f < 300MHz) | 170MHz | 166MHz ~ 174MHz | Yagi, 6-Element | 1 | - | - | 7.1dBi | 400 W | - | N Type Female | - | - | - | Bracket Mount | 64.016" (162.60cm) | - |
|
|
FM51OM1025ANTENNA TYPE N PLUG 2.4 MHZ-2.5 |
1,512 |
|
数据手册 |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 7.4dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Connector Mount | 18.400" (467.36mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi |
|
|
FMANKIT1015ANTENNA KIT 6 DBI 20 FT LOW LOSS |
4,481 |
|
数据手册 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 39.764" (1010.00mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
MA600.A.ABC.007RF ANT 850MHZ/900MHZ DOME PNL MT |
4,868 |
|
数据手册 |
Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 2, 1.6 | - | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
|
|
HG2405MGUR-RSPANTMAGMNT 2.4GHZ 5DBI RSP CON |
1,895 |
|
数据手册 |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 5dBi | - | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 14.500" (368.30mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG3509U-PROANTOMNI 3.5GHZ 9DBI |
1,875 |
|
数据手册 |
HG | Bag | Active | WiFi | UHF (3GHz ~ 4GHz) | 3.55GHz | 3.4GHz ~ 3.7GHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 23.620" (599.95mm) | 802.16e, SOFDMA, WiMax, WLAN |
