射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9-8RF ANT 905MHZ WHIP BRKT MT 18" |
1,634 |
|
数据手册 |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 905MHz | 865MHz ~ 945MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 457mm | N Type Female | - | - | - | Bracket Mount | 102.362" (260.00cm) | WiMax™ |
|

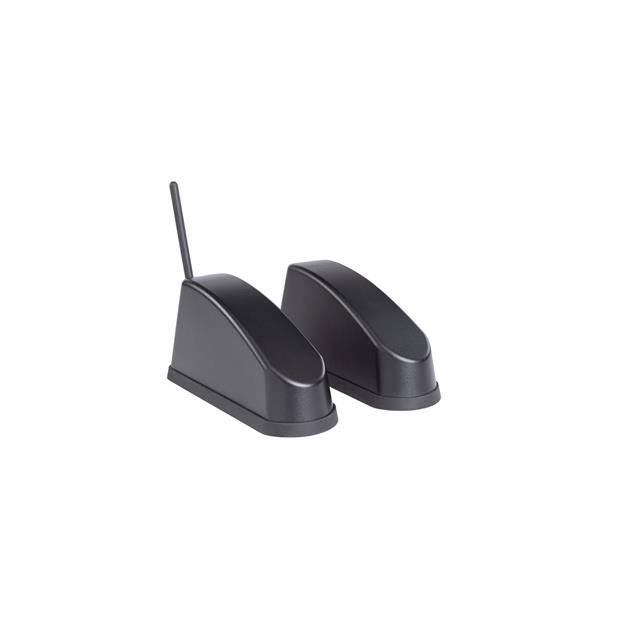

GLPSF-UH350-6X1RF ANT 377.5MHZ MODULE SMA STUD |
1,237 |
|
数据手册 |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 377.5MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 350MHz ~ 405MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.4, 3.5, 3.8, 4.9, 5.1, 6.7 | - | 2dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
GLPSF-UH6X1HBRF ANT 479MHZ MODULE SMA STUD |
4,284 |
|
数据手册 |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 479MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 446MHz ~ 512MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.5, 3.8, 4, 4.9, 5.1, 6.7 | - | 0.7dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
GLPSF-UH6X1LBRF ANT 413MHZ MODULE SMA STUD |
4,708 |
|
数据手册 |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 413MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 380MHz ~ 446MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.3, 3.5, 3.8, 4.9, 5.1, 6.7 | - | 2.8dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
HG913Y-RSPANTYAGI 900MHZ 13DBI |
1,689 |
|
数据手册 |
HG | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 13dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 57.000" (144.78cm) | GSM, ISM, WLAN |
|
|
RE09U-NFREANT OMNI 2.4GHZ 8DBI MAGMT |
1,323 |
|
数据手册 |
RE | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.36GHz, 2.4GHz | - | Whip, Straight | 2 | - | - | 9dBi, 9dBi | - | Cable - 1.2192m | N Type Female | - | - | - | Connector Mount | 20.410" (518.41mm) | 802.11b/g/n, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
HG-2327DP-17EG-NF2.3-2.7GHZ 17DBI 1FT MIMO GRID A |
4,548 |
|
数据手册 |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.3GHz ~ 2.7GHz | Dish | 1 | 2.5 | - | 17dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Bracket Mount | 2.600" (66.04mm) | 802.11b/g/n, ISM, Wi-Fi, WLAN |
|
|
LCANKIT1020ANTPANEL 900MHZ 9DBI CARP-SMA M/ |
1,769 |
|
数据手册 |
LCAN | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Panel | 1 | - | - | 9dBi | - | Cable - 1.829m | N Type Male, RP-SMA Male | - | - | - | Mast Mount | - | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
HG4964-16S-654.9-6.4GHZ, 2-PORT, SLANT POLARI |
2,204 |
|
数据手册 |
HG | Bag | Active | Cellular, WiFi | Wide Band | 5.15GHz, 5.65GHz, 6.15GHz | 4.9GHz ~ 5.4GHz, 5.4GHz ~ 5.9GHz, 5.9GHz ~ 6.4GHz | Sector | 3 | 1.7, 2 | - | 16dBi, 17dBi, 17.5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Mast Mount | 2.690" (68.33mm) | 802.11n, UNII, WiMax |
|
|
MK24-9-UFLRF ANT 2.4GHZ WHIP STR U.FL BRKT |
4,712 |
|
数据手册 |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.5 | - | 9dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Bracket Mount | - | - |
|
|
1399.17.01441399.17.0144 |
3,951 |
|
数据手册 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 895MHz, 1.405GHz, 2.205GHz, 3.25GHz, 4.475GHz, 5.775GHz | 690MHz ~ 1.1GHz, 1.1GHz ~ 1.71GHz, 1.71GHz ~ 2.7GHz, 2.7GHz ~ 3.8GHz, 3.8GHz ~ 5.15GHz, 5.15GHz ~ 6.4GHz | Dome | 6 | 1.5, 1.6, 1.7, 1.8, 2 | - | 2dBi, 6dBi, 6dBi, 6dBi | - | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 2.717" (69.00mm) | CDMA, GSM, LTE, UMTS, WiMax, WLAN |
|
|
9112144091121440 |
4,616 |
|
数据手册 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 417.5MHz | 405MHz ~ 430MHz | Dome | 1 | 2 | - | 2dBi | - | - | N Type Female | IP30 | - | - | Panel Mount | 3.031" (77.00mm) | General Purpose |
|
|
TREK-ANT-201-GWL3ETREK ANTENNA STREAM3IN1 3M MA231 |
2,231 |
|
数据手册 |
TREK | Bulk | Active | Cellular, Navigation | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Module | 2 | - | - | - | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.354" (9.00mm) | CDMA, GLONASS, GPS, GSM, HSPA, LTE, UMTS |
|
|
RE09U-SMREANTOMNI 2.4GHZ 8DBI MAGMNT |
4,307 |
|
数据手册 |
RE | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.36GHz, 2.4GHz | - | Whip, Straight | 2 | - | - | 9dBi, 9dBi | - | Cable - 1.2192m | SMA Male | - | - | - | Connector Mount | 20.410" (518.41mm) | 802.11b/g/n, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
Y8966RF ANT 933MHZ YAGI N FEM BRKT MT |
1,841 |
|
数据手册 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Yagi, 6-Element | 1 | 2 | -10dB | 9dBd | 300 W | - | N Type Female | - | - | - | Bracket Mount | 27.756" (705.00mm) | - |
|
|
MK24-9-RSMARF ANT 2.4GHZ WHIP STR RP-SMA |
3,283 |
|
数据手册 |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.5 | - | 9dBi | - | - | RP-SMA | - | - | - | Bracket Mount | - | - |
|
|
HG2409MGU-NMANTMAGMNT 2.4GHZ 8.5DBI |
1,895 |
|
数据手册 |
HG | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.43GHz | 2.36GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8.5dBi | 100 W | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 21.000" (533.40mm) | 802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
HG4958-07PCRANTFLAT PATCH 4.9-5.8GHZ 7DBI |
2,625 |
|
数据手册 |
HG | Bag | Active | General ISM, WiFi | Wide Band | 5.35GHz | 4.9GHz ~ 5.8GHz | Flat Panel | 1 | - | - | 7dBi | - | - | SMA Female | - | - | - | Ceiling Mount, Wall Mount | 0.900" (22.86mm) | 802.11a, ISM, UNII, Wi-Fi, WLAN |
|
|
76000876ANTENNA SATELLITE 1620MHZ |
2,443 |
|
数据手册 |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.62GHz | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
76000877RF ANT 2.4GHZ/5.2GHZ MODULE CAB |
3,339 |
|
数据手册 |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | - | Module | 2 | - | - | - | - | Cable - 254mm | - | - | - | - | Panel Mount | - | Wi-Fi |
