射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG3510DP3.5GHZ 10 DBI DUAL POLARIZED MIM |
1,888 |
|
数据手册 |
HG | Bag | Active | General ISM | UHF (3GHz ~ 4GHz) | 3.65GHz | 3.5GHz ~ 3.8GHz | Module | 1 | 1.5 | - | 10dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Bracket Mount | 1.300" (33.02mm) | WiMax™, WLAN |
|
DCE9028PRFSMFANTENNA 8DBI 902-928MHZ |
4,672 |
|
数据手册 |
HD RooTenna | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBi | - | - | SMA Female | - | - | - | Bracket Mount | - | - |
|
|
3971D-HR-WGPS, HR, 28DB, LOW NOISE, LOW PR |
4,696 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

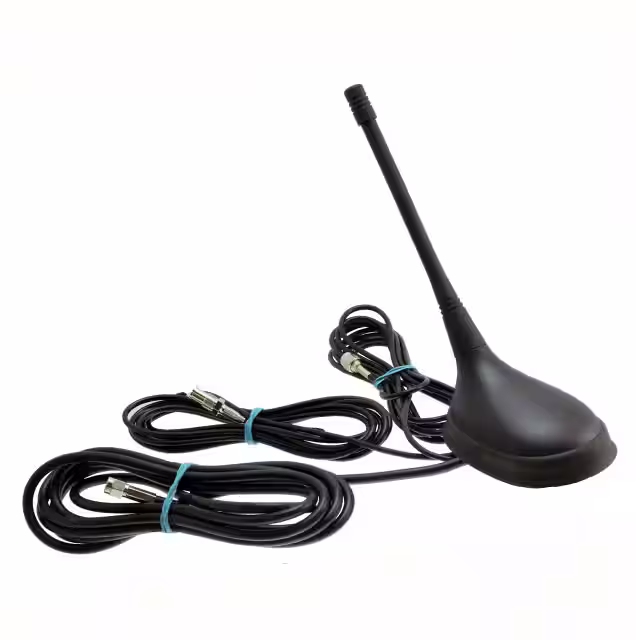

APAMPSLJ-142RF ANT 450/850MHZ WHIP STR PANEL |
4,464 |
|
数据手册 |
APAMPS | Bulk | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 450MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 380MHz ~ 500MHz, 824MHz ~ 960MHz, 1.572GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.497GHz | Whip, Straight | 9 | 2, 3.5, 1.2 | - | 2dBi, 2.2dBi, 2dBic | - | Cable - 2.5m, LNA | SMA Male (2), FME Female (1) | - | - | - | Panel Mount | 6.063" (154.00mm) | AMPS, Bluetooth, CDMA, DCS, GLONASS, GPS, GSM, Tetra, Wi-Fi, WLAN |
|
|
GPSTW821/18503ARF ANT 860MHZ/1.575GHZ DOME ADH |
3,233 |
|
数据手册 |
- | Bulk | Obsolete | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 860MHz, 1.575GHz, 1.9GHz | 824MHz ~ 896MHz, 1.575GHz, 1.85GHz ~ 1.99GHz | Dome | 3 | - | - | 3.5dBd | - | - | - | - | - | - | Adhesive | 0.875" (22.23mm) | GPS |
|
|
2J7A86BGFAMEDUSA 5IN1 5GNR/4G/3G/2G WIFI6 |
1,772 |
|
数据手册 |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MS3E900SMAR/PANT 2 MAG MNT-WHIP ENC 890 |
2,161 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 40 W | Cable - 304.8mm | SMA | - | - | - | Magnetic | 13.000" (330.20mm) | - |
|
|
GD35-25P-NFRF ANT 3.5GHZ GRID CAB BRKT 30" |
4,491 |
|
数据手册 |
- | Bulk | Obsolete | WiFi | UHF (3GHz ~ 4GHz) | 3.5GHz | 3.4GHz ~ 3.6GHz | Parabolic Grid | 1 | 1.5 | - | 25dBi | 100 W | Cable - 762mm | N Type Female | - | - | - | Bracket Mount | 36.000" (914.40mm) | WiMax™ |
|
|
CFSA35606P1-B30NFOMNI,LOW PIM,30CM,NF,HOL |
2,973 |
|
数据手册 |
- | Bulk | Active | Cellular | Wide Band | 435MHz, 780MHz, 1.45GHz, 3.845GHz | 350MHz ~ 520MHz, 600MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 6GHz | Dome | 3 | 2.5 | - | 6dBi | - | Cable - 304.8mm | N Type Female | - | - | - | Ceiling Mount, Wall Mount | 0.300" (7.62mm) | 5G |
|
|
AP-M2M3-CC-Q-S22-BL-1ANTENNA PLUS OPTOMX M2M MIMO ANT |
4,391 |
|
数据手册 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-M2M3-CC-Q-S22-BL-10ANTENNA PLUS OPTOMX M2M MIMO ANT |
4,036 |
|
数据手册 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-M2M2-CC-Q-S22-BL-3ANTENNA PLUS M2MAX V2 MIMO ANTEN |
2,009 |
|
数据手册 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANMOB1001-RTPANTENNA TNC617 MHZ-7.125 GHZ |
4,937 |
|
数据手册 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Dome | 1 | 1.8 | - | 5dBi | 100 W | Cable - 3.05m | RP-TNC | - | - | - | Magnetic | 5.000" (127.00mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
FMANMOB1002-RTPANTENNA TNC617 MHZ-7.125 GHZ |
1,658 |
|
数据手册 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.817GHz | 617MHz ~ 7.125GHz | Dome | 1 | 1.5 | - | 5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-TNC | - | - | - | Magnetic | 5.000" (127.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
FM51OM1023ANTENNA TYPE N JACK 2.4 MHZ-2.5 |
4,480 |
|
数据手册 |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 3dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | IP66 | - | - | Panel Mount | 2.700" (68.58mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2458CU-1-BMANTCEILING OMNI 2.4/5.8GHZ |
4,426 |
|
数据手册 |
HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Module | 2 | - | - | 3dBi, 3dBi | - | - | BNC Male | - | - | - | Ceiling Mount | 2.200" (55.88mm) | 802.11a/b/g/n/ac, WiMax™, WLAN |
|
|
HG2458CU-1-NMANTCEILING OMNI 2.4/5.8GHZ |
3,689 |
|
数据手册 |
HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Module | 2 | - | - | 3dBi, 3dBi | - | - | N Type Male | - | - | - | Ceiling Mount | 2.200" (55.88mm) | 802.11a/b/g/n/ac, WiMax™, WLAN |
|
|
HG2458CU-1-TMANTCEILING OMNI 2.4/5.8GHZ |
4,168 |
|
数据手册 |
HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Module | 2 | - | - | 3dBi, 3dBi | - | - | TNC Male | - | - | - | Ceiling Mount | 2.200" (55.88mm) | 802.11a/b/g/n/ac, WiMax™, WLAN |
|
758-910MAGNETIC FOOT ANTENNA, GSM 900/1 |
4,773 |
|
数据手册 |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 915MHz, 1.795GHz | 870MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 1.5 | - | 0dBi, 0dBi | 20 W | Cable - 2.5m | RP-SMA | - | - | - | Magnetic | - | GSM |
|
|
HG2405P-135-RSPANT PANEL 2.4 GHZ 5 DBI |
2,361 |
|
数据手册 |
HG | Bag | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Module | 1 | - | - | 5dBi | - | Cable - 1.2192m | RP-SMA | - | - | - | Wall Mount | 2.210" (56.13mm) | 802.11b/g, DCS, ISM, PCS, Wi-Fi, WLAN |
