射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP420NMOANT LOW PROFILE UNITY 416-430 |
3,648 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 423MHz | 416MHz ~ 430MHz | Dome | 1 | - | -10dB | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|
|
LP420NMOWANT WHT LO-PROFILE UTY 416-430 |
2,338 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 423MHz | 416MHz ~ 430MHz | Dome | 1 | - | -10dB | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|
|
LP470NMOWANT WHT LO-PROFILE UTY 470-490 |
3,744 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Dome | 1 | - | -10dB | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|
|
B1443RRF ANT 159MHZ WHIP STR NMO BASE |
2,709 |
|
数据手册 |
- | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | - | - |
|
|
HG2420EG-NMANTGRID 2.4GHZ 20DBI |
1,313 |
|
数据手册 |
HG | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Parabolic Grid | 1 | 1.5 | - | 20dBi | 100 W | - | Screw-Mount | - | - | - | Mast Mount | 23.600" (599.44mm) | 802.11b/g/n, ISM, Wi-Fi, WLAN |
|
|
HG2420EG-NFANTGRID 2.4GHZ 20DBI |
1,437 |
|
数据手册 |
HG | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Parabolic Grid | 1 | 1.5 | - | 20dBi | 100 W | - | Screw-Mount | - | - | - | Mast Mount | 23.600" (599.44mm) | 802.11b/g/n, ISM, Wi-Fi, WLAN |
|
|
4GDPSM-W2X LTE, 5 METER MSMA RG-174/U, W |
2,247 |
|
数据手册 |
4GDPSM | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.592GHz, 2.205GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz | Dome | 3 | 2 | - | -6.32dBi, -12.05dBi | - | Cable - 5m, LNA | SMA Male | IP67 | - | - | Connector Mount | 1.575" (40.00mm) | GLONASS, GNSS, GPS, LTE |
|
|
4GDPSM2X LTE, 5 METER MSMA RG-174/U, B |
1,923 |
|
数据手册 |
4GDPSM | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.592GHz, 2.205GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz | Dome | 3 | 2 | - | -6.32dBi, -12.05dBi | - | Cable - 5m, LNA | SMA Male | IP67 | - | - | Connector Mount | 1.575" (40.00mm) | GLONASS, GNSS, GPS, LTE |
|
|
FMANMOB1004-RSPANTENNA SMA136 MHZ-940 MHZ |
1,876 |
|
数据手册 |
- | Bag | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 22.700" (576.58mm) | General Purpose |
|
|
FMANMOB1005-RSPANTENNA SMA136 MHZ-174 MHZ |
2,612 |
|
数据手册 |
- | Bag | Active | WiFi | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 21.100" (535.94mm) | Wi-Fi, WLAN |
|
|
FM51218ANTENNA TYPE N JACK 617 MHZ-6 GH |
2,431 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 0.710" (18.03mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
TRA18503NPRF ANT 1.9GHZ DOME N FEM PAN MT |
3,320 |
|
数据手册 |
Phantom® | Bulk | Obsolete | Cellular, General ISM | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM, PCS |
|
|
HG2409PCR-NFANTFLAT PATCH 2.4GHZ 8DBI |
4,308 |
|
数据手册 |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.5 | - | 8dBic | - | - | Connector | - | - | - | Through Hole | 0.900" (22.86mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
MBX450FIBERGLASS BASE STATION OMNIDIRE |
2,581 |
|
数据手册 |
MXB | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 250 W | - | - | - | - | - | Bracket Mount | 30.000" (762.00mm) | - |
|
|
MBS150144-174,UNITY,OMNIBASE STATION |
2,982 |
|
数据手册 |
MBS | Bulk | Active | General ISM | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | - | 250 W | - | N Type Female | - | - | - | Bracket Mount | 39.800" (101.09cm) | General Purpose |
|
|
BB1443SRF ANT 159MHZ WHIP STR NMO BASE |
2,165 |
|
数据手册 |
- | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 48.125" (122.24cm) | - |
|
|
BB4503RRF ANT 460MHZ WHIP STR NMO BASE |
4,881 |
|
数据手册 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | 3dBi | - | - | NMO | IP67 | - | - | Base Mount | - | - |
|
|
OSCAR10/X/NTYPEF/S/S/19433MHZ ISM BRACKET MOUNT ANTENNA |
4,910 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CFSA69383P-B30D43FOMNI,DBAND,30CM,D43F OD180MM,BUL |
4,908 |
|
数据手册 |
- | Bulk | Active | Cellular | Wide Band | 752MHz, 859MHz, 885MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 890MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.8GHz ~ 4GHz | Flat Panel | 11 | 1.5, 1.8, 2 | - | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 50 W | Cable - 304.8mm | 4.3/10 - Female | - | - | - | Ceiling Mount | 0.300" (7.62mm) | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
|

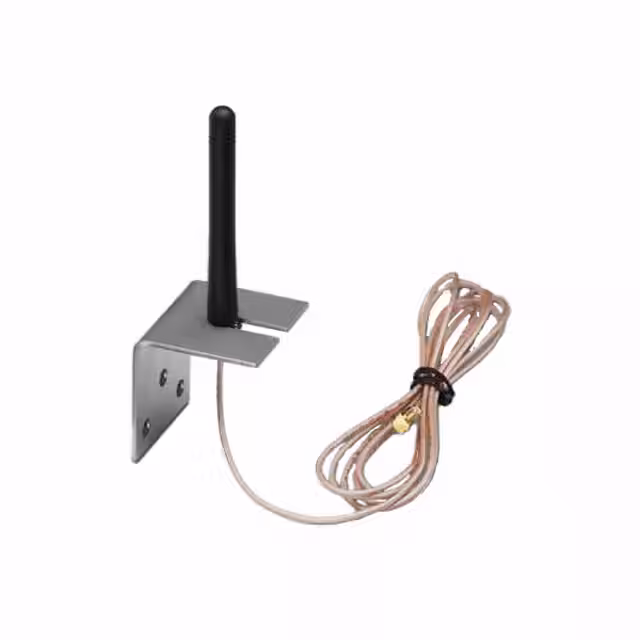

2867461RF ANT 2.4GHZ WHIP STR MCX BRKT |
4,812 |
|
数据手册 |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 2dBi | - | Cable - 1.5m | MCX Male | IP65 | - | - | Bracket Mount | 3.248" (82.50mm) | - |
