射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMANLP1006ANTENNA TYPE N JACK 790 MHZ-2.7 |
1,491 |
|
数据手册 |
- | Bag | Active | Cellular, WiFi | Wide Band | 1.745GHz | 790MHz ~ 2.7GHz | Panel | 1 | 1.7 | - | 11dBi | 100 W | Cable - 300mm | N Type Female | - | - | - | Bracket Mount | 17.400" (441.96mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
33-4722-00-0305ANT GPS/GLONASS/BEIDOU/GALILEO |
2,388 |
|
数据手册 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.5dBic | - | Cable - 305mm, LNA, Filter | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-4722-00-3000ANT GPS/GLONASS/BEIDOU/GALILEO |
2,470 |
|
数据手册 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.5dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | Beidou, Galileo, GLONASS, GPS |
|
|
76000806ANTENNA KIT GPS + SMA/MMCX |
4,185 |
|
数据手册 |
- | Bulk | Obsolete | Navigation | - | - | - | - | - | - | - | - | - | - | SMA | - | - | - | - | - | GPS |
|
PA-915-01RF ANT 915MHZ |
4,516 |
|
数据手册 |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | - | 1 | - | - | 6dBi | 500 mW | - | - | - | - | - | - | - | - |
|

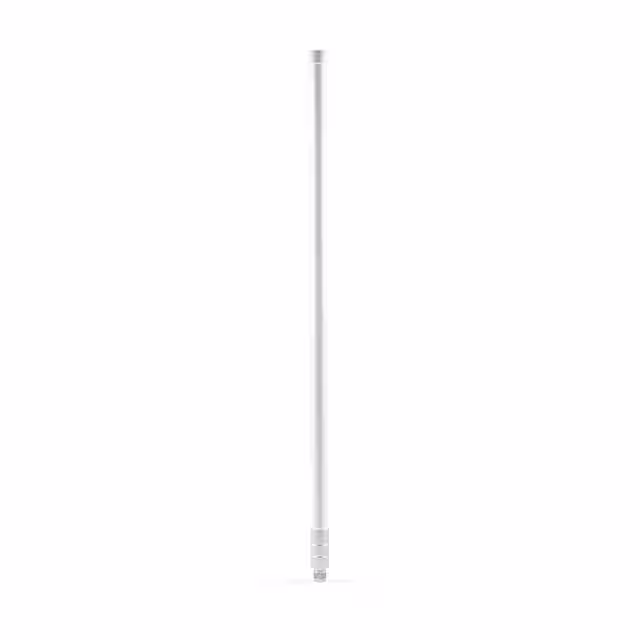

WRL-19274LORA FIBERGLASS ANTENNA TYPE N - |
1,024 |
|
数据手册 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 5.8dBi | - | - | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
HG2409RD-SMANTRUBBER DUCK 2.4GHZ 9DBI |
2,572 |
|
数据手册 |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Male | - | - | - | Connector Mount, Magnetic | 15.120" (384.05mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
CWB1440RF ANT 159MHZ WHIP STR NMO BASE |
4,788 |
|
数据手册 |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
|
NMO30CANTENNA COIL-WHP UTY 30-35 MHZ |
3,228 |
|
数据手册 |
- | Bag | Active | - | VHF (f < 300MHz) | 32MHz | 30MHz ~ 34MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 150 W | - | NMO | - | - | - | Magnetic | 57.500" (146.05cm) | General Purpose |
|
|
HG143PS-NMOANT 3 DBI POLY SPRING VEHICULAR |
4,773 |
|
数据手册 |
HG | Bag | Active | General ISM | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 150 W | - | NMO | - | - | - | Connector Mount | 1.063" (27.00mm) | General Purpose |
|
|
2J6A86BGF-RB-SPHELM 3IN1 5GNR/4G/3G/2G WIFI6 GN |
1,183 |
|
数据手册 |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LCANLP1007806-960 / 1710-2500 MHZ, 9 DBI G |
2,595 |
|
数据手册 |
LCAN | Bag | Active | Cellular, WiFi | Wide Band | 1.653GHz | 806MHz ~ 2.5GHz | Log Periodic | 1 | 1.5 | - | 9dBi | 100 W | Cable - 299.72mm | N Type Female | - | - | - | Bracket Mount | 11.500" (292.10mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
FM51RD1019ANTENNA TNC PLUG 900 MHZ-930 MHZ |
4,429 |
|
数据手册 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 2.5 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-TNC Male | - | - | - | Connector Mount | 0.630" (16.00mm) | IoT, ISM, LoRa, LPWAN, M2M |
|
|
FM51RD1012ANTENNA SMA PLUG 900 MHZ-930 MHZ |
1,361 |
|
数据手册 |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Tilt | 1 | 2.5 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Connector Mount | 15.000" (381.00mm) | ISM |
|
|
FM51RD1010ANTENNA SMA PLUG 900 MHZ-930 MHZ |
4,517 |
|
数据手册 |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 2.5 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA | - | - | - | Connector Mount | 16.000" (406.40mm) | GSM, ISM |
|
|
LM450CANTENNA BASE-WHP 5DB 450-470 MHZ |
1,504 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 200 W | - | UHF | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
|
LM150BANTENNA COIL-WHP 3DB 144-174 MHZ |
4,967 |
|
数据手册 |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | -10dB | 5.14dBi | 200 W | - | - | - | - | - | Magnetic | 51.750" (131.45cm) | - |
|
|
LM825ANT CHR SPG-WHP ENC 3.4DB 825- |
3,325 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 860MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | - | - | - | - | Magnetic | 14.500" (368.30mm) | - |
|
|
LM406CANTENNA BASE-WHP 5DB 406-420 MHZ |
4,723 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 413MHz | 406MHz ~ 420MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | UHF | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
|
LM440CANTENNA BASE-WHP 5DB 440-460 MHZ |
4,643 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 440MHz ~ 460MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | UHF | - | - | - | Magnetic | 33.000" (838.20mm) | - |
