射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

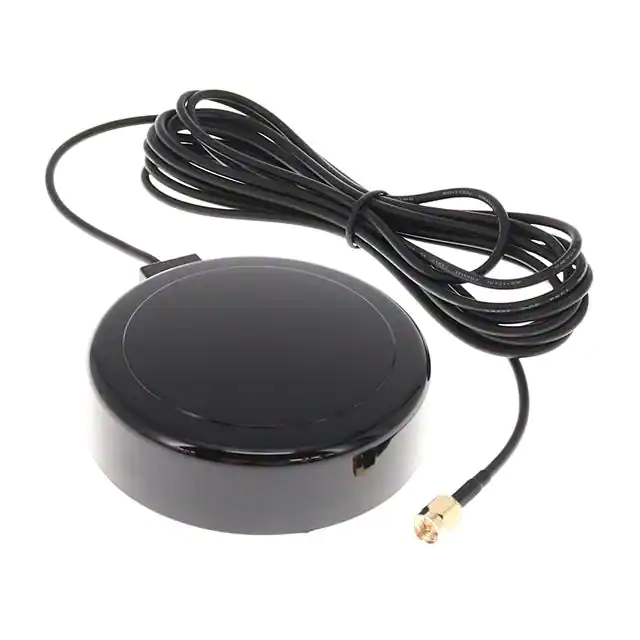

H2MA703F104100ACTIVE ANTENNA HB80DF; GPS(L1+L5 |
1,982 |
|
数据手册 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 4 | - | -10dB | 3.1dBi, 1.5dBi, 1.4dBi, 2dBi | - | Cable - 3m | - | - | - | - | Surface Mount | 1.000" (25.40mm) | BeiDou, Galileo, GLONASS, GPS, QZSS |
|
G825-LMOUNT,MGM,3/4,58A |
4,802 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA24-13RF ANT 2.4GHZ FLAT PNL N FEM |
1,068 |
|
数据手册 |
PA24 | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Flat Panel | 1 | 1.5 | - | 13dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 0.787" (20.00mm) | WiMax™, WLAN |
|
|
MUF9035NGPS896-940,5DB,CCT,NGP,W/SPR,CHR |
1,932 |
|
数据手册 |
MUF NGP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 918MHz | 896MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | 27.500" (698.50mm) | General Purpose |
|
|
HGV-2404U-MMCXANTOMNI 2.4 GHZ, 4 DBI, BLKHD MN |
1,459 |
|
数据手册 |
HGV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | - | - | 4dBi | - | - | MMCX | - | - | - | Mast Mount | 4.900" (124.46mm) | 802.11b/g, Bluetooth, IoT, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
HG245808DP-4RSP362.4/4.9-5.8 GHZ, 8 DBI 4-ELEMENT |
4,739 |
|
数据手册 |
HG | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Flat Panel | 2 | 2 | - | 8dBi, 8dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male (4) | - | - | - | Mast Mount, Wall Mount | 1.400" (35.55mm) | 802.11ax, Wi-Fi, WLAN |
|
|
HG245808DP-4RTP36ANTFLAT PNL 2.4/5GHZ 8DBI |
4,498 |
|
数据手册 |
HG | Bag | Active | WiFi | Wide Band | 2.4GHz, 5.35GHz | 4.9GHz ~ 5.8GHz | Flat Panel | 2 | - | - | - | - | - | N Type Male | - | - | - | Wall Mount | 1.200" (30.48mm) | 802.11a/b/g/n/ac, WLAN |
|
|
B4503RRF ANT 460MHZ WHIP STR NMO BASE |
1,116 |
|
数据手册 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | 3dBi | - | - | NMO | IP67 | - | - | Base Mount | - | - |
|
TRA8903PRF ANT 900MHZ DOME N FEM PAN MT |
3,083 |
|
数据手册 |
Phantom® | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | 890MHz ~ 960MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
|
33-4421-05-5000RF ANT 1.575GHZ/1.602GHZ MODULE |
3,069 |
|
数据手册 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Module | 2 | 1.5 | - | 4.5dBic | - | Cable - 5m, LNA, Filter | MCX Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | GLONASS, GPS |
|
|
33-4421-17-0305RF ANT 1.575/1.602GHZ MOD BNC M |
1,098 |
|
数据手册 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.57GHz ~ 1.61GHz | Module | 1 | 1.8 | - | 26dBi | - | Cable - 305mm, LNA, Filter | - | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | GPS |
|
|
FM51RD1005SMA PLUG 2.4-2.5 GHZ AND 5.1- 5. |
3,284 |
|
数据手册 |
- | Bag | Active | General ISM, WiFi | Wide Band | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.1GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 5dBi, 5dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA | - | - | - | Connector Mount | 8.600" (218.44mm) | 802.11a/b/g/n/ac, ISM, Wi-Fi |
|
|
OC24006H-FNMRF ANT 2.4GHZ WHIP STR N MALE |
4,127 |
|
数据手册 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 10 W | - | N Type Male | - | - | - | Connector Mount | 12.953" (329.00mm) | Wi-Fi |
|
|
ALPHA19/3M/QMAM/S/S/17ULTRA SMALL ADHESIVE GPS ANTENNA |
1,784 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
397XD-PSGPS, PASSIVE, LOW PRO PERM MNT, |
3,538 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMOKHFMIDDSANT CABLE NMOHF 17' DS RG58 |
3,339 |
|
数据手册 |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMOKHFMIDCXANT CABLE NMOHF 17' CX RG58 |
1,080 |
|
数据手册 |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMOKHFMIDUDANT CABLE NMOHF 17' UD RG58 |
2,386 |
|
数据手册 |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PE51RD10125DBI SWVL RBRDK 900-930MHZ SMA |
3,994 |
|
数据手册 |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Blade, Tilt/Swivel | 1 | 2.5 | - | 5dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 15.400" (391.16mm) | LPWAN, ISM |
|
|
HG2458RD-RTPANTRB-DUCK 2.4/4.9/5.8GHZ 3DB |
3,688 |
|
数据手册 |
HG | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.1GHz, 5.75GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.3GHz, 5.7GHz ~ 5.8GHz | Whip, Tilt | 3 | - | - | 3dBi, 3dBi, 3dBi | - | - | RP-TNC | - | - | - | Connector Mount | 8.100" (205.74mm) | 802.11a/b/g/n/ac, Wi-Fi |
