射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FM51222ANTENNA TYPE N JACK 698 MHZ-4.2 |
4,738 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 2.205GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Dome | 4 | 2 | - | 2.2dBi, 3.5dBi, 4.5dBi, 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 1.580" (40.13mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
GPS0006ANTENNA GPS 1575.4 MHZ |
1,929 |
|
数据手册 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 2 | -10dB | 5dBic | - | Cable - 5.1816m | SMB | - | - | - | Magnetic | 0.500" (12.70mm) | GPS |
|
|
HG2403US-NMANTOMNI SURVEY 2.4GHZ 3DBI |
2,431 |
|
数据手册 |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 3dBi | - | - | N Type Male | - | - | - | Connector Mount | 6.270" (159.26mm) | 802.11b/g/n, ISM, WLAN |
|
|
S2403BPV12NFRF ANT 2.4GHZ WHIP STR BRKT MT |
1,369 |
|
数据手册 |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 5.15dBi | - | Cable - 305mm | N Type Female | - | - | - | Bracket Mount | - | - |
|

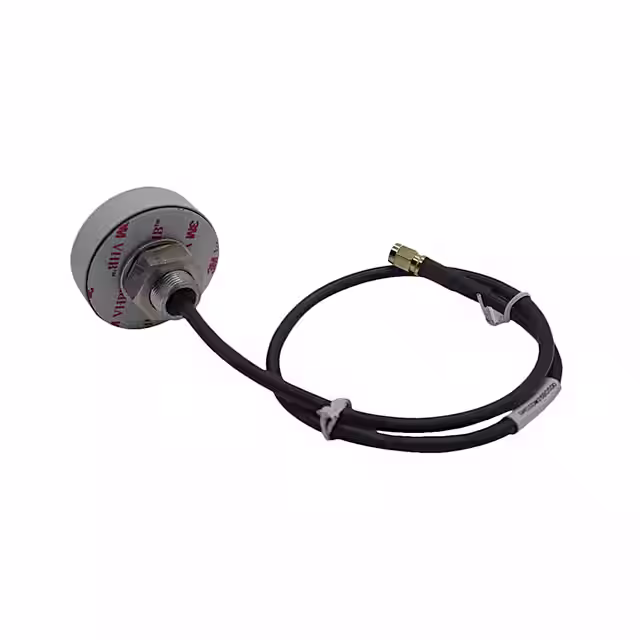

GNSSDM26B0500GNSS IP67 ACTIVE 26DB RHCP ANTEN |
2,553 |
|
数据手册 |
Active GNSS | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz,1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Dome | 1 | 2.5 | - | 1dBi, 30dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 0.870" (22.10mm) | Beidou, GLONASS, GNSS, GPS |
|
|
OD617-6000S1NFANT DAS OMNI 4G LTE 5G CBRS SISO |
3,659 |
|
数据手册 |
- | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | N Type Female | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
TLS.30.1F21RF ANT 433MHZ WHIP STR N FEM PAN |
1,636 |
|
数据手册 |
Shockwave | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -15dB | -1.16dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | ISM |
|
|
NMOP150/450/800ANT NMO MNT TRI BAND BLK POGO |
4,203 |
|
数据手册 |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ANT-2PANEL14-NF2.4GHZ '+18DB PANEL ANTENNA N(F) |
3,106 |
|
数据手册 |
- | Bag | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 14dBi | 100 W | - | SMA Male | IP65 | - | - | Pole Mount | 1.378" (35.00mm) | WLAN |
|
|
SB45012ANTENNA SB 450-470MHZ 12' RG174 |
1,922 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Blade | 1 | - | - | 2.14dBi | 3 W | Cable - 304.8mm | UHF | - | - | - | Adhesive | - | - |
|
|
GPS1575SP26-005RF ANT 1.575GHZ MOD MCX PANEL MT |
3,293 |
|
数据手册 |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 28dBi | - | Cable - 2.032m | MCX Male | IP67 | - | - | Panel Mount | 0.670" (17.02mm) | GPS |
|
TANGO16/6M/LL/SMAM/SMAM/RP/S/26RF ANT 850MHZ/868MHZ DOME RP-SMA |
1,700 |
|
数据手册 |
TANGO 16 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 8 | 1.5 | - | 2dBi | - | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | GPRS, GPS, GSM |
|
|
NMO5T800BANTENNA BASE-WHP 5DB 806-866 MHZ |
1,622 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | -10dB | 7.2dBi | 200 W | - | NMO | - | - | - | Magnetic | 18.000" (457.20mm) | - |
|
|
NMO5T825BANTENNA BASE-WHP 5DB 825-896 MHZ |
2,008 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 860MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | - | -10dB | 7.2dBi | 200 W | - | NMO | - | - | - | Magnetic | 18.000" (457.20mm) | - |
|
|
FMAN51148ANTENNA SMA JACK 450 MHZ-470 MHZ |
4,177 |
|
数据手册 |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-1322-27-0035RF ANT 1.575/1.602GHZ CER PATCH |
2,764 |
|
数据手册 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.58GHz ~ 1.61GHz | Ceramic Patch | 1 | 1.8 | 10dB | 4.5dBi | - | Cable - 35mm, LNA, Filter | - | - | - | - | Adhesive | 0.197" (5.00mm) | GPS |
|
|
33-1322-20-0575ANTEN EMBEDDED GPS/GLONASS SMA F |
1,859 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-1322-00-0575ANTEN EMBEDDED GPS/GLONASS SMA M |
3,767 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDBM800/1900MSMADUAL BAND MAGNETIC MOUNT |
4,257 |
|
数据手册 |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B4063SRF ANT 418MHZ WHIP STR NMO BASE |
4,985 |
|
数据手册 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 406MHz ~ 430MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | - | - | - | Base Mount | 15.000" (381.00mm) | - |
