射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR4L049-RRF ANT 875.5MHZ/1.94GHZ PCB TRCE |
2,231 |
|
数据手册 |
Integra | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz, 2.35GHz, 2.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 1.9, 2.3, 3.6, 4.1 | -4.5dB, -5dB, -7.8dB, -9.7dB | 1.9dBi, 3dBi, 3.3dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|
0479480001RF ANT 2.4GHZ CHIP SOLDER SMD |
16,272 |
|
数据手册 |
47948 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Chip | 1 | - | -9dB | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN, Zigbee™ |
|
CAF94505RF ANT 2.4GHZ/5.3GHZ PCB TRACE |
4,022 |
|
数据手册 |
NanoBlade | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz, 5.6GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 3 | 2 | - | 2dBi, 3.9dBi, 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.650" (16.50mm) | Bluetooth, Wi-Fi, WiMax™ |
|
SR4L002RF ANT 829MHZ/1.9GHZ CHIP SLD |
50,889 |
|
数据手册 |
Lucida | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 4 | 3 | -5dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE |
|
SR4L049-LRF ANT 875.5MHZ/1.94GHZ PCB TRCE |
1,453 |
|
数据手册 |
Integra | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz, 2.35GHz, 2.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 1.9, 2.3, 3.6, 4.1 | -4.5dB, -5dB, -7.8dB, -9.7dB | 1.9dBi, 3dBi, 3.3dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|
0433AT62A0020001ERF ANT 433MHZ CHIP SOLDER SMD |
43,237 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Chip | 1 | - | -8.5dB | -4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|

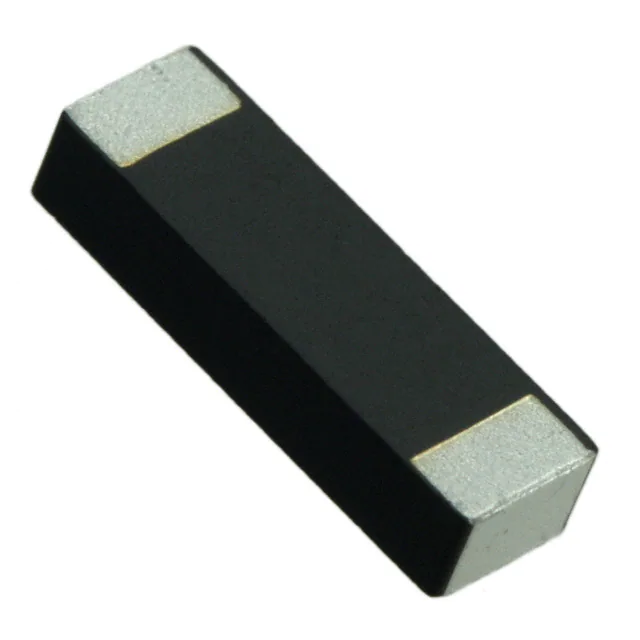

W3070RF ANT 900MHZ/1.8GHZ CHIP SLD |
5,552 |
|
数据手册 |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | - | -3.8dB, -4dB | 1.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GSM |
|
SR4L034-RRF ANT 829MHZ/1.94GHZ PCB TRACE |
4,857 |
|
数据手册 |
Inversa | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 2.5, 2.8, 3.5, 3.7 | -4.9dB, -5.1dB, -6dB, -6.6dB, -7dB | 0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|

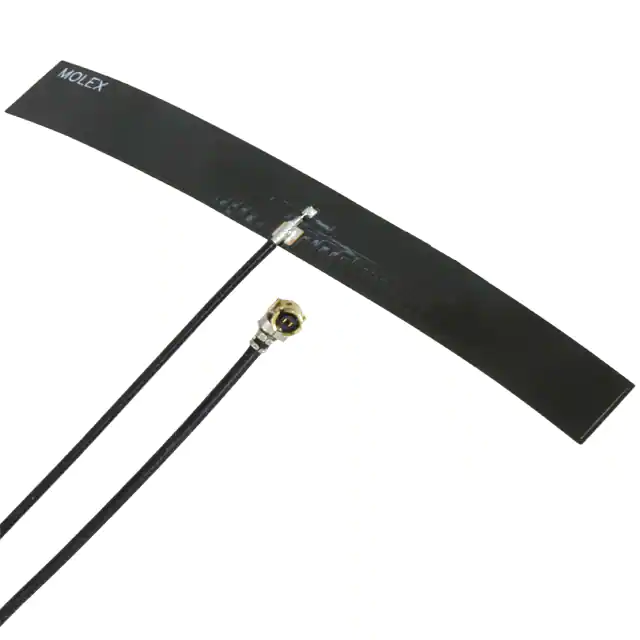

1052620001RF ANT 866MHZ/915MHZ FLAT 100MM |
53,882 |
|
数据手册 |
105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.4dBi, 1.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
1461530300RF ANT 2.4/5GHZ FLAT PATCH 300MM |
10,626 |
|
数据手册 |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.2dBi, 3.3dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
ANT-868-PW-LPRF ANT 868MHZ WHIP STR SCREW-MNT |
6,179 |
|
数据手册 |
LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 832MHz ~ 904MHz | Whip, Straight | 1 | 1.9 | - | 2.1dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
APAE1590R2540AKDB1-TRF ANT 1.575/1.602GHZ CER PATCH |
44,957 |
|
数据手册 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.608GHz | Ceramic Patch | 2 | 1.5 | -7dB | - | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GLONASS, GPS |
|

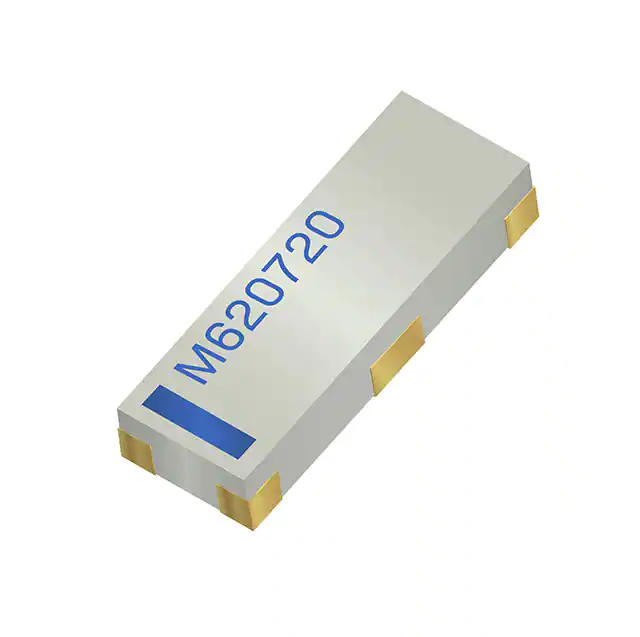

M620720RF ANT 868MHZ/915MHZ CHIP SLD |
1,873 |
|
数据手册 |
Savvi™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 1 | 2.6 | - | 2.56dB | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | ISM, LoRa, LPWAN, Sigfox |
|

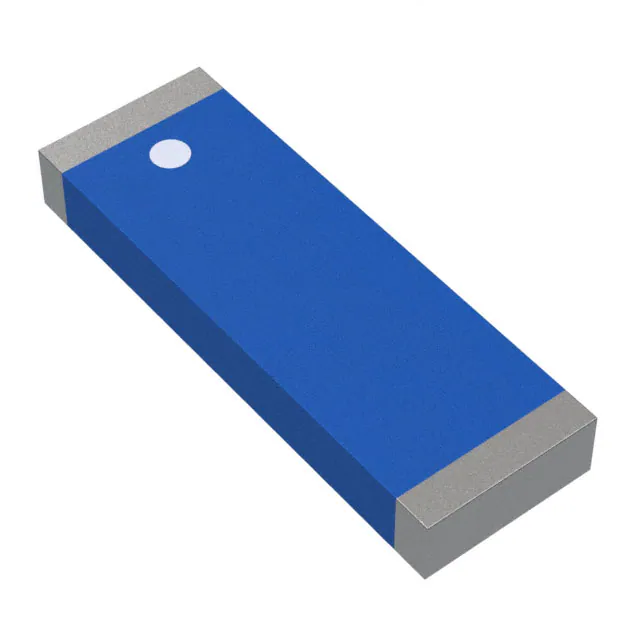

ANT1204LL20R0433ARF ANT 433MHZ CHIP SOLDER SMD |
1,936 |
|
数据手册 |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | - | 6.5dB | 0.83dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM |
|

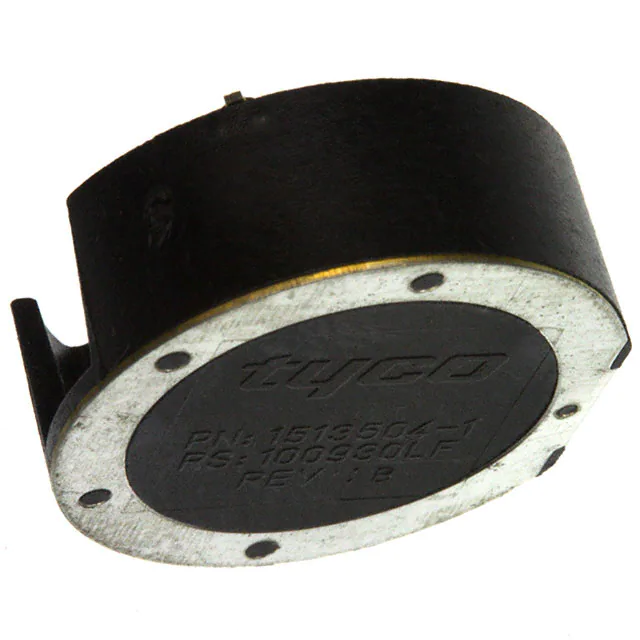

1513504-1RF ANT 2.4GHZ PUCK SOLDER SMD |
2,465 |
|
数据手册 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Puck | 1 | 2.5 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | Bluetooth, WLAN, Zigbee™ |
|
ANTX100P001B24553RF ANT 2.4GHZ/5.5GHZ FLAT PATCH |
4,605 |
|
数据手册 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 4.6dBi, 3.9dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.037" (0.95mm) | Bluetooth, WLAN, Zigbee™ |
|
2042810100RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
2,649 |
|
数据手册 |
204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 3.5dBi | - | Cable - 100mm | - | - | - | - | Adhesive | 0.098" (2.50mm) | Wi-Fi |
|
GW.34.5153EXTERNAL BRACKET MOUNT NFC ANTEN |
601 |
|
数据手册 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 4.22dBi, 5.89dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | Wi-Fi |
|
2042811100RF ANT 2.4/5GHZ PCB TRACE 100MM |
14,037 |
|
数据手册 |
204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -10dB | - | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
SRF2W012-100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,219 |
|
数据手册 |
Dromus | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.8 | -14dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
