射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-433-WRT-UFLRF ANT 433MHZ WRT DOME UFL TE Connectivity Linx |
980 |
|
数据手册 |
WRT | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Dome | 1 | 1.4 | - | -1.8dBi | 5 W | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | Sensor Networks |
|
ANT-DB1-WRT-UFL-100RF ANT 2.4/5GHZ WRT UFL -100 TE Connectivity Linx |
432 |
|
数据手册 |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-W63-WRT-UFLRF ANT 2.4/5/6GHZ DOME PNL MT UF TE Connectivity Linx |
939 |
|
数据手册 |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | U.FL | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

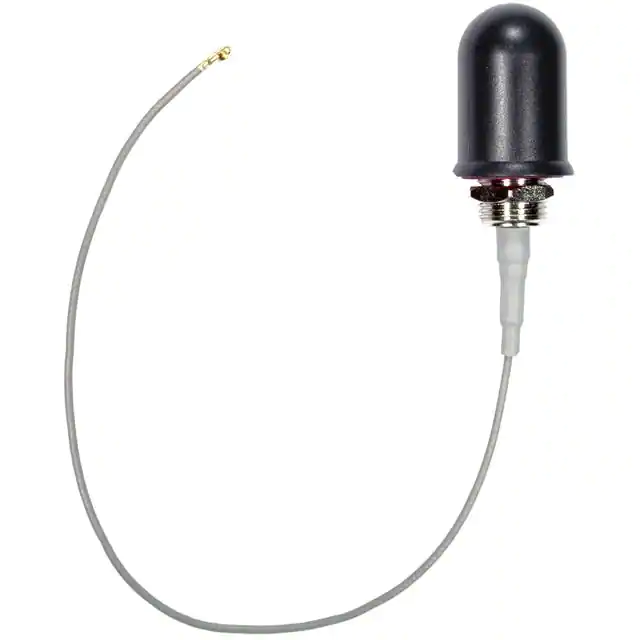

ANT-DB1-WRT-MON-MHF4RF ANT 2.5/5GHZ PNL MNT MHF4 TE Connectivity Linx |
854 |
|
数据手册 |
DB1-WRT-MON | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Panel | 2 | 2.2, 10.8 | - | 2.1dBi, 2.6dBi | 5 W | Cable - 216mm | I-PEX MHF4 | - | - | - | Panel Mount | 1.063" (27.00mm) | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
|

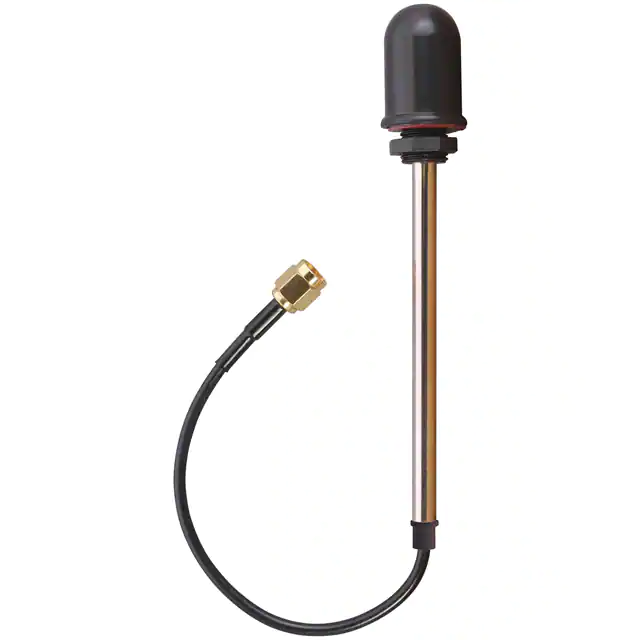

ANT-W63-WRT-SMARF ANT 2.4/5/6GHZ DOME PNL MT SM TE Connectivity Linx |
901 |
|
数据手册 |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | SMA | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

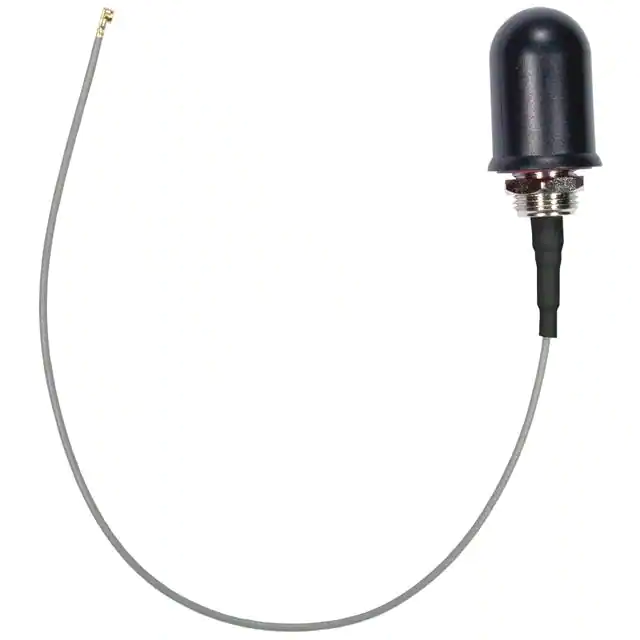

ANT-2.4-WRT-MON-MHF4ANT 2.4GHZ DOME PNL MNT MHF4 TE Connectivity Linx |
974 |
|
数据手册 |
WRT-MON | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.7 | - | 2.7dBi | 5 W | Cable - 216mm | MHF4 | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-868-WRT-UFL-150RF ANT 868MHZ DOME UFL -150 TE Connectivity Linx |
452 |
|
数据手册 |
WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Dome | 1 | 1.4 | - | 3.8dBi | 5 W | Cable - 150mm | SMA Male | - | - | - | Panel Mount | 0.394" (10.00mm) | ISM, LoRaWAN, LPWA, Sigfox |
|
ANT-GNCP-C185L160RF ANT GNSS GPS L1 18X18 LNA UFL TE Connectivity Linx |
554 |
|
数据手册 |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.6, 1.7, 1.7 | -13.1dB, -11.9dB, -11.8dB | 8.2dBi, 13.7dBi, 9.2dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.177" (4.50mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-2.4-ID-1000-SMARF ANT 2.4GHZ WHIP STR BRKT 1M TE Connectivity Linx |
110 |
|
数据手册 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

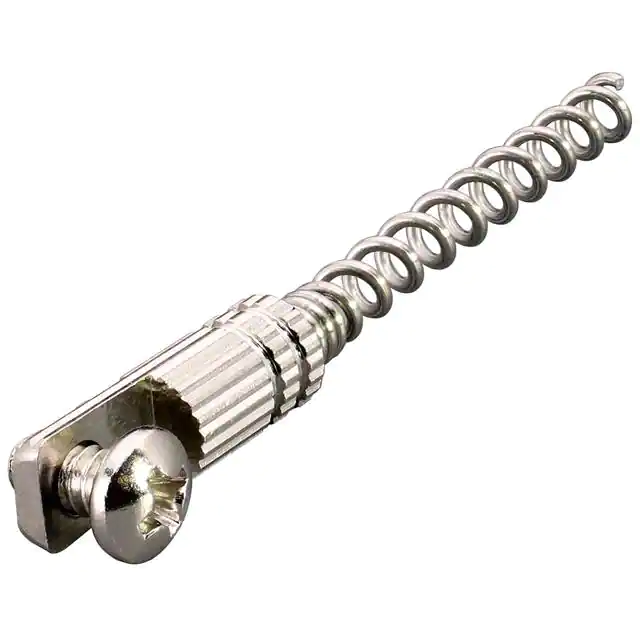

ANT-2.4-PW-LPNANT 2.4GHZ HELICAL SCREW MOUNT TE Connectivity Linx |
2,052 |
|
数据手册 |
ANT-2.4-PW-LPN | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Helical | 1 | 2 | - | 4.5dBi | 15 W | - | Solder | - | - | - | Screw Mount | 1.846" (46.90mm) | 802.11, Bluetooth, ISM, U-NII, Wi-Fi, WLAN, Zigbee™ |
