射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

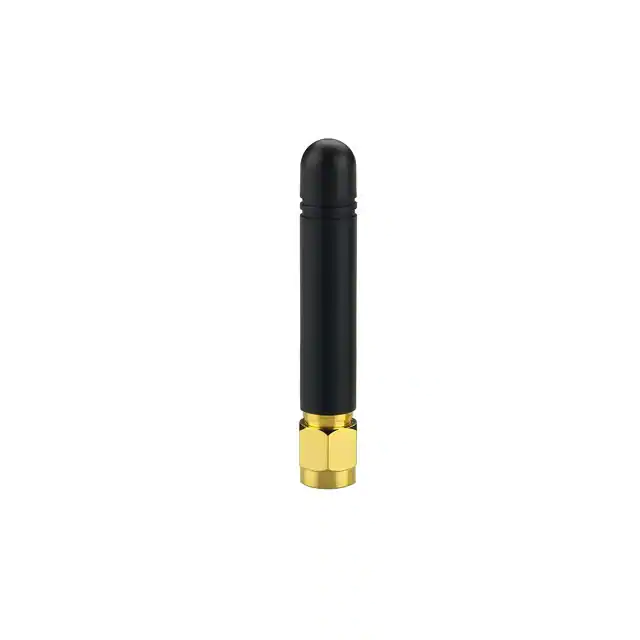

TI.10.0111.HTRF ANT 433MHZ WHIP STR SMA MALE Taoglas Limited |
3,698 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Straight | 1 | 1.5 | -17dB | 0dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.898" (48.20mm) | - |
|

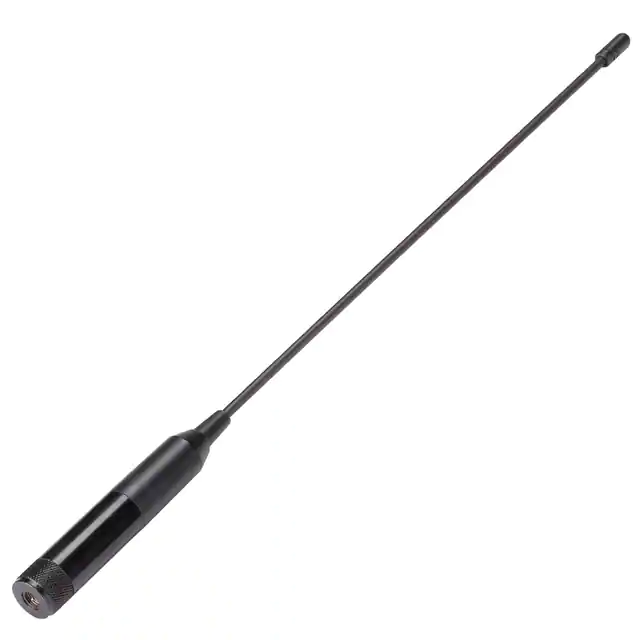

FW.43.B.SMA.MRF ANT 433MHZ WHIP STR SMA MALE Taoglas Limited |
2,450 |
|
数据手册 |
Meteor | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.5 | -15dB | 0.4dB | 2 W | - | SMA Male | IP65 | - | - | Connector Mount | - | ISM |
|

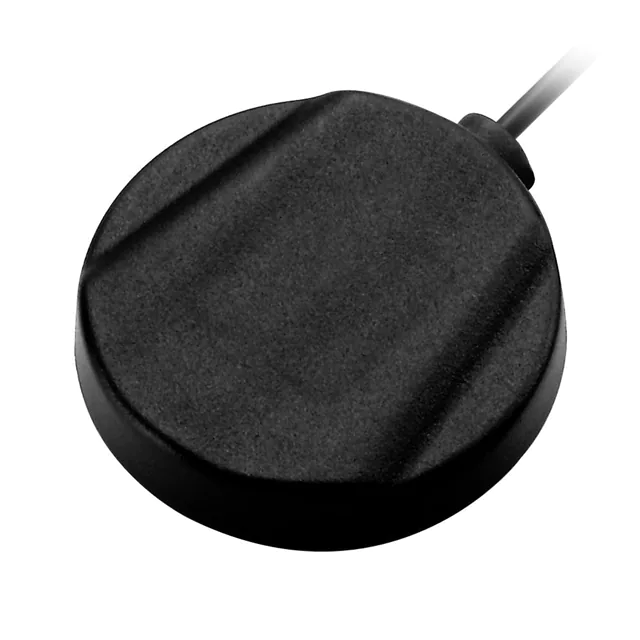

AA.107.301111RF ANT 1.575/1.6GHZ MOD SMA MALE Taoglas Limited |
100 |
|
数据手册 |
Stingray | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | - | Module | 2 | 2 | -10dB | 1.36dBi, 0.09dBi | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | GLONASS, GPS |
|

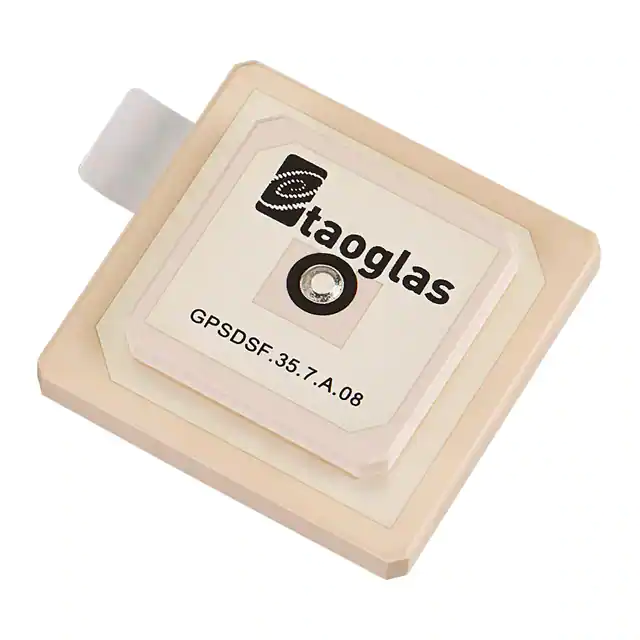

GPSDSF.35.7.A.08GPS L1/GALILEO DUAL PIN STACKED Taoglas Limited |
2,145 |
|
数据手册 |
- | Tray | Active | Navigation | Wide Band | 1.575GHz, 1.591GHz, 1.602GHz, 2.338GHz, 2.338GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.332GHz ~ 2.345GHz, 1.588GHz ~ 1.594GHz, 2.335GHz ~ 2.341GHz | Ceramic Patch | 5 | - | -10dB | 3.4dBi, 3.6dBi, 4.7dBi | - | - | Pin | - | - | - | Adhesive | 0.281" (7.15mm) | GALILEO, GLONASS, GPS, SDARS |
|

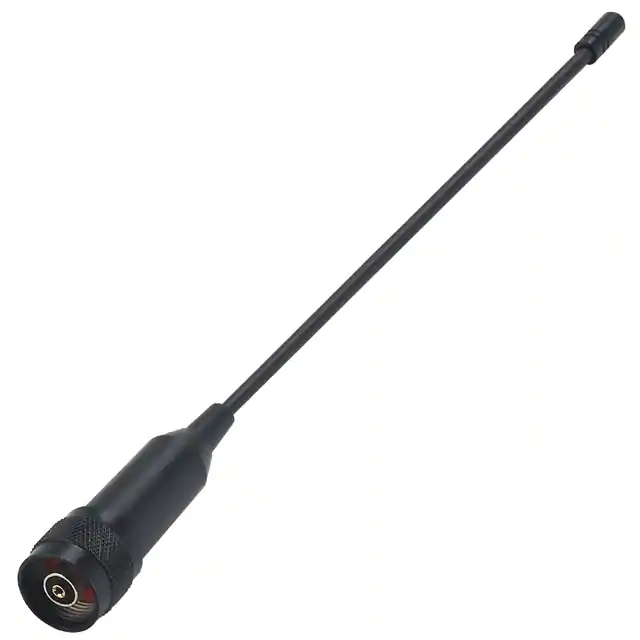

FW.86.RNT.MRF ANT 868MHZ WHIP STR RP-N MALE Taoglas Limited |
2,190 |
|
数据手册 |
Meteor | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | - | 4.7dB | 2 W | - | RP-N Male | IP67 | - | - | Connector Mount | 9.685" (246.00mm) | - |
|

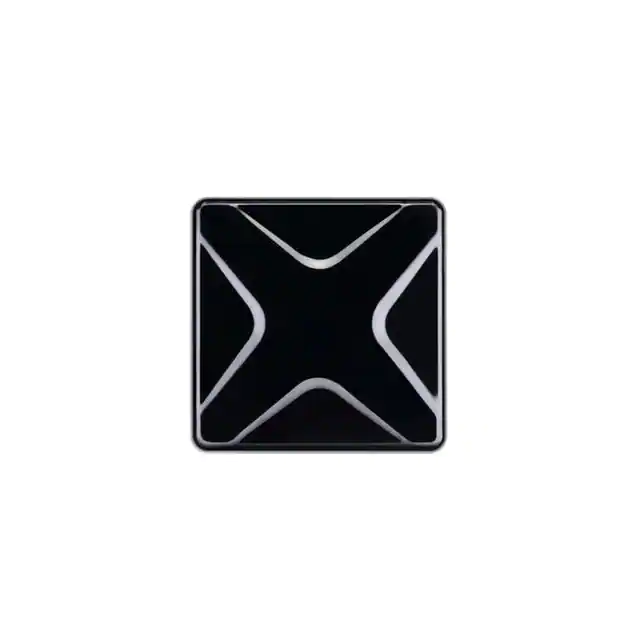

WCM.02.01212.4GHZ TWO MONOPOLE CONNECTOR MO Taoglas Limited |
4,441 |
|
数据手册 |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Module | 1 | - | -10dB | 1.68dBi | - | - | SMA Female | IP67 | - | - | Surface Mount | 0.264" (6.70mm) | General Purpose |
|
PC104R.A.07.0165CRF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
4,468 |
|
数据手册 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | - | -7dB, -10dB | 0.99dBi, 2.39dBi | 50 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | CDMA, GSM, UMTS |
|
GSA.8859.A.105111RF ANT 5.9GHZ MODULE SMA ML ADH Taoglas Limited |
1,123 |
|
数据手册 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.85GHz ~ 5.925GHz | Module | 1 | 2 | -10dB | 4.84dBi | 5 W | - | SMA Male | IP67 | - | - | Adhesive | 0.394" (10.00mm) | DSRC |
|

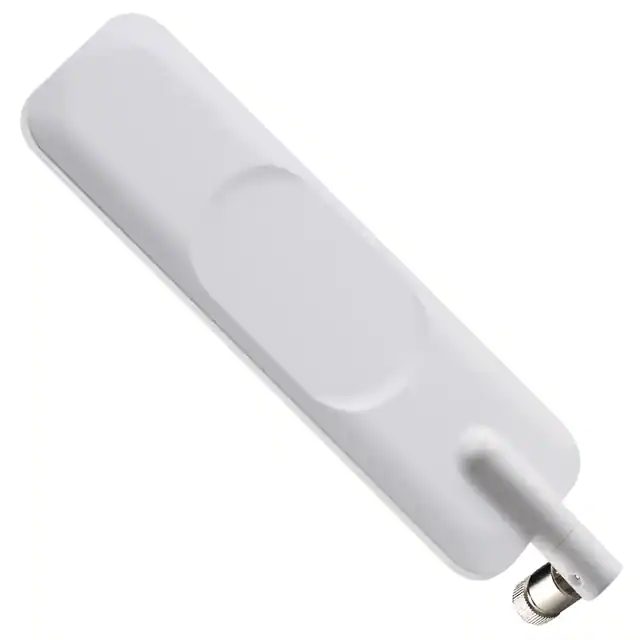

TG.35.8113WRF ANT 700MHZ/850MHZ WHIP TILT Taoglas Limited |
3,640 |
|
数据手册 |
APEX II | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 5.8GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz | Whip, Tilt | 10 | - | - | 4.42dBi, 1.59dBi, 3.15dBi, 2.7dBi, 4.93dBi, 4.43dBi, 2.55dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.740" (222.00mm) | CDMA, DCS, EDGE, GLONASS, GPRS, GPS, GSM, HSPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|

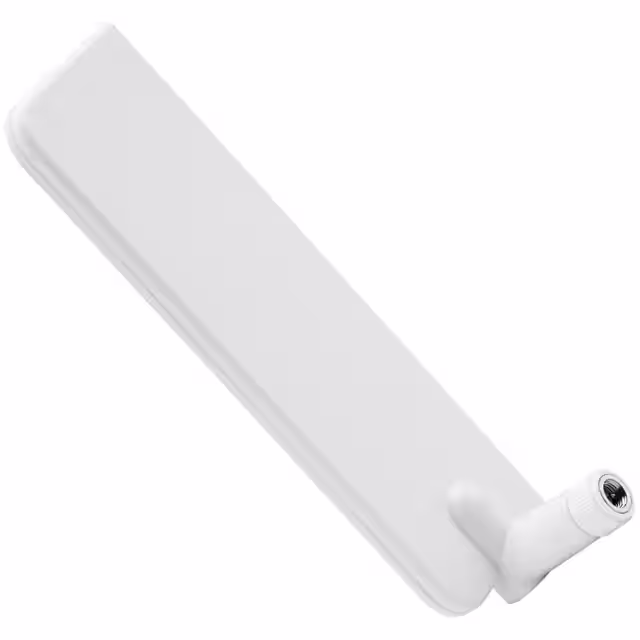

TG.30.8112WRF ANT 829MHZ/1.575GHZ WHIP STR Taoglas Limited |
3,874 |
|
数据手册 |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 1.575GHz | Whip, Straight | 4 | - | - | 3dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.850" (148.60mm) | GPS, LTE |
