射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

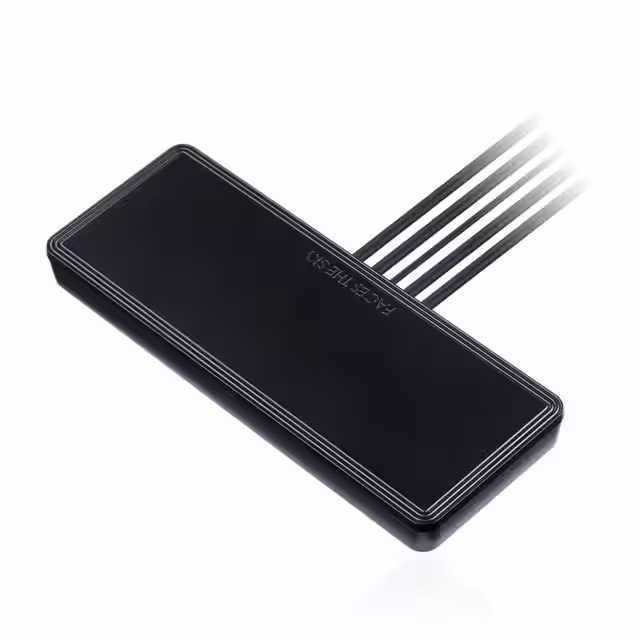

MA285.LBICG.0015IN1 GNSS:3M RG174 FAKRA C LTE(M Taoglas Limited |
214 |
|
数据手册 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2. | Module | 12 | - | -6dB, -10dB | 1.99dBi, 2.34dBi, 1.98dBi, 2.3dBi, 3.15dBi, 3.63dBi, 4.11dBi, 2.85dBi, -3.01dBi, -2.07dBi | - | Cable - 2m, LNA, Filter | RP-SMA Male (2), SMA Male (3) | IP67 | - | - | Adhesive | 0.512" (13.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|

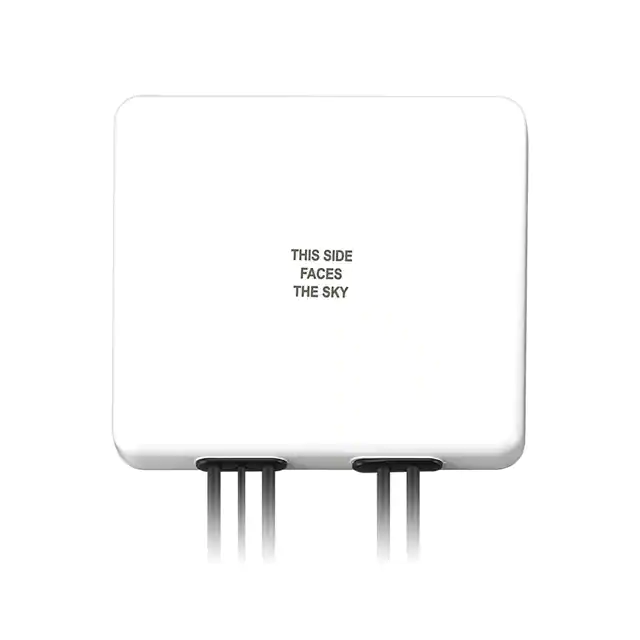

MA950.W.A.LBICG.005GUARDIAN MA950.W 5IN1 ADHESIVE M Taoglas Limited |
3,955 |
|
数据手册 |
Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.574GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Module | 15 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
GA400.A.305111WIDEBAND DIPOLE ANT 400-6000MHZ Taoglas Limited |
1,875 |
|
数据手册 |
Guardian | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 3.5dBi, 2.4dBi, 2.4dBi, 2.6dBi, 4dBi, 3.8dBi, 4.6dBi, 2.2dBi, 5.3dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | 4G, 5G, LTE, Wi-Fi |
|

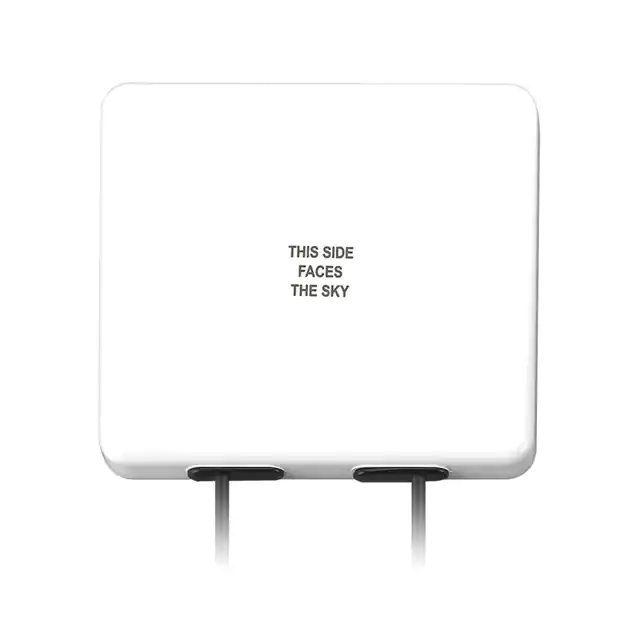

MA912.W.A.BI.001MA912.W.A.BI.001 2IN1 WHITE ADHE Taoglas Limited |
3,486 |
|
数据手册 |
Guardian | Box | Active | Cellular, General ISM, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 3 | - | 2.48dBi, 2.9dBi, 1.44dBi, 2.98dBi, 3.27dBi, 3.27dBi, 2.4dBi, 2.99dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA931.A.LBICGH.008GUARDIAN MA931.W 6-IN-1 ADHESIVE Taoglas Limited |
3,343 |
|
数据手册 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.4GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.85GHz, 5.1 | Module | 12 | - | - | 3.81dBi, 3.81dBi, 3.73dBi, 4.06dBi, 4.61dBi, 3.91dBi, 3.98dBi, 4.25dBi, 4.6dBi, 4.32dBi, 4.48dBi | 50 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MA352.A.LBI.0013IN1 MAGNET MNT ANT 3M SMA(M) Taoglas Limited |
2,766 |
|
数据手册 |
Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 11 | - | -10dB | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m, LNA, Filter | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

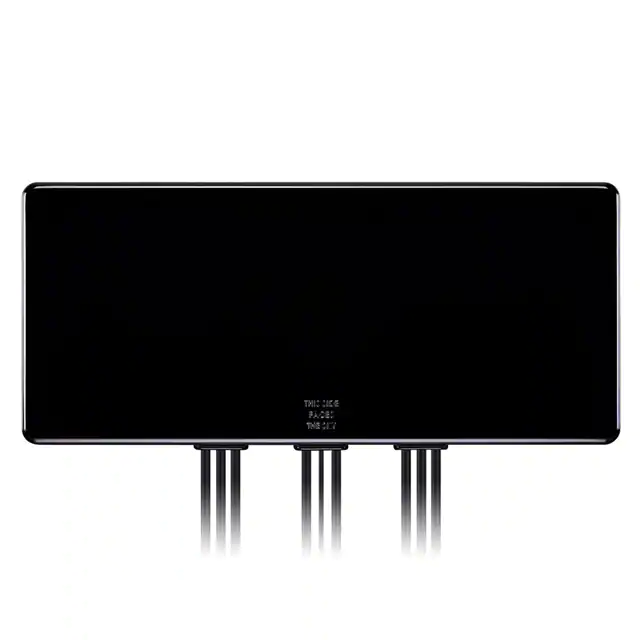

MA9909.A.002GUARDIANX 3M 9IN1 1*ACTIVE GNSS Taoglas Limited |
1,581 |
|
数据手册 |
Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.592GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 2 | - | 1.2dBi, 1.4dBi, 1.72dBi, -4.51dBi, 2.8dBi, 2.75dBi, 2.97dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA460.K.LBIC.002RF ANT 829MHZ/1.94GHZ FLAT BAR Taoglas Limited |
2,792 |
|
数据手册 |
Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | -10dB | 6.8dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|

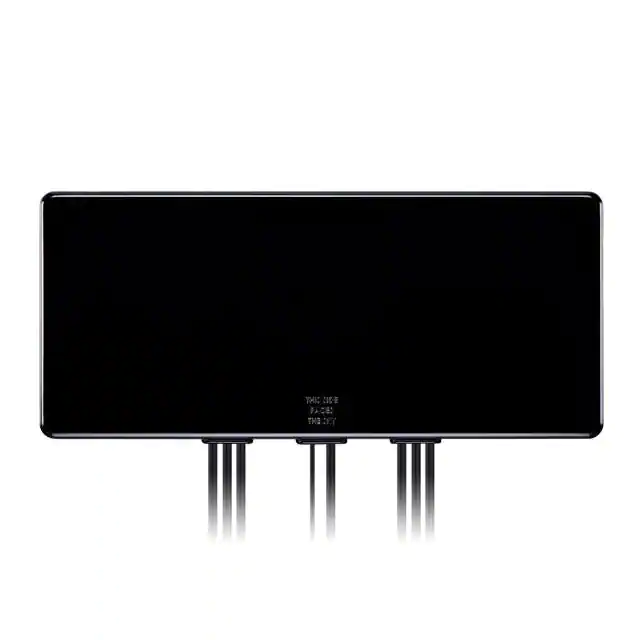

MA9908.A.001GUARDIANX 3M 8IN1 1*ACTIVE GNSS Taoglas Limited |
2,133 |
|
数据手册 |
Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 761MHz, 859MHz, 920MHz, 1.5785GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.5GHz | 698MHz ~ 960MHz, 1.547GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 10 | 2 | - | 1.41dBi, 1.53dBi, 1.04dBi, 1.5dBic, 0dBic, 3.17dBi, 3.54dBi, 3.91dBi, 4.08dBi, 4.23dBi, 3.47dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|

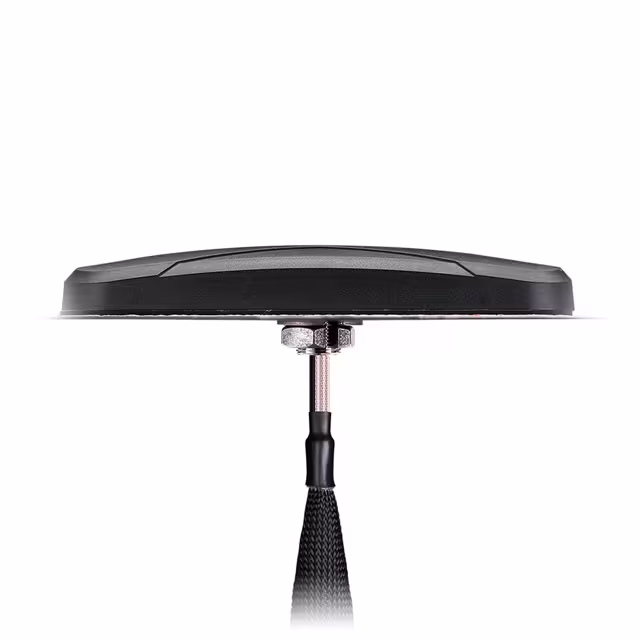

MA450.K.LBICG.004RF ANT 829MHZ/1.94GHZ FLAT BAR Taoglas Limited |
2,343 |
|
数据手册 |
Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | - | 6.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
