射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

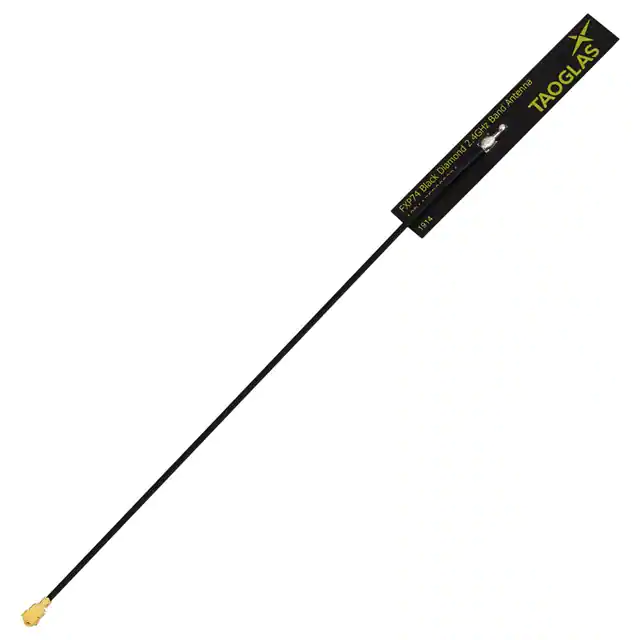

FXP74.07.0100ARF ANT 2.4GHZ FLAT PATCH CAB ADH Taoglas Limited |
1,470 |
|
数据手册 |
Black Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | -10dB | 4dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
FXUB66.01.0150CRF ANT 3.4GHZ FLAT PATCH SMA MAL Taoglas Limited |
792 |
|
数据手册 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 3.4GHz | 700MHz ~ 6GHz | Flat Patch | 1 | 2.2 | -7dB | 6.4dBi | 5 W | - | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|

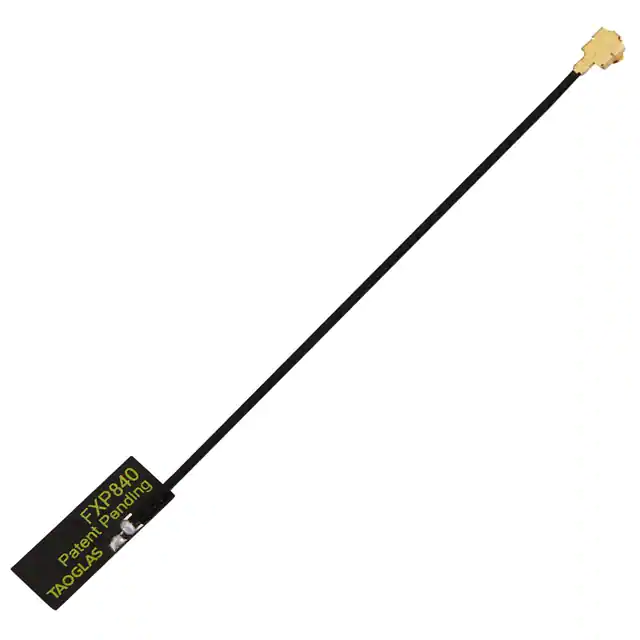

FXP840.07.0055BRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
2,529 |
|
数据手册 |
Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2, 2.5 | -10dB, -7dB | 2dBi, 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
|

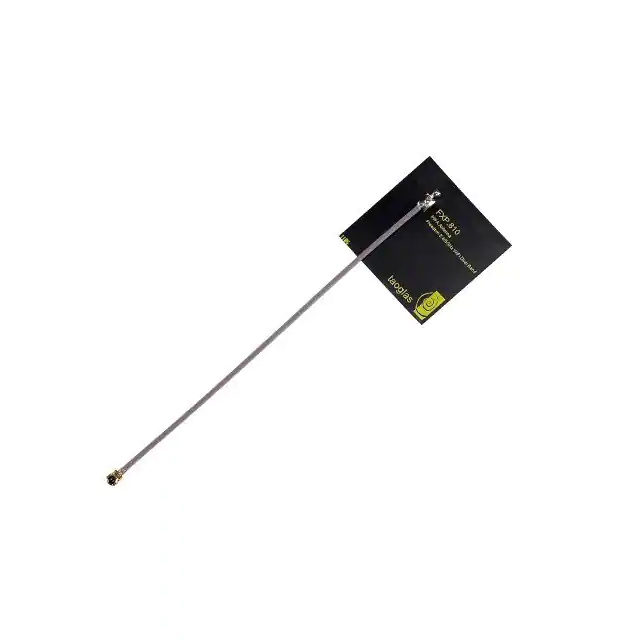

FXP810.07.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
386 |
|
数据手册 |
Freedom | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
SWLP.2450.12.4.B.02RF ANT 2.4GHZ CER PATCH SLDR SMD Taoglas Limited |
11,253 |
|
数据手册 |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN, Zigbee™ |
|

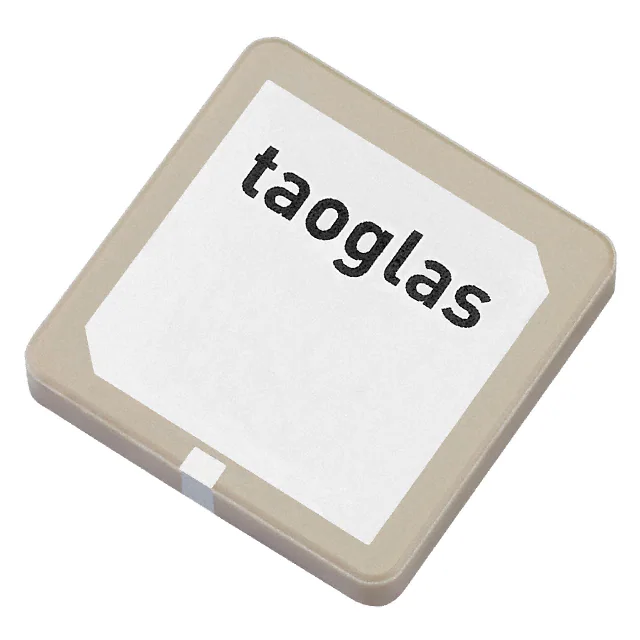

SGGP.25.4.A.02RF ANT 1.575/1.602GHZ CER PATCH Taoglas Limited |
9,968 |
|
数据手册 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 1.5 | -10dB | -0.14dBic, 1.75dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
TG.42.01124G LTE CONN MOUNT MONOPOLE ANT Taoglas Limited |
312 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Whip, Right Angle | 7 | - | - | 2.1dBi, 3.3dBi, 3.29dBi, 3.56dBi, 3.6dBi, 3.6dBi, 3.62dBi | 5 W | - | SMA Male | IPX5 | - | - | Connector Mount | 2.449" (62.20mm) | LTE |
|

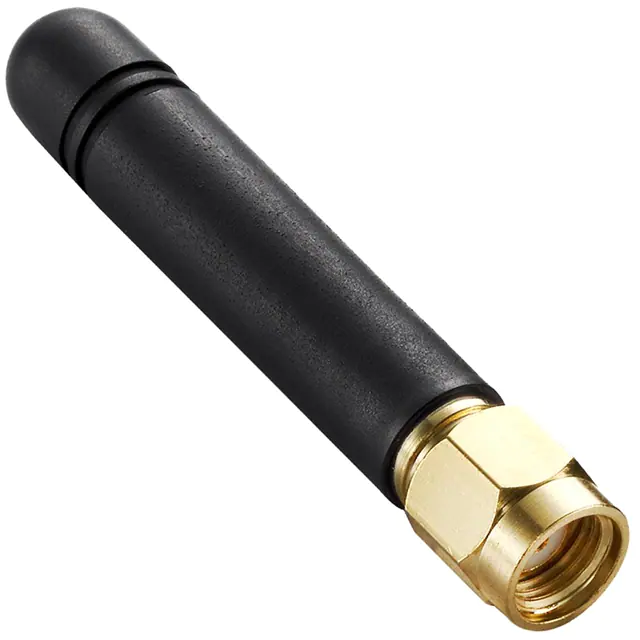

TG.22.0111RF ANT 850MHZ/900MHZ WHIP STR Taoglas Limited |
2,598 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 3.5 | -5dB | 1.42dBi, 1.91dBi, 2.51dBi, 3.23dBi, 2.89dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.898" (48.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|

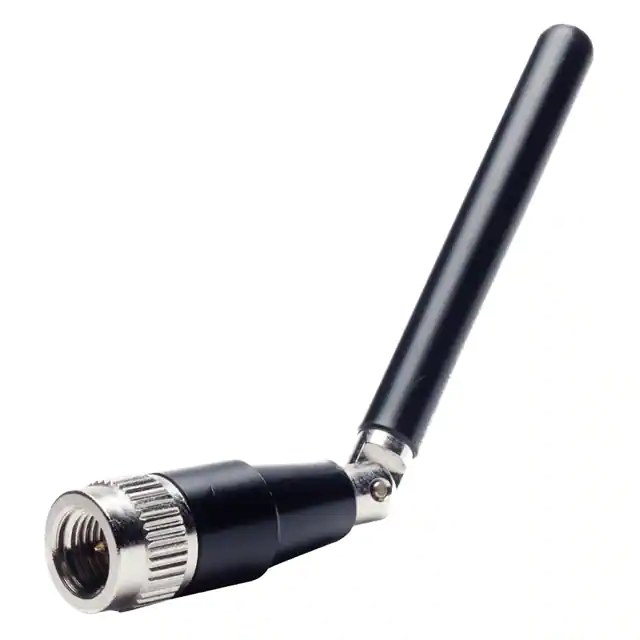

TG.09.0113RF ANT 892MHZ/1.9GHZ WHIP TILT Taoglas Limited |
2,158 |
|
数据手册 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | - | - | 2dBi, -0.1dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | CDMA, GSM, UMTS |
|
TI.92.2113915MHZ TERMINAL ANTENNA 2DBI SMA Taoglas Limited |
430 |
|
数据手册 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | - | - | 1.21dBi, 2.14dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | ISM |
