射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TI.15.3113RF ANT 433MHZ WHIP TILT SMA MALE Taoglas Limited |
104 |
|
数据手册 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Tilt | 1 | 1.5 | - | -4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | - |
|

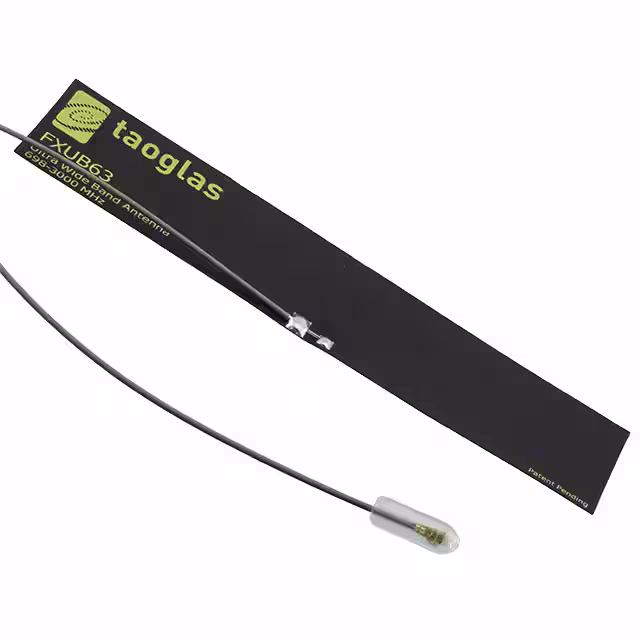

FXUB63.24.0150BFLEX 698MHZ TO 3GHZ WITH 150MM 1 Taoglas Limited |
360 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|

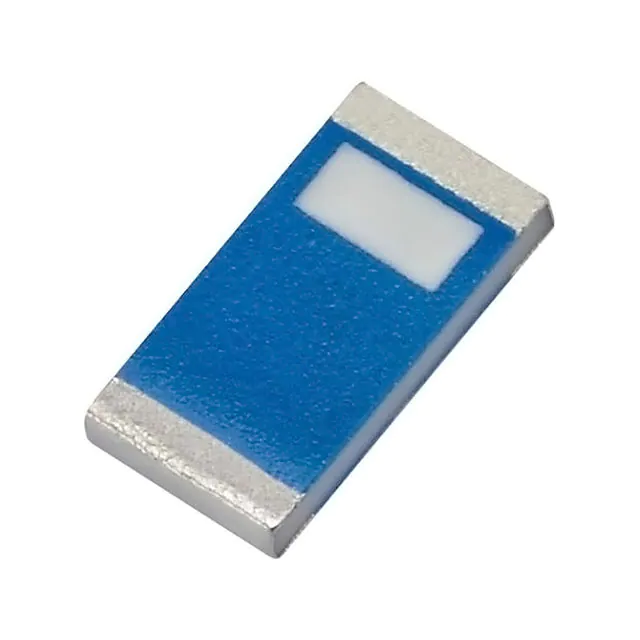

WLA.10RF ANT 1.575GHZ/2.4GHZ CHIP SLD Taoglas Limited |
1,780 |
|
数据手册 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.575GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | - | -10dB | 1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
TG.30.8113WRF ANT 750MHZ/892MHZ WHIP TILT Taoglas Limited |
669 |
|
数据手册 |
Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
GSA.8821.B.301111RF ANT 850MHZ/900MHZ FLAT BAR Taoglas Limited |
1,038 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 5 | - | -7.8dB, -8.5dB, -9.2dB, -13.6dB, -16dB | -5.1dBi, -1.6dBi, -2.7dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Adhesive | 0.228" (5.80mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|

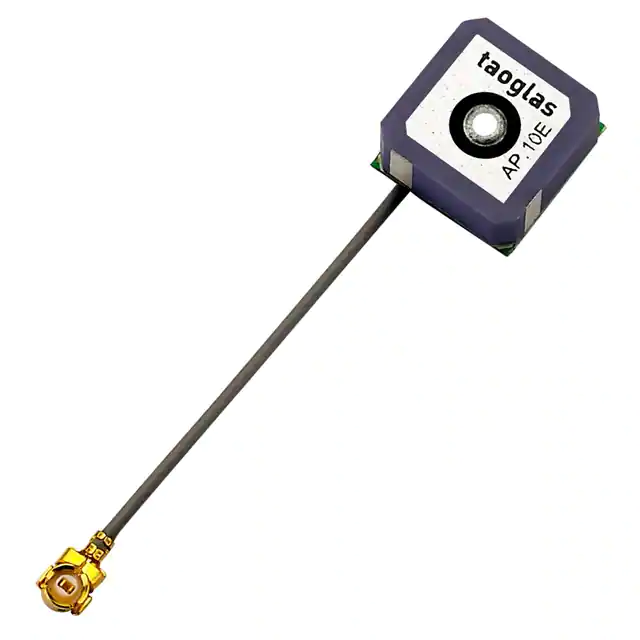

AP.10E.07.0039BRF ANT 1.575GHZ CER PATCH CAB Taoglas Limited |
230 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -10dBic | - | Cable - 39mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.244" (6.20mm) | GPS |
|

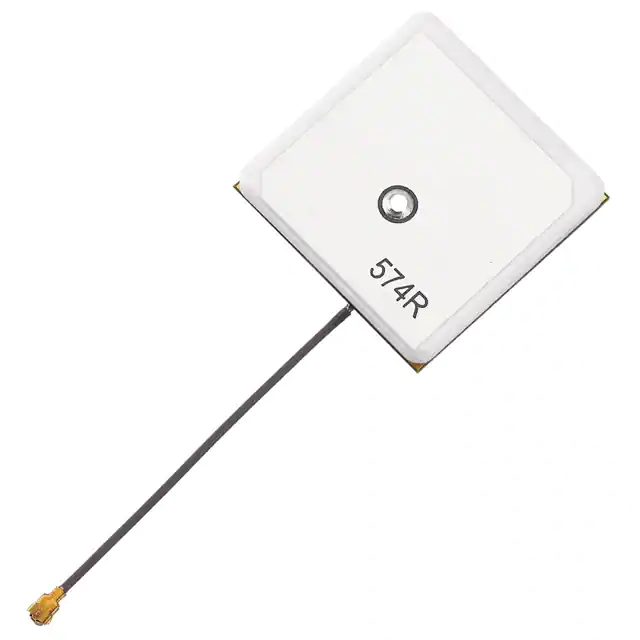

AP.35A.07.0054ARF ANT 1.575GHZ CER PATCH IPEX Taoglas Limited |
135 |
|
数据手册 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 2.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Solder | 0.138" (3.50mm) | GPS |
|

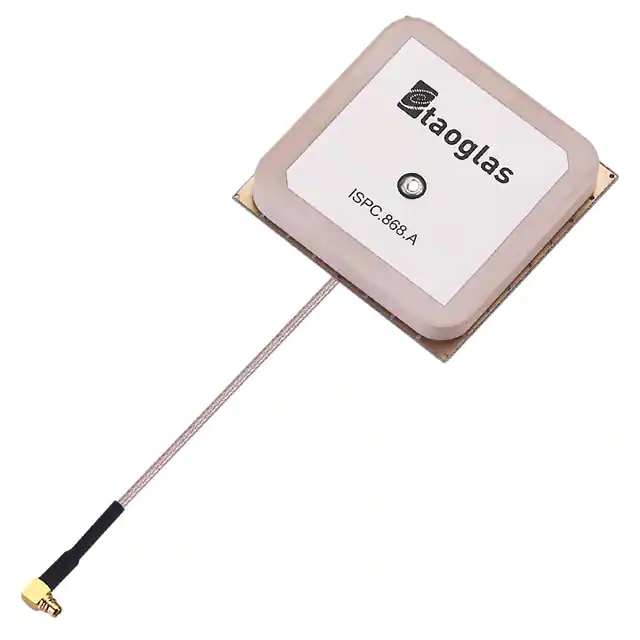

ISPC.86A.09.0092ERF ANT 867MHZ CER PATCH MMCX ML Taoglas Limited |
135 |
|
数据手册 |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 867MHz | 865MHz ~ 870MHz | Ceramic Patch | 1 | - | -6.7dB | 4.63dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|
TG.10R.A.0113RF ANT 750MHZ/892MHZ WHIP TILT Taoglas Limited |
106 |
|
数据手册 |
Triton | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.4GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Whip, Tilt | 5 | - | - | -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|

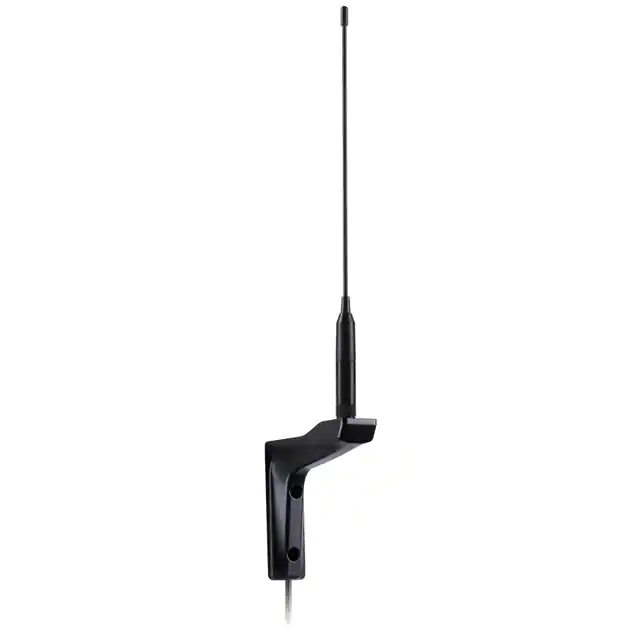

WM.43.A.305111CYCLOPS 433MHZ WALL MOUNT FLEXIB Taoglas Limited |
161 |
|
数据手册 |
- | Bag | Active | WiFi | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -10dB | 0.18dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Bracket Mount | 12.756" (324.00mm) | Wi-Fi |
