射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

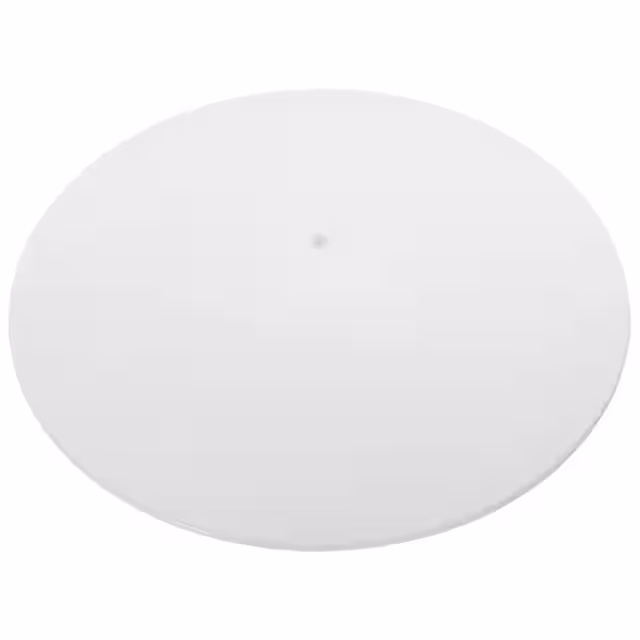

RI.09.A.0121ROADMARKER-ADHESIVE 902-928MHZ S Taoglas Limited |
197 |
|
数据手册 |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | - | - | 1.74dBi, 3.15dBi, 1.59dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.693" (17.60mm) | ISM |
|
TL.10.1HH11RF ANT 700MHZ/850MHZ DOME NMO ML Taoglas Limited |
1,642 |
|
数据手册 |
Shockwave | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 8 | - | - | -1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi | - | - | NMO Male | IP67, IP69K | - | - | Base Mount | 3.343" (84.90mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
A.40.A.301111RF ANT 1.6GHZ DOME SMA MALE PAN Taoglas Limited |
3,986 |
|
数据手册 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 2 | -10dB | 27dB | - | Filter | SMA Male | IP65 | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
TLS.01.1F21RF ANT 829MHZ/1.575GHZ WHIP STR Taoglas Limited |
852 |
|
数据手册 |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.7dB | 100 W | - | N Type Female | IP69K | - | - | Base Mount | 3.134" (79.60mm) | GPS, LTE |
|
WS.03.B.305151HERCULES WI-FI EXTERNAL ANTENNA Taoglas Limited |
136 |
|
数据手册 |
Hercules | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | - | - | 2.7dBi, 3.2dBi, 4.3dBi | 10 W | Cable - 5m | RP-SMA Male | - | - | - | Panel Mount | 1.142" (29.00mm) | Wi-Fi |
|
AGPSF.36C.07.0100CACTIVE GPS L1/L2 LOW PROFILE STA Taoglas Limited |
466 |
|
数据手册 |
- | Tray | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.2267GHz, 1.575GHz | 1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -10dB, -10dB | 2.73dBi, 3.57dBi | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.433" (11.00mm) | GPS |
|
WS.02.B.205111RF ANT 2.4GHZ DOME SMA ML PNL MT Taoglas Limited |
219 |
|
数据手册 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.38 | -15.86dB | 4.42dBi | - | Cable - 2m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AA.178.301111MAGMAX2 ACTIVE GPS L1/L5 MAG MOU Taoglas Limited |
2,106 |
|
数据手册 |
Magma X | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Module | 2 | 2 | 10dB | 1.1dBi, 1.36dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | GNSS |
|
AA.175.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE Taoglas Limited |
386 |
|
数据手册 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.575GHz, 1.602GHz | 1.2257GHz ~ 1.2277GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Module | 3 | 2 | -10dB | 3.78dBi, 2.22dBi, 2.05dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.669" (17.00mm) | GLONASS, GNSS, GPS |
|

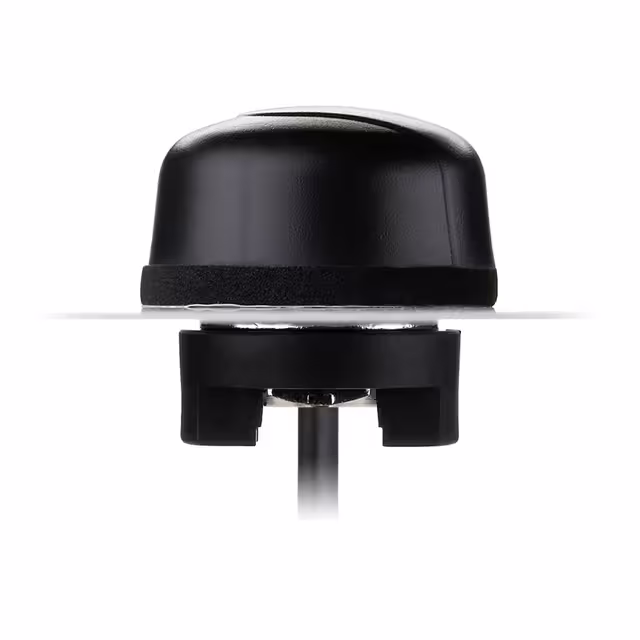

A.41.A.301111RF ANT 1.575/1.602GHZ DOM SMA 3M Taoglas Limited |
4,174 |
|
数据手册 |
Hercules | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Dome | 2 | 2 | - | 28dB | - | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | GLONASS, GPS |
