射频天线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X1005246-4GA1SA10A1LTE ANTENNA KYOCERA AVX |
173 |
|
数据手册 |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 3 | 1.5, 1.8, 2 | - | 2.8dBi, 3.1dBi, 2.7dBi | - | Cable - 1m | SMA Male | IPX7 | - | - | Adhesive | 0.264" (6.70mm) | LTE |
|
A1001312AUTOMOTIVE WI-FI/BLUETOOTH/ZIGBE KYOCERA AVX |
3,881 |
|
数据手册 |
A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 7.25GHz | 2.4GHz ~ 2.485GHz, 6GHz ~ 8.5GHz | Chip | 2 | 1.8, 2 | - | 1.88dBi, 4.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, UWB, Wi-Fi, ZigBee |
|

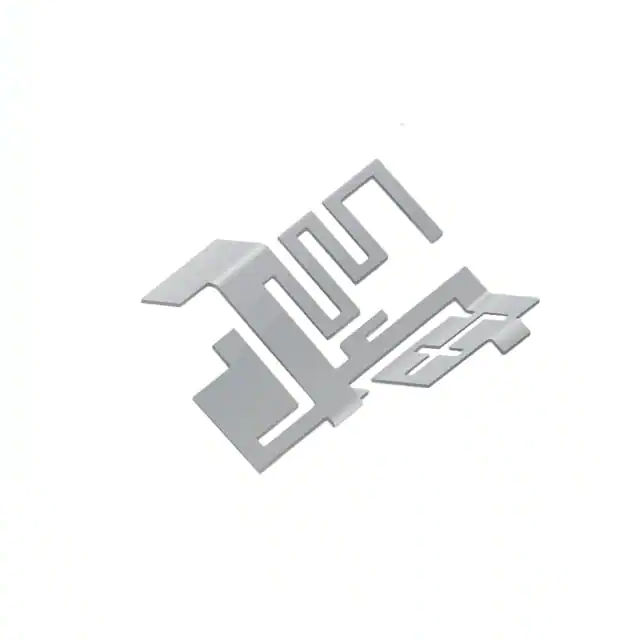

1002298ANTENNA WLAN KYOCERA AVX |
373 |
|
数据手册 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.4875GHz, 5.875GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz, 5.825GHz ~ 5.925GHz | Stamped Metal | 3 | 2 | - | 3.6dBi, 5.1dBi, 3.8dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.415" (10.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
A1000146AUTOMOTIVE WI-FI 6 & WI-FI 6E ST KYOCERA AVX |
1,161 |
|
数据手册 |
A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4425GHz, 3.55GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 4 | 2, 2.2 | - | 1.7dBi, 4.21dBi, 4.1dBi, 3.8dBi | 0.5 W | - | Solder | - | - | - | Surface Mount | 0.169" (4.30mm) | Bluetooth, Wi-Fi, Wi-Fi 6, Wi-Fi 6E, WLAN, ZigBee |
|
1002436EMBEDDED ANTENNA, LTE, PCB, VERT KYOCERA AVX |
2,712 |
|
数据手册 |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.955GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | PCB Trace | 3 | 2.5, 3.5 | - | 2.3dBi, 3.2dBi, 3dBi | 2 W | - | Solder | - | - | - | Through Hole | 0.063" (1.60mm) | Cat-M, Cellular, GSM, LPWA, LTE, LTE-M, LoRa, NB-IoT, Sigfox |
|
1004369PT-AA10L0135ANTENNA ASSY, WLANA PT 135 KYOCERA AVX |
889 |
|
数据手册 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 3.7dBi | 2 W | Cable - 135mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

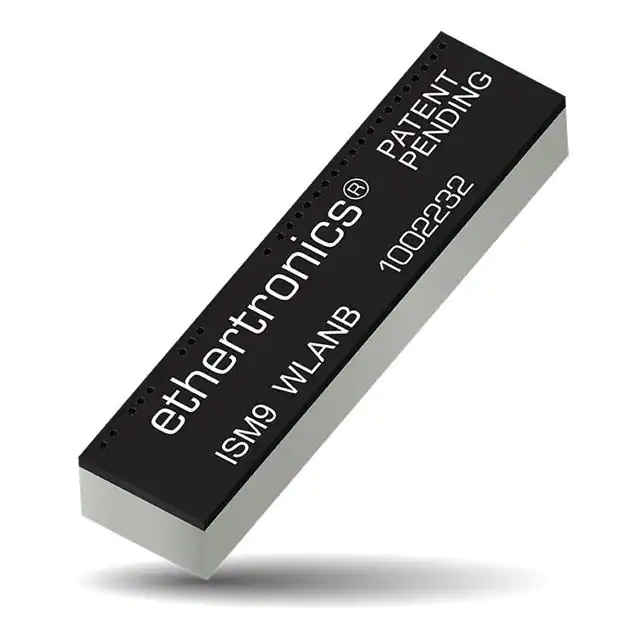

1002232ANTENNA PCB, ISM9 WLAMB KYOCERA AVX |
254 |
|
数据手册 |
- | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.4GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Chip | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | ISM, LoRa, Sigfox, WLAN |
|
WBP3015W08-U100D3B0AANTENNA ASSY, WIFI RIGHT, 100, D KYOCERA AVX |
980 |
|
数据手册 |
W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
W3P35X8F04-U100D3B0TANTENNA ASSY, WLAN 04 100 F KYOCERA AVX |
975 |
|
数据手册 |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1P35X8F04-U100D3B0TANTENNA ASSY, WLAN1 04 100 D0230 KYOCERA AVX |
281 |
|
数据手册 |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
