电阻器网络，阵列
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路类型 | 电阻（欧姆） | 容差 | 电阻器数量 | 电阻匹配比 | 电阻比漂移 | 引脚数量 | 每个元件的功率 | 温度系数 | 工作温度 | 等级 | 认证 | 应用 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

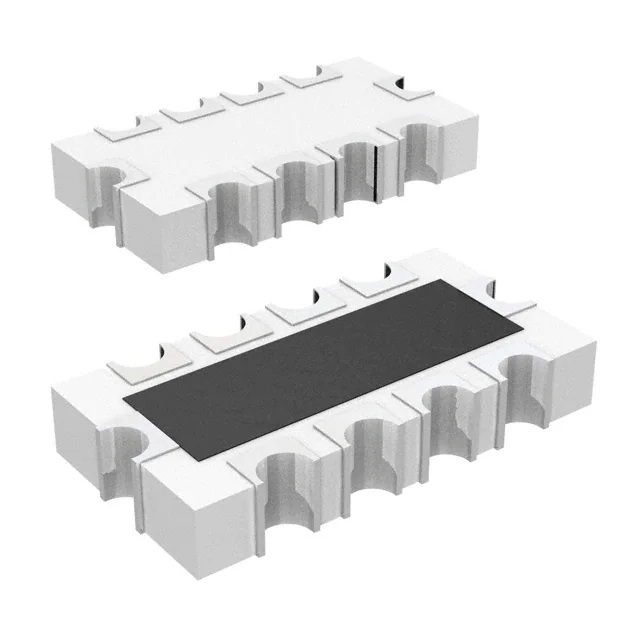

EXB-E10C473JRES ARRAY 8 RES 47K OHM 1608 |
12,000 |
|
数据手册 |
EXB | 1608, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 47k | ±5% | 8 | - | - | 10 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1608 | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.026" (0.65mm) |
|
|
EXB-E10C104JRES ARRAY 8 RES 100K OHM 1608 |
8,516 |
|
数据手册 |
EXB | 1608, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 100k | ±5% | 8 | - | - | 10 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1608 | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.026" (0.65mm) |
|
|
EXB-E10C332JRES ARRAY 8 RES 3.3K OHM 1608 |
5,396 |
|
数据手册 |
EXB | 1608, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 3.3k | ±5% | 8 | - | - | 10 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1608 | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.026" (0.65mm) |
|
4609X-101-681LFRES ARRAY 8 RES 680 OHM 9SIP |
3,737 |
|
数据手册 |
4600X | 9-SIP | Bulk | Active | Bussed | 680 | ±2% | 8 | - | - | 9 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 9-SIP | 0.898" L x 0.098" W (22.81mm x 2.49mm) | 0.200" (5.08mm) |
|
4610X-102-101LFRES ARRAY 5 RES 100 OHM 10SIP |
2,845 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Isolated | 100 | ±2% | 5 | - | - | 10 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
|
|
4610X-101-151LFRES ARRAY 9 RES 150 OHM 10SIP |
2,794 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Bussed | 150 | ±2% | 9 | - | - | 10 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
|
|
4610X-102-470LFRES ARRAY 5 RES 47 OHM 10SIP |
1,550 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Isolated | 47 | ±1Ohm | 5 | - | - | 10 | 300mW | ±250ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
|
|
4610X-102-220LFRES ARRAY 5 RES 22 OHM 10SIP |
1,535 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Isolated | 22 | ±1Ohm | 5 | - | - | 10 | 300mW | ±250ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
|
|
4610X-101-271LFRES ARRAY 9 RES 270 OHM 10SIP |
2,893 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Bussed | 270 | ±2% | 9 | - | - | 10 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
|

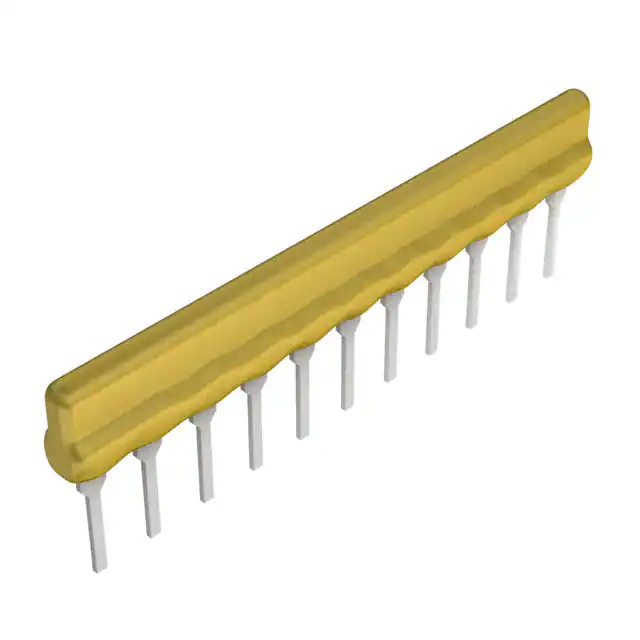

4611X-101-472LFRES ARRAY 10 RES 4.7K OHM 11SIP |
1,744 |
|
数据手册 |
4600X | 11-SIP | Bulk | Active | Bussed | 4.7k | ±2% | 10 | - | - | 11 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 11-SIP | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 0.200" (5.08mm) |
|
|
4611X-101-103LFRES ARRAY 10 RES 10K OHM 11SIP |
1,302 |
|
数据手册 |
4600X | 11-SIP | Bulk | Active | Bussed | 10k | ±2% | 10 | - | - | 11 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 11-SIP | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 0.200" (5.08mm) |
|
745C101102JPRES ARRAY 8 RES 1K OHM 2512 |
22,382 |
|
数据手册 |
745 | 2512 (6432 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 1k | ±5% | 8 | - | - | 10 | 63mW | ±250ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.028" (0.70mm) |
|
|
4611X-101-102LFRES ARRAY 10 RES 1K OHM 11SIP |
1,556 |
|
数据手册 |
4600X | 11-SIP | Bulk | Active | Bussed | 1k | ±2% | 10 | - | - | 11 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 11-SIP | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 0.200" (5.08mm) |
|
|
745C101104JPRES ARRAY 8 RES 100K OHM 2512 |
24,250 |
|
数据手册 |
745 | 2512 (6432 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 100k | ±5% | 8 | - | - | 10 | 63mW | ±250ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.028" (0.70mm) |
|
4606M-101-103LFRES ARRAY 5 RES 10K OHM 6SIP |
7,432 |
|
数据手册 |
4600M | 6-SIP | Bulk | Active | Bussed | 10k | ±2% | 5 | - | 50ppm/°C | 6 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.250" (6.35mm) |
|
|
745C101473JPRES ARRAY 8 RES 47K OHM 2512 |
16,039 |
|
数据手册 |
745 | 2512 (6432 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 47k | ±5% | 8 | - | - | 10 | 63mW | ±250ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.028" (0.70mm) |
|

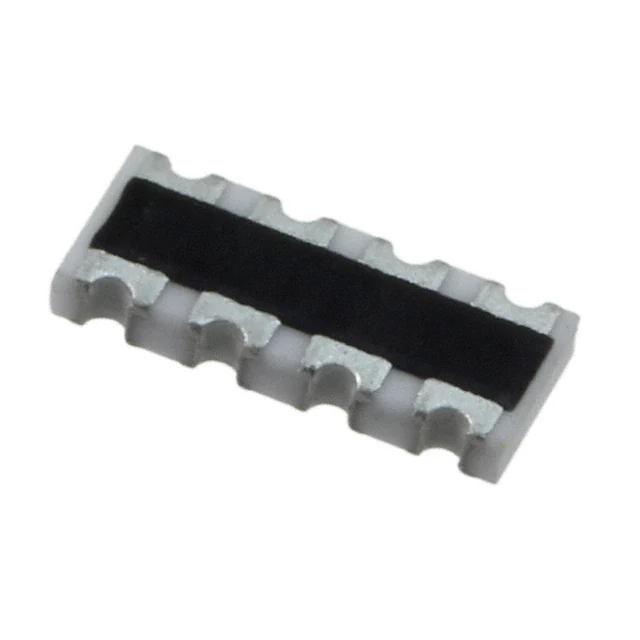

EXB-S8V472JRES ARRAY 4 RES 4.7K OHM 2009 |
49,395 |
|
数据手册 |
EXB | 2009, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 4.7k | ±5% | 4 | - | - | 8 | 100mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 2009 | 0.200" L x 0.087" W (5.08mm x 2.20mm) | 0.035" (0.90mm) |
|
|
EXB-S8V101JRES ARRAY 4 RES 100 OHM 2009 |
4,553 |
|
数据手册 |
EXB | 2009, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100 | ±5% | 4 | - | - | 8 | 100mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 2009 | 0.200" L x 0.087" W (5.08mm x 2.20mm) | 0.035" (0.90mm) |
|
|
EXB-S8V102JRES ARRAY 1K OHM 4 RES 2009 |
3,079 |
|
数据手册 |
EXB | 2009, Concave, Long Side Terminals | Bulk | Active | Isolated | 1k | ±5% | 4 | - | - | 8 | 100mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 2009 | 0.200" L x 0.087" W (5.08mm x 2.20mm) | 0.035" (0.90mm) |
|
|
4610X-104-221/331LRES NTWRK 16 RES MULT OHM 10SIP |
2,498 |
|
数据手册 |
4600X | 10-SIP | Bulk | Active | Dual Terminator | 220, 330 | ±2% | 16 | - | - | 10 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.200" (5.08mm) |
