干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE721A0550RELAY REED SPST 500MA 5V |
2,485 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721A1250RELAY REED SPST 500MA 12V |
3,124 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721A2440RELAY REED SPST 500MA 24V |
3,163 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721C0550RELAY REED SPDT 250MA 5V |
1,443 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721C1220RELAY REED SPDT 250MA 12V |
4,729 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721C2440RELAY REED SPDT 250MA 24V |
2,314 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
HE3671A0500RELAY REED SPST 500MA 5V |
4,386 |
|
数据手册 |
HE3600 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE3671A1200RELAY REED SPST 500MA 12V |
1,987 |
|
数据手册 |
HE3600 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE3321A0540RELAY REED SPST 500MA 5V |
3,779 |
|
数据手册 |
HE3300 | Bag | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE3321A0440RELAY REED SPST 500MA 5V |
3,934 |
|
数据手册 |
HE3300 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|

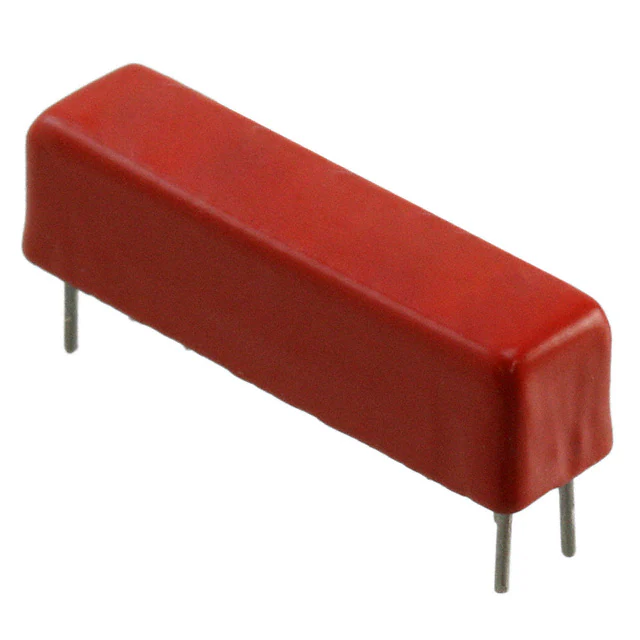

2274-05-021RELAY REED SPST 500MA 5V |
3,333 |
|
数据手册 |
2270 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 125°C | - |
|
SIL12-1A31-71MRELAY REED SPST 2A 12V |
3,862 |
|
数据手册 |
SIL | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.2 ms | 1 ms | -20°C ~ 55°C | - |
|
DIP05-1C90-51FRELAY REED SPDT 250MA 5V |
4,313 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
3520-05-911RELAY REED DPST 1A 5V |
4,977 |
|
数据手册 |
3500 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
HE721R1200RELAY REED SPDT 250MA 12V |
2,949 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721R2400RELAY REED SPDT 250MA 24V |
2,814 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
9201-12-00TRRELAY REED SPST 500MA 12V |
4,224 |
|
数据手册 |
9200 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
1340-0251RELAY REED HV CUSTOM |
3,677 |
|
数据手册 |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

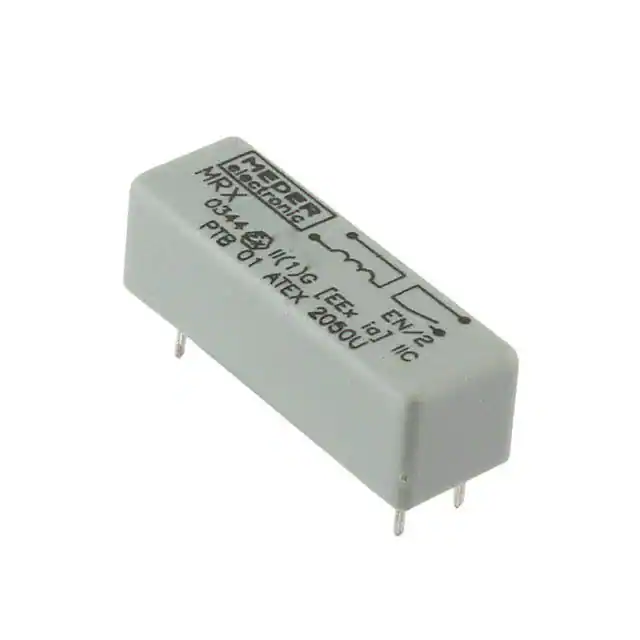

MRX24-1A71REED RELAY SPST-NO 24V ATEX PLAS |
4,714 |
|
数据手册 |
MRX | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | 18 VDC | 3.5 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
H12-1A83RELAY REED 3A 12V |
3,541 |
|
数据手册 |
H | Bag | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 52.2 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
