干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2362-05-000RELAY REED DPDT 250MA 5V Coto Technology |
3,412 |
|
数据手册 |
2362 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 28.6 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
|
|
3502-05-511RELAY REED DPST 500MA 5V Coto Technology |
3,471 |
|
数据手册 |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1000RELAY REED SPST 1A 12V Coto Technology |
2,117 |
|
数据手册 |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|

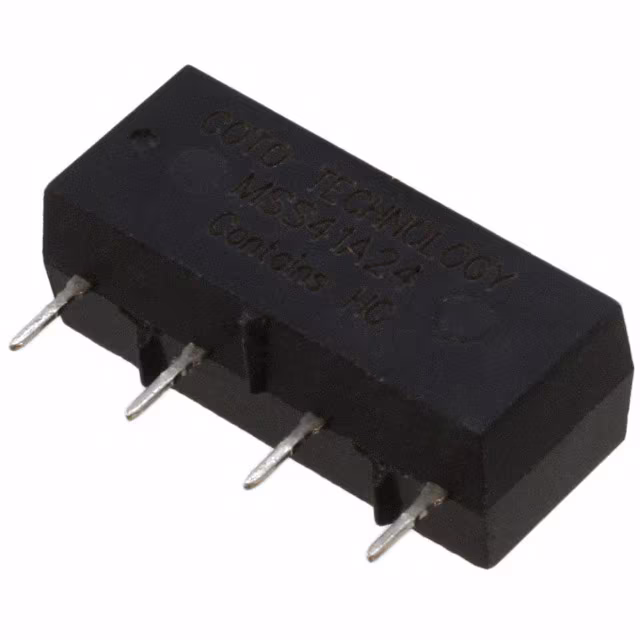

MSS41A24RELAY REED SPST 2A 24V Coto Technology |
3,174 |
|
数据手册 |
MSS4 | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1.75 ms | 1.5 ms | -40°C ~ 105°C | - |
|
|
5000-0388RELAY REED HV SPST CUSTOM Coto Technology |
1,925 |
|
数据手册 |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MVS21A24BRELAY REED SPST 2A 24V Coto Technology |
4,482 |
|
数据手册 |
MVS2 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2.5 ms | 2.5 ms | -40°C ~ 105°C | - |
|
5503-12-1RELAY REED SPST 3A 12V Coto Technology |
3,214 |
|
数据手册 |
5500 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 3500VAC, 3500VDC - Max | 69 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
1240-12-2104RELAY COTO STANDARD CD REV.A BOM Coto Technology |
2,726 |
|
数据手册 |
1240 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 19.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 100 µs | -20°C ~ 85°C | - |
|
|
7202-12-1001RELAY REED DPST 1A 12V Coto Technology |
2,992 |
|
数据手册 |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
5502-05-1SPDT REED RELAY POLARIZED 5V DC Coto Technology |
3,676 |
|
数据手册 |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
