干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

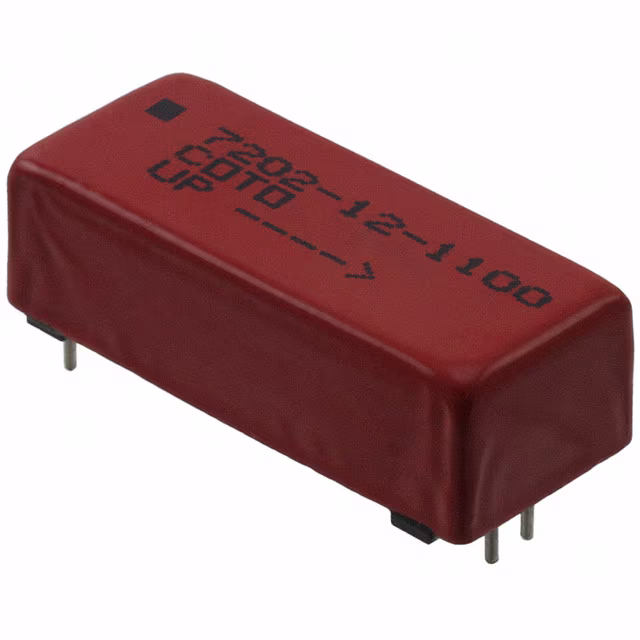

7202-12-1100RELAY REED DPST 1A 12V Coto Technology |
4,637 |
|
数据手册 |
7000 | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
9401-05-20RELAY REED SPST 500MA 5V Coto Technology |
2,652 |
|
数据手册 |
9400 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | J Lead | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8L41-12-001RELAY REED SPDT 250MA 12V Coto Technology |
4,805 |
|
数据手册 |
8L | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
7302-24-1010RELAY REED DPST 500MA 24V Coto Technology |
3,973 |
|
数据手册 |
7000 | Tube | Not For New Designs | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
7143-05-1100RELAY REED 3PDT 250MA 5V Coto Technology |
4,472 |
|
数据手册 |
7000 | Bulk | Active | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
9007-05-10RELAY REED SPST 500MA 5V Coto Technology |
1,403 |
|
数据手册 |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9007-12-10RELAY REED SPST 500MA 12V Coto Technology |
2,676 |
|
数据手册 |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9007-05-11RELAY REED SPST 500MA 5V Coto Technology |
3,175 |
|
数据手册 |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9007-24-10RELAY REED SPST 500MA 24V Coto Technology |
1,955 |
|
数据手册 |
9007, Spartan | Tube | Not For New Designs | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9091-12-00RELAY REED SPST 500MA 12V Coto Technology |
2,408 |
|
数据手册 |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
