干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRE12-2A85-PHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
119 |
|
数据手册 |
MRE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|

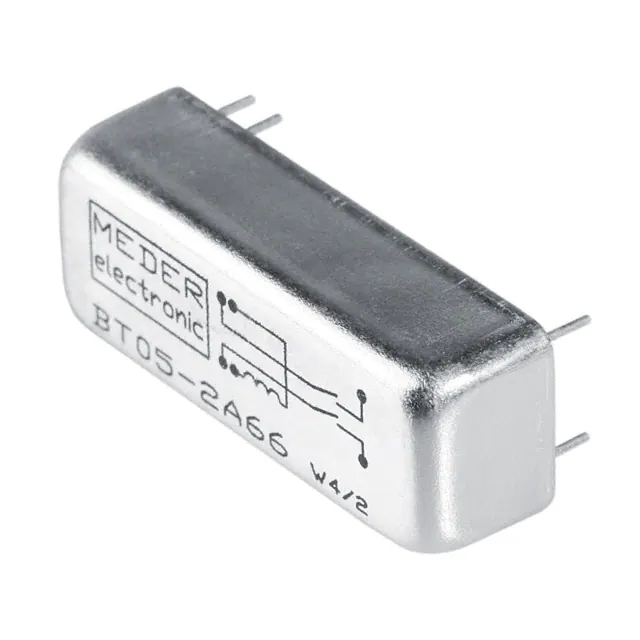

BT05-2A66RELAY REED DPST 500MA 5V Standex-Meder Electronics |
273 |
|
数据手册 |
BT | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
HE12-1A83-02RELAY REED SPST 3A 12V Standex-Meder Electronics |
4,350 |
|
数据手册 |
HE | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
HE24-1A69-03HIGH VOLTAGE REED RELAY. FORM 1A Standex-Meder Electronics |
3,768 |
|
数据手册 |
HE | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 51.6 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
H24-1B83REED RELAY Standex-Meder Electronics |
3,996 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SIL05-1A75-71DRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
1,568 |
|
数据手册 |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-1C90-51LRELAY REED SPDT 500MA 24V Standex-Meder Electronics |
1,826 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
MS12-1A87-75DRELAY REED SPST 500MA 12V Standex-Meder Electronics |
3,533 |
|
数据手册 |
MS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP12-2A72-21LRELAY REED DPST 1A 12V Standex-Meder Electronics |
1,562 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP24-2A72-21LRELAY REED DPST 1A 24V Standex-Meder Electronics |
2,686 |
|
数据手册 |
DIP | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
