干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP05-2A66-500-220RELAY REED DPST 500MA 5V Standex-Meder Electronics |
4,100 |
|
数据手册 |
NP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
NP05-1C90-500-250RELAY REED SPDT 250MA 5V Standex-Meder Electronics |
2,513 |
|
数据手册 |
NP | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|

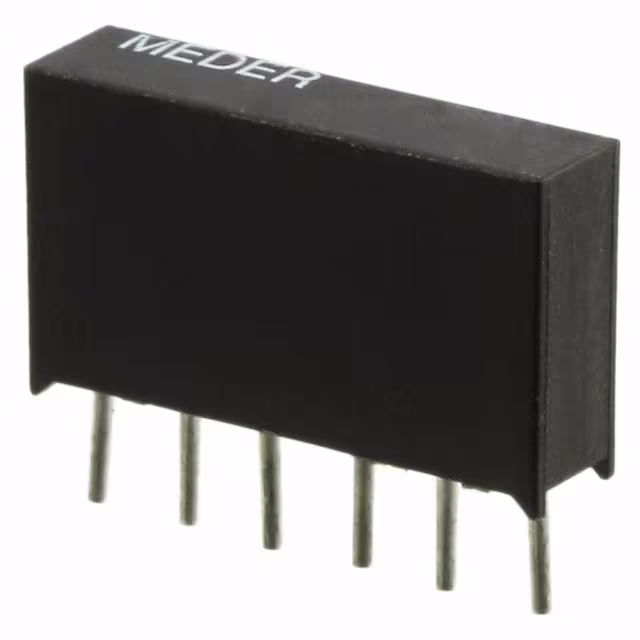

MS05-2A87-78LRELAY REED DPST 500MA 5V Standex-Meder Electronics |
1,918 |
|
数据手册 |
MS | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
BT12-2A66LOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
4,518 |
|
数据手册 |
BT | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 0.5 ms | 100 µs | -20°C ~ 85°C | - |
|
|
BT05-2A85-MLOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
3,766 |
|
数据手册 |
BT | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 1 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
BT12-2A85-MLOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
3,143 |
|
数据手册 |
BT | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 4.3 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 1.1 ms | 0.5 ms | -20°C ~ 70°C | - |
|
HE24-1C22RELAY REED SPDT 3A 24V Standex-Meder Electronics |
2,122 |
|
数据手册 |
HE | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 7500VAC, 7500VDC - Max | - | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|

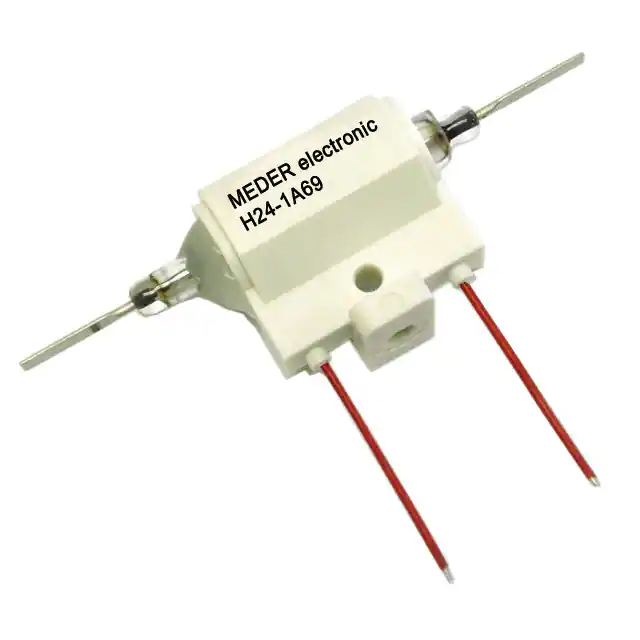

H24-1A69RELAY REED SPST 3A 24V Standex-Meder Electronics |
3,562 |
|
数据手册 |
H | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 16.8 VDC | 3.6 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V Standex-Meder Electronics |
4,203 |
|
数据手册 |
MS | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 65°C | - |
|
|
HE05-1A83-02RELAY REED SPST 3A 5V Standex-Meder Electronics |
1,656 |
|
数据手册 |
HE | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 100 mA | Non Latching | - | PC Pin | - | 4 VDC | 0.75 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
