干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE721C1210RELAY REED SPDT 250MA 12V |
4,008 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
9091-05-11RELAY REED SPST 500MA 5V |
13,522 |
|
数据手册 |
9091 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
CRR05-1ARELAY REED SPST 500MA 5V |
17,329 |
|
数据手册 |
CRR | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | - |
|
9012-05-10RELAY REED SPST 500MA 5V |
21,838 |
|
数据手册 |
9012 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
9012-12-10RELAY REED SPST 500MA 12V |
8,389 |
|
数据手册 |
9012 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9401-05-00RELAY REED SPST 500MA 5V |
456 |
|
数据手册 |
9400 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | Gull Wing | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
UMS05-1A80-75DRELAY REED SPST 500MA 5V |
5,324 |
|
数据手册 |
UMS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|

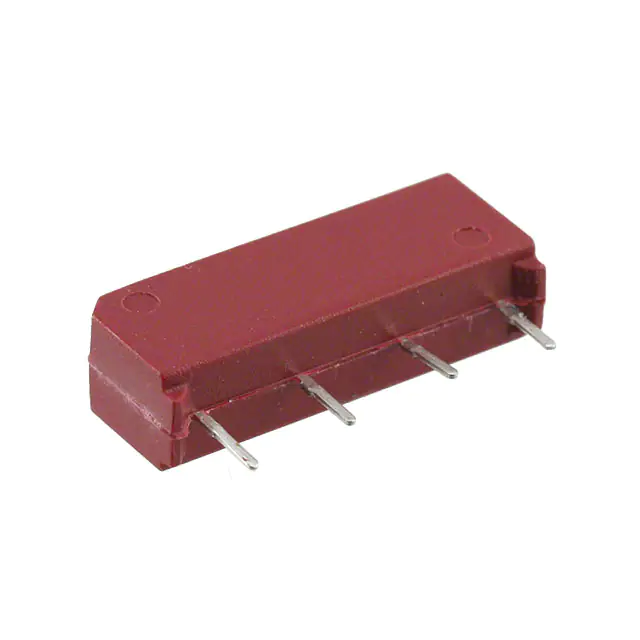

9001-05-02RELAY REED SPST 500MA 5V |
20,556 |
|
数据手册 |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9011-05-10RELAY REED SPST 250MA 5V |
9,950 |
|
数据手册 |
9011 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
8L61-05-001RELAY REED SPDT 250MA 5V |
4,640 |
|
数据手册 |
8L | Bulk | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

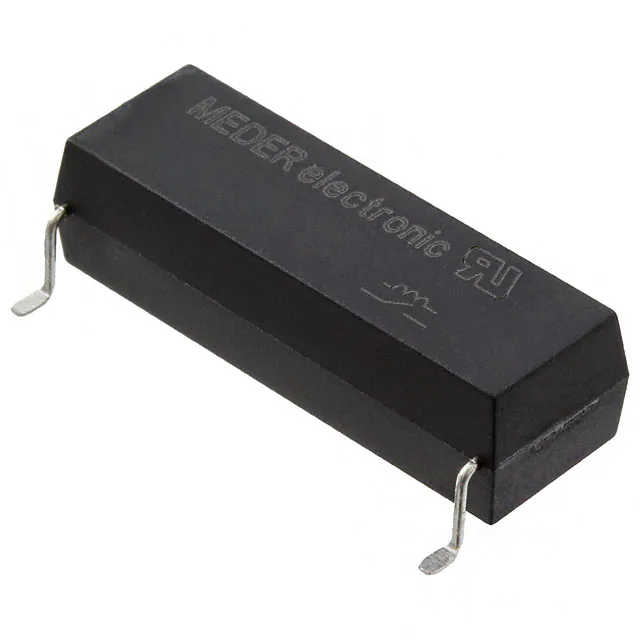

KT12-1A-40L-SMDREED RELAY 1 FORM A 12V SMD |
1,596 |
|
数据手册 |
KT | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | Gull Wing | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C | - |
|
9104-12-10RELAY REED SPST 500MA 12V |
26,614 |
|
数据手册 |
9104 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
9104-05-10RELAY REED SPST 500MA 5V |
5,986 |
|
数据手册 |
9104 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
SHV12-1A85-78L3KRELAY REED SPST 1A 12V |
2,792 |
|
数据手册 |
SHV | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|

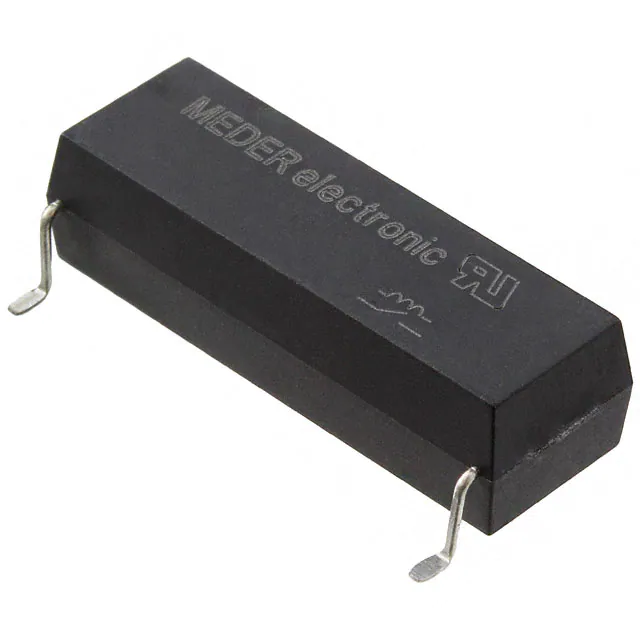

KT24-1A-40L-SMDREED RELAY 1 FORM A 24V SMD |
1,170 |
|
数据手册 |
KT | Tape & Reel (TR) | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C | - |
|
KT05-1A-40L-SMDREED RELAY 1 FORM A 5V SMD |
5,890 |
|
数据手册 |
KT | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | Gull Wing | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | - |
|
|
HE721R0510RELAY REED SPDT 250MA 5V |
2,359 |
|
数据手册 |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|

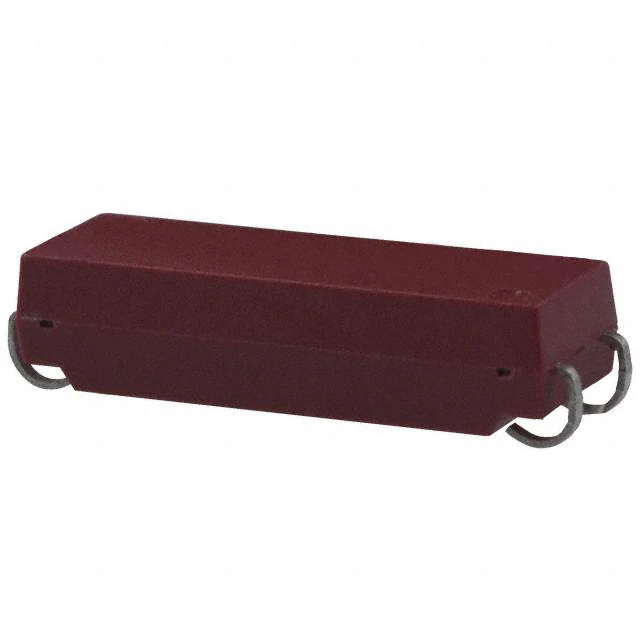

9201-05-20RELAY REED SPST 500MA 5V |
2,190 |
|
数据手册 |
9200 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | J Lead | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|

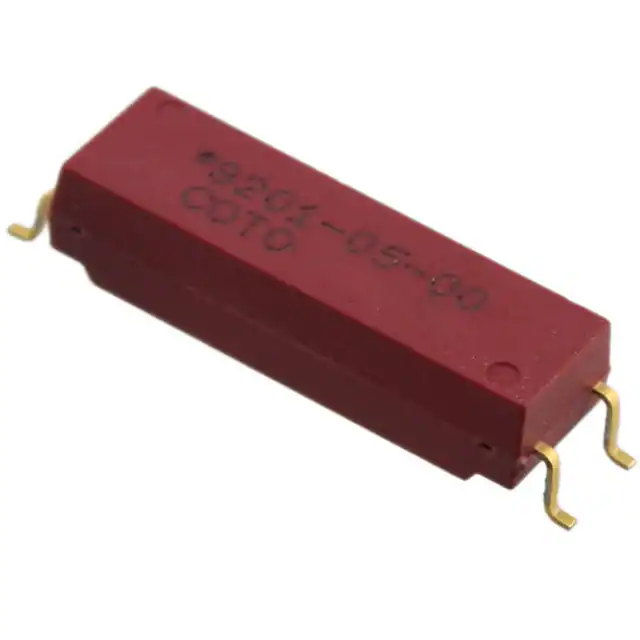

9201-05-00RELAY REED SPST 500MA 5V |
1,306 |
|
数据手册 |
9200 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|

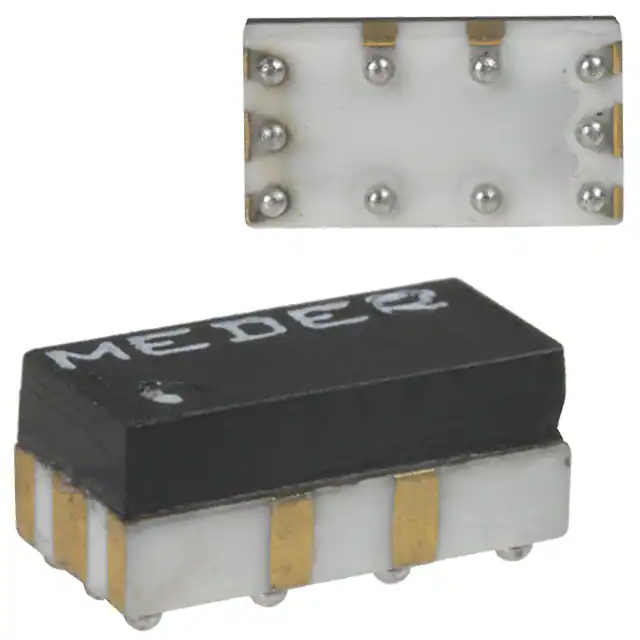

CRR05-1ASRELAY REED SPST 500MA 5V |
3,598 |
|
数据手册 |
CRR | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | - |
